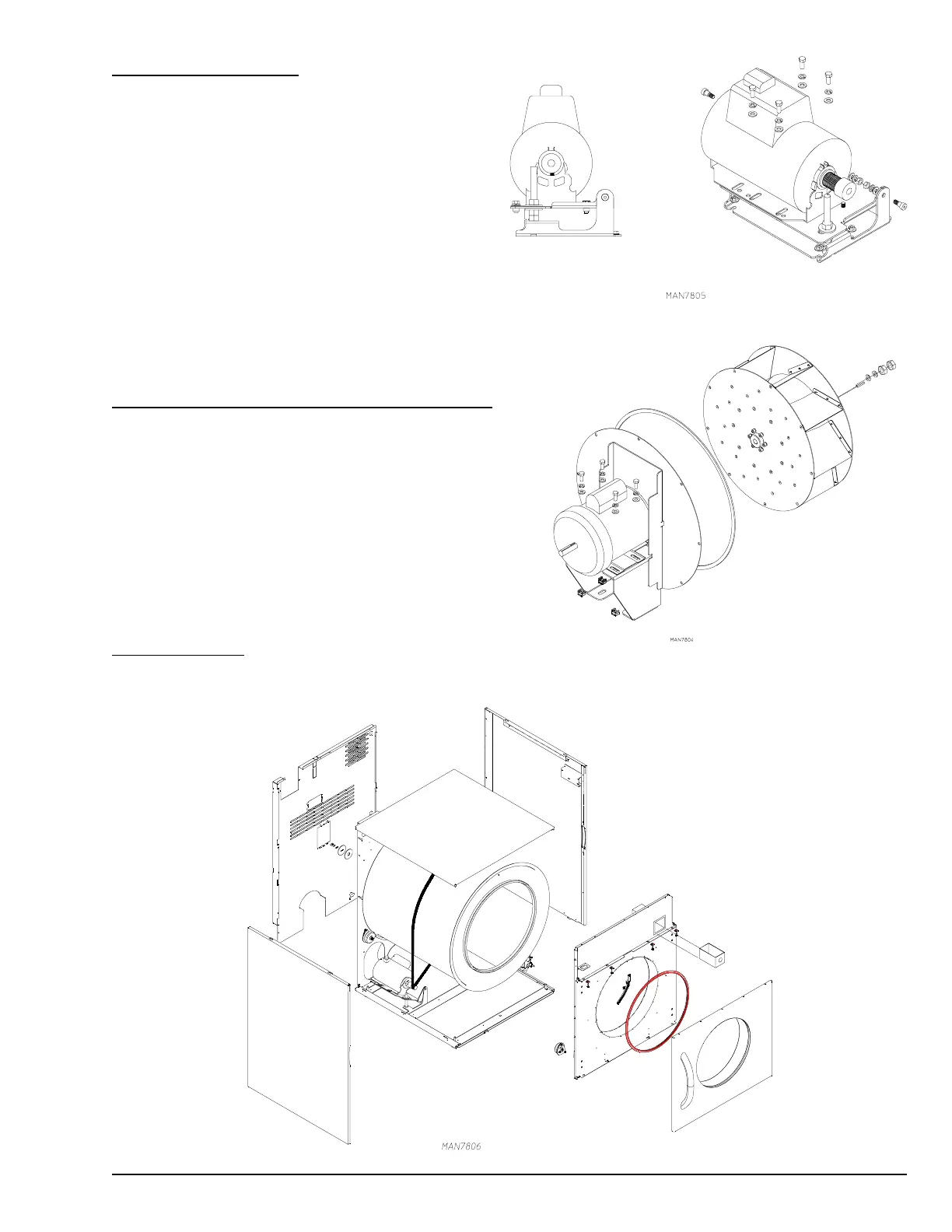

D. DRIVE MOTOR
The T.E.F.C. drive motor is located in the left side of the
machine (viewing from the front) of the dryer. It sits on an
adjustable base so that the motor can be easily adjusted
for belt tension adjustment. The drive motor is a 3/4 HP
motor and operates on 115 to 230 volts, 50/60 Hz.
E. BLOWER MOTOR AND IMPELLOR
(Viewing from the front of the dryer.) The blower motor is
in the center of the dryer in the rear. The impellor is a
backward curved paddle wheel which is directly connected
to the shaft of the blower motor.
F. TUMBLER
The tumbler consists of four ribs along with a front and back, which are forced together as an assembly.
