B. GLO-BAR CONTROLS

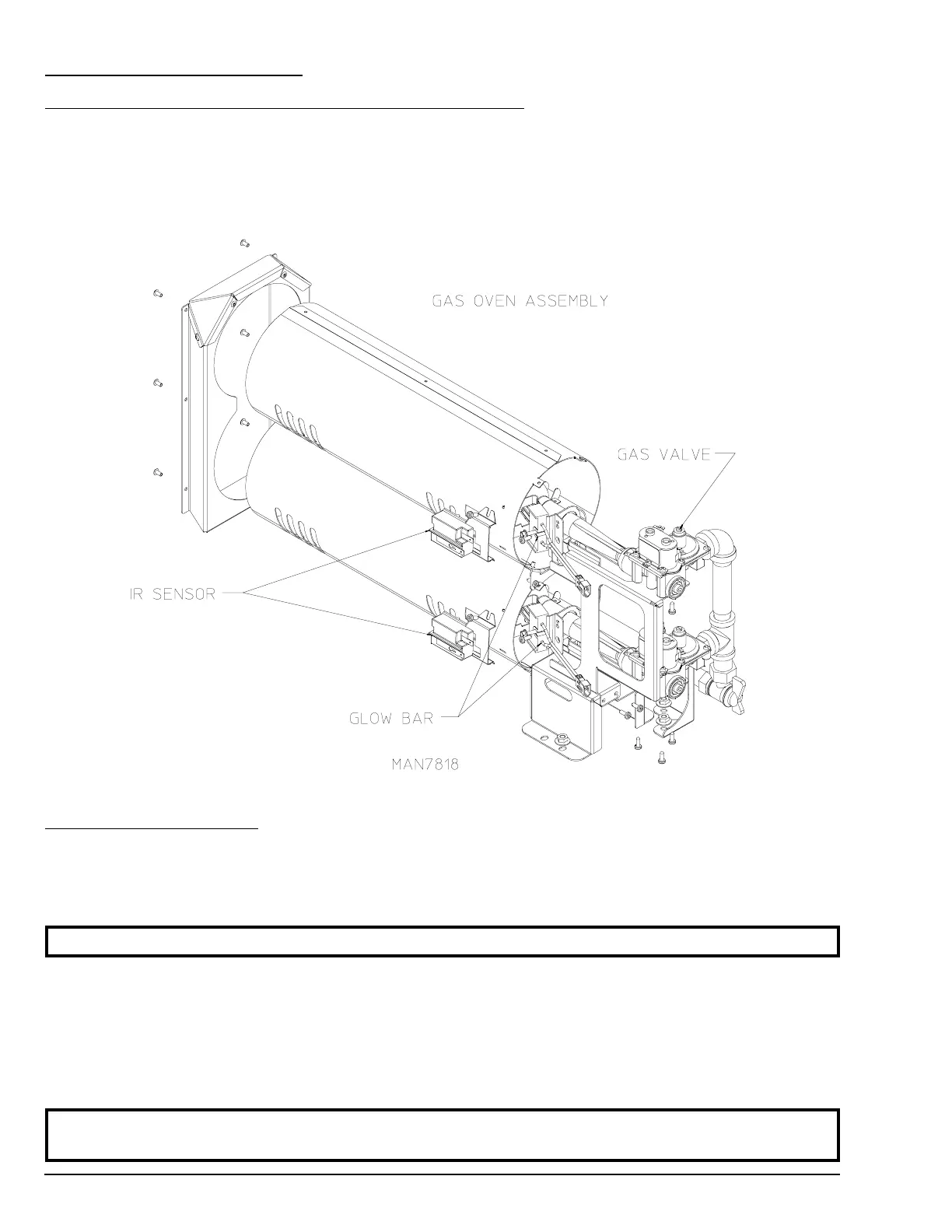

To Remove Globar (refer to the burner illustration)
1. Discontinue electrical power to the dryer.
2. Disconnect Glo-Bar connector.
3. Disassemble ignitor from burner by removing the single ignitor mounting screw.
4. Reverse procedure for installing new Glo-Bar ignitor.
To Replace Gas Valve
1. Discontinue electrical power to the dryer.
2. Close shutoff valve(s) in gas supply line.
3. Disconnect gas valve wiring.
NOTE: Identify location of each wire for correct reinstallation.
4. Break union connection before gas valve.
5. Loosen and remove the two T-20 Torx screws securing pipe brackets to burner.
6. Remove gas valve/manifold assembly from dryer.
7. Remove valve mounting bracket, manifold, and piping from gas valve.
8. Reverse procedure for installing new gas valve.
WARNING: Test all connections for leaks by brushing on a soapy water solution. NEVER TEST
FOR LEAKS WITH A FLAME.
