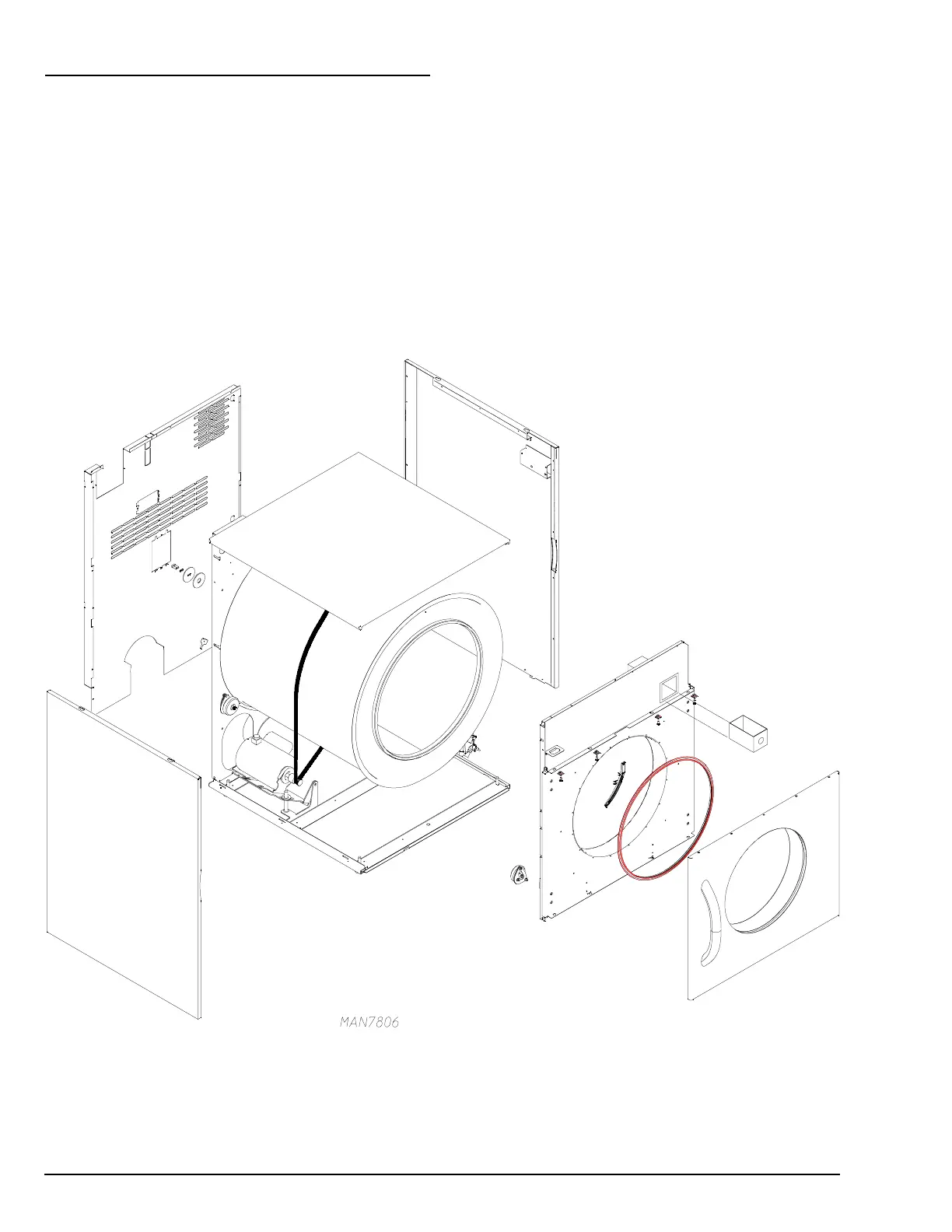

To Replace Tumbler or Tumbler Support
1. Discontinue electrical power to the dryer.
2. Follow procedure for removal of main door assembly.
3. Follow procedure for removal of front panel assembly.
4. Remove tumbler belt from motor.
5. Follow procedure for front panel removal.
6. Remove the three 1/4-20 x 1/2” Allen button head screw in center of basket.
7. Remove tumbler assembly from front of dryer.
8. Reassemble components onto dryer by reversing steps 2 through 7.
9. Reestablish electrical power to the dryer.
