823xxB Series Optical Sensor Operation Manual
4.1.1 How to Connect the Instrument
4-2
4.1.1 How to Connect the Instrument

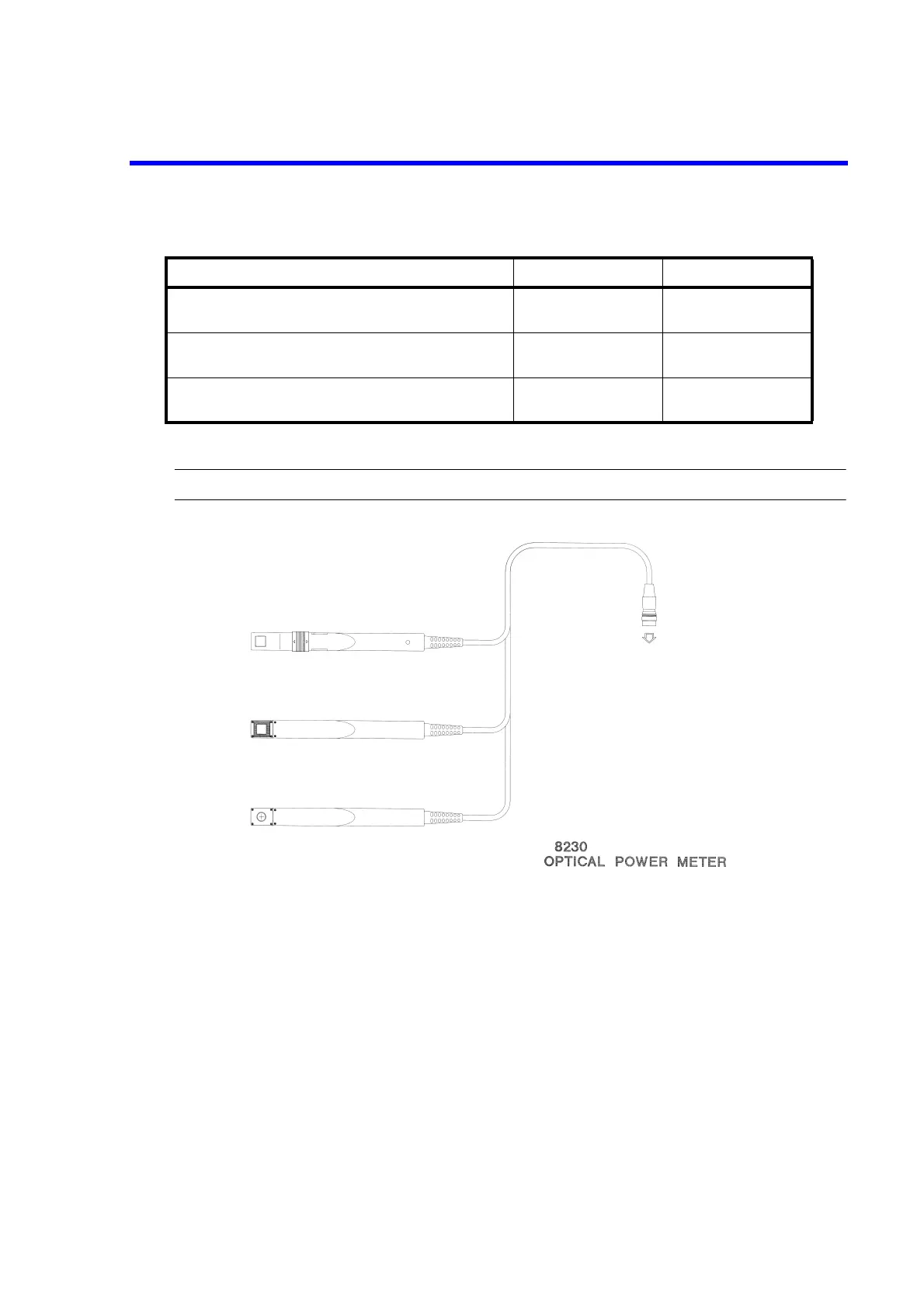

Figure 4-1 Connection Diagram for the Optical Sensor Performance Test
4.1.2 Test Point and Judgment Criteria
Table 4-2 Judgment Criteria for the Optical Sensor
Product
Light source
(Wavelength)
Light source output
(Set value)
Judgment Criteria
82311B/82321B 780 nm 1 mW Must be 1.6 % or less of
the read value of the stan-
dard optical power meter
82312B/82322B/
82314B/82314BW/82324B
405 nm
82313B/82323B 650 nm
Sensor for the standard
optical power meter
LD light source
Optical fiber
Sensor adaptor
Tested optical sensor
Optical power meter
8230/8250A
