Check the correct position of the drive
unit by loosening the clamping screw (4)

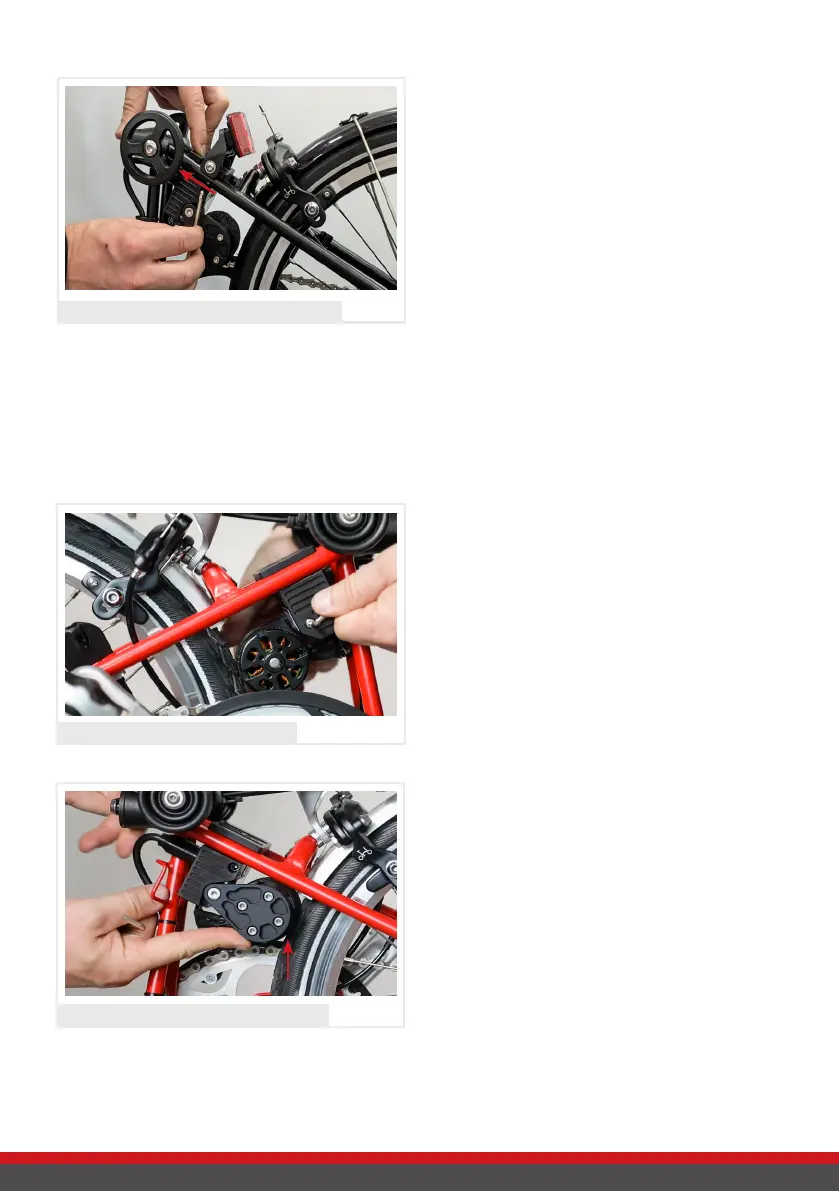

and sliding the drive unit towards the
seat tube. Tighten the clamping screw in
this position.
Sliding the drive unit towards the seat tube
1b. Correct Position of the Drive Unit at P & T Line Model
To adjust the freewheel setting, park the
bike on a flat surface; never upside down!
Loosen the freewheel setting screw (2) by
one turn so that the motor "drops down".
It is not necessary to remove the screw
completely.
The motor "drops" down. If this does not
happen, gently tap on the adjustment
screw.
Loosen the freewheel setting screw
Push the motor up till it touches the tire
and hand-tighten the setting screw (2) in
this position.
When released, the motor swings into its
final position. The distance between the
motor and the tyre should be 1-3 mm.
Push the motor up, till it touches the tire
2. Freewheel Setting (For All Models)
The freewheel setting screw (2) regulates the distance between the motor and the
tyre in the Off position. There is no friction between rear tyre and the motor and
therefore right engagement and disengagement of the motor is ensured.
