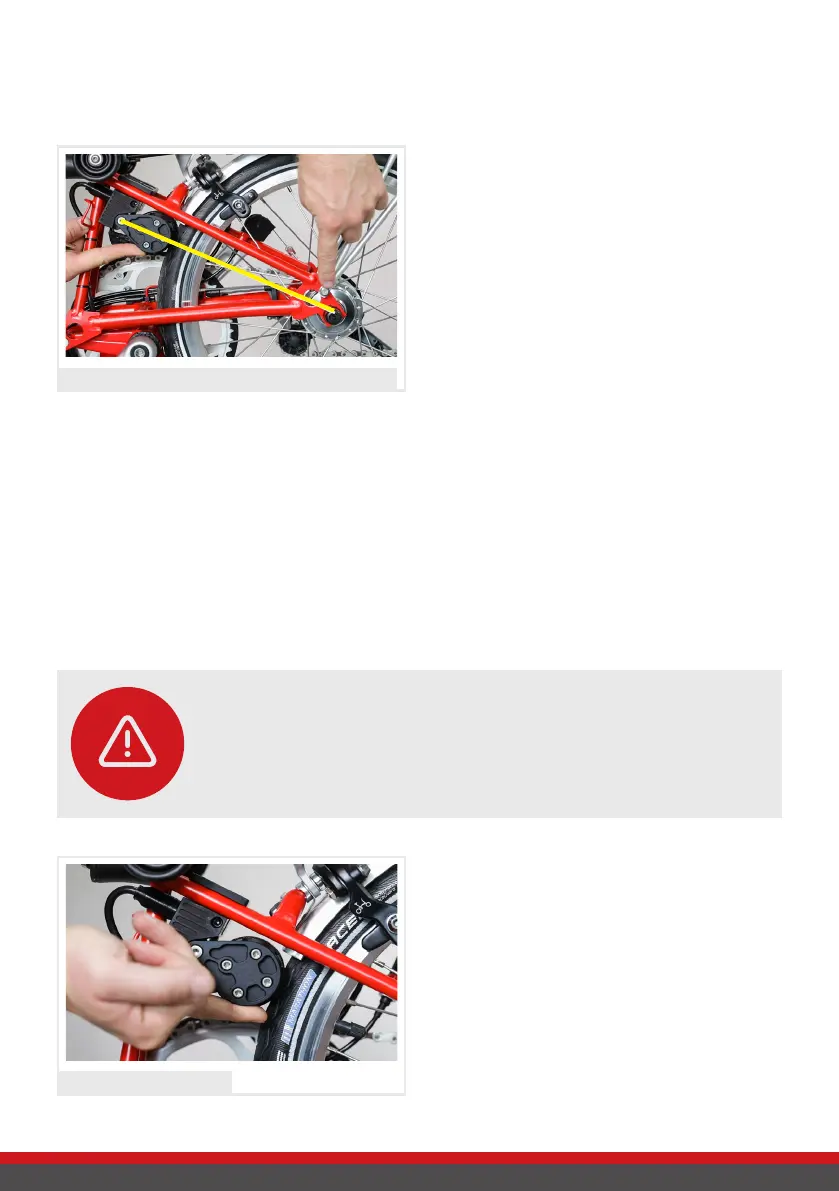

Seite 18
To check the setting, push the motor
gently into the upper stop and hold the
friction roller in this position.
Simultaneously rotate the rear wheel
backwards. The tyre MUST NOT slip!
The tire MUST NOT slip!
4. Setting Contact Pressure
Contact pressure is crucial to ensure consistent power transmission even in bad
weather conditions. It needs to be adjusted, especially if the tyre pressure changes,
in order to prevent increased wear. The contact pressure is regulated by the tyre
pressure and the positioning of the drive unit.
ATTENTION!
Check the contact pressure at regular intervals to prevent the rear
wheel from slipping and to avoid increased tyre wear. The motor
must not slip under any circumstances!
Push the motor t in the highest position till
it touches the tire.
The setting should be such that an ima-
ginary line can be drawn between the
centre of the motor and the centre of
the rear wheel.
Make any necessary adjustments to the
upper setting screw (1).
Depending on the need, screw the upper
setting screw in or out.
Imaginary line between the motor and the rear wheel
3. Setting Upper Stop
The upper stop setting regulates how far the motor rises the tyre, to ensure opti-
mum engagement and disengagement while the bike is in driving mode.
