3. Connect the battery cable to the dri-
ve unit, ensuring that the sealing lip
is pushed all the way in as it will go.
Only now the battery cable can be
secured with the cable ties.
Connect the battery cable to the drive unit
Attaching the add-e NEXT Drive Unit
PLEASE NOTE!
Take care, that the plug with the sealing lip is completely plugged
in as far as it will go!
Proper installation of the drive unit and attaching the battery cable are essential for
the correct functioning of the system and for the flawless folding of the Brompton
folding bike.
2. Roughly secure the drive unit with
the supplied Brompton mounting
plate and the clamping screw (4)
(see p. 15).
This is for all models.

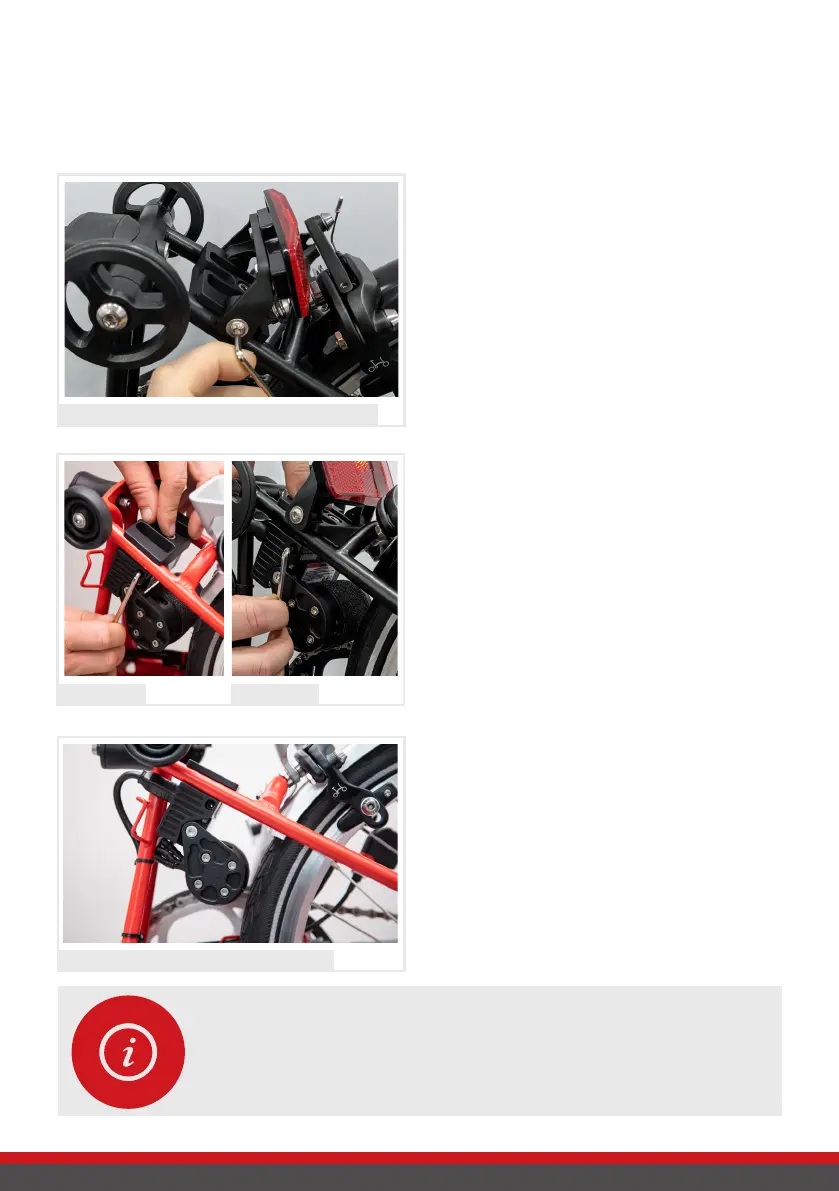

Reattaching the mounting plate with the reflector
1a.For P & T Line models, place the
mounting plate on the frame and
reattach the reflector using the ori-
ginal screws. This step is necessary,
as otherwise the reflector cannot be
reattached.
1b.For A & C Line models, the moun-
ting plate is secured together with
the drive unit - see step 2.
P & T Line
