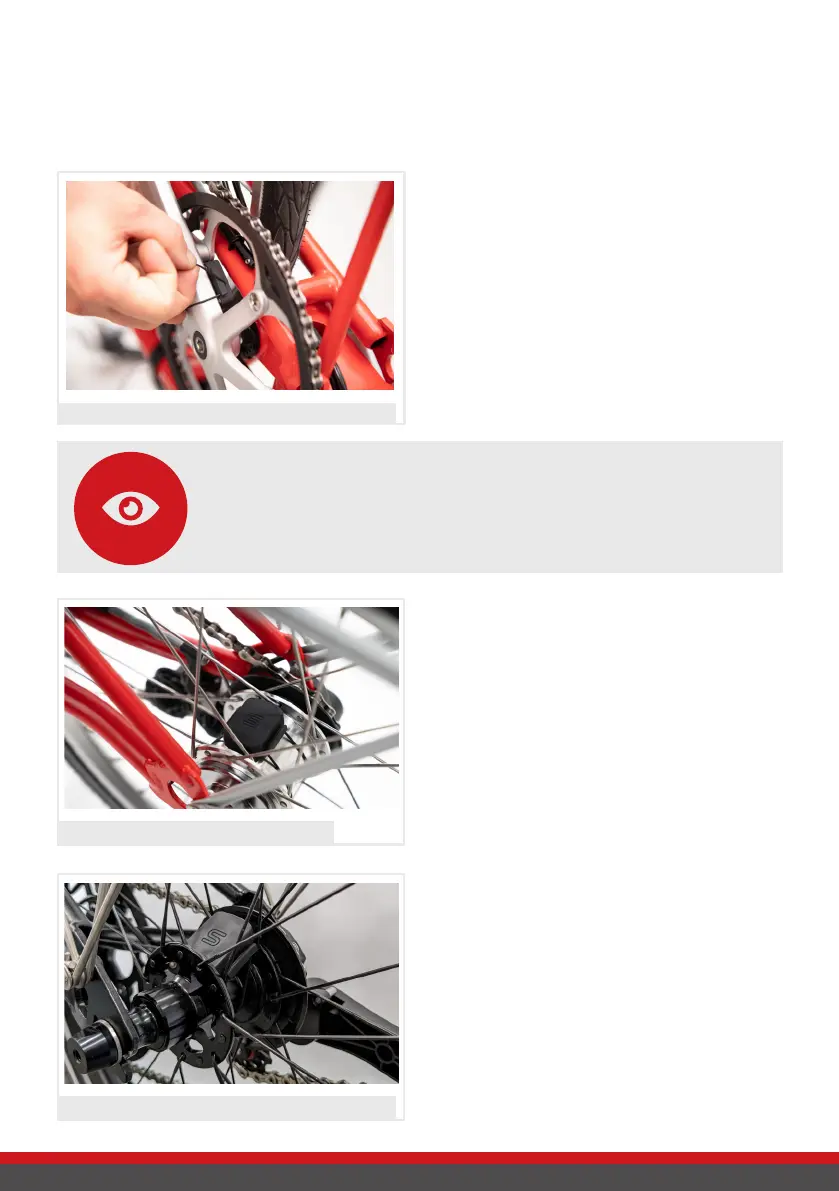

Attaching the add-e NEXT Sensors
Attach the PAS sensor (P) to the inside
of the left-hand pedal crank with a sui-
table rubber mount, so that your foot
cannot damage the rubber.
The crank should rotate freely at all
times, unhindered by the sensor.
PAS sensor attached at the inside of the pedal crank
TIP!
The PAS sensor (P) can be addionally secured with adhesive tape
or moved further towards the boom bracket if space allows.
The add-e NEXT sensors are used to measure cadence and speed and are attached
to the pedal crank and the rear hub. The sensors are included in the set already
paired with the drive unit.
Speed sensor attached at rear wheel hub
Attach the speed sensor (S) to the rear
wheel hub using a suitable O-ring.
For P & T Line models speed sensor with slight angle
For P & T Line models, the speed sensor
can also be positioned at a slight angle.
