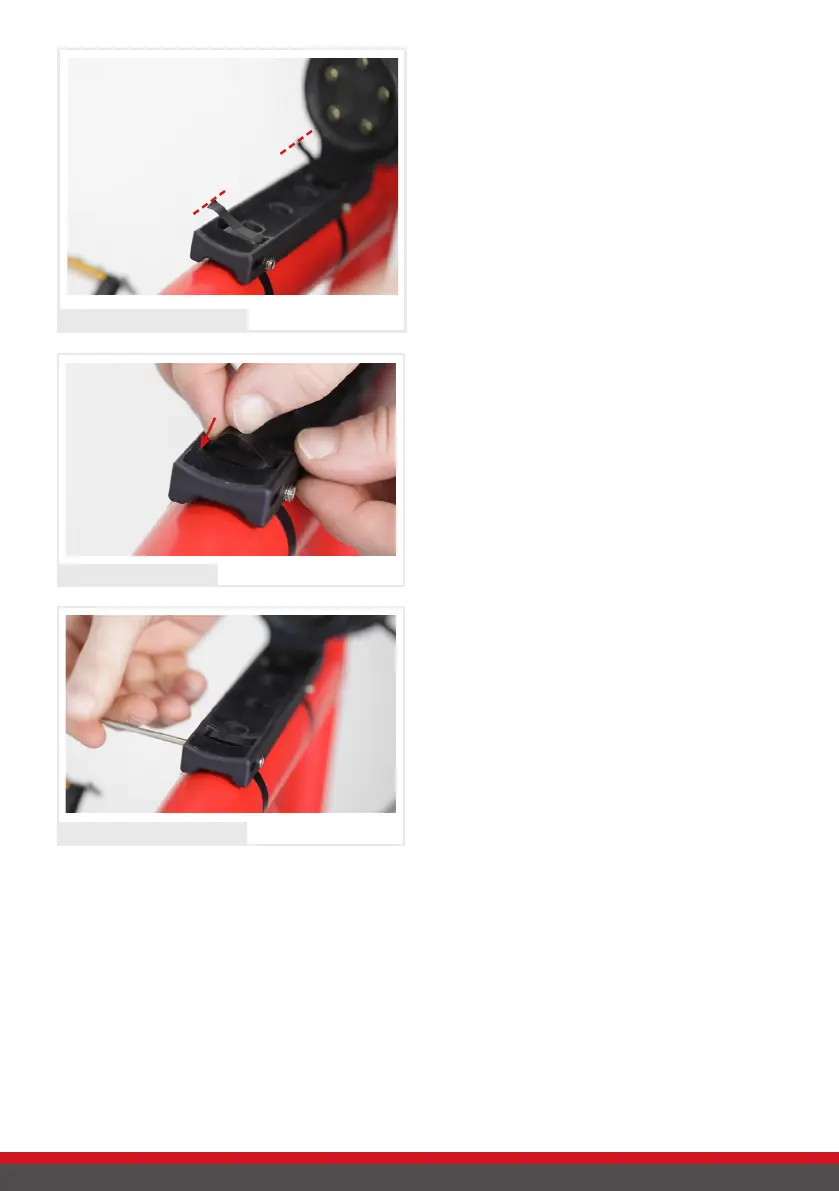

Cut the steel straps precisely
7. Align the steel straps up to the edge
and cut them with a 5mm overlap
(see illustration).
Use good metal shears or side cut-
ters to shorten the steel straps.
If the cut ends are too short, the grub
screws will not engage, and the steel
straps cannot be tightened properly.
Tighten the steel straps
8. Bend the cut ends of the steel straps
at a 90-degree angle and insert them
into the slots.
Press the steel straps flat against the
battery holder with your thumb, and
secure them with the second set
screw.
Tighten with the grub screws
9. Tighten the grub screws alternately
until the steel straps fit snugly around
the frame and the battery holder no
longer moves.
It is important that the steel straps
are not tightened too firmly, as this
can cause damage, including the pos-
sibility of the steel straps breaking.
