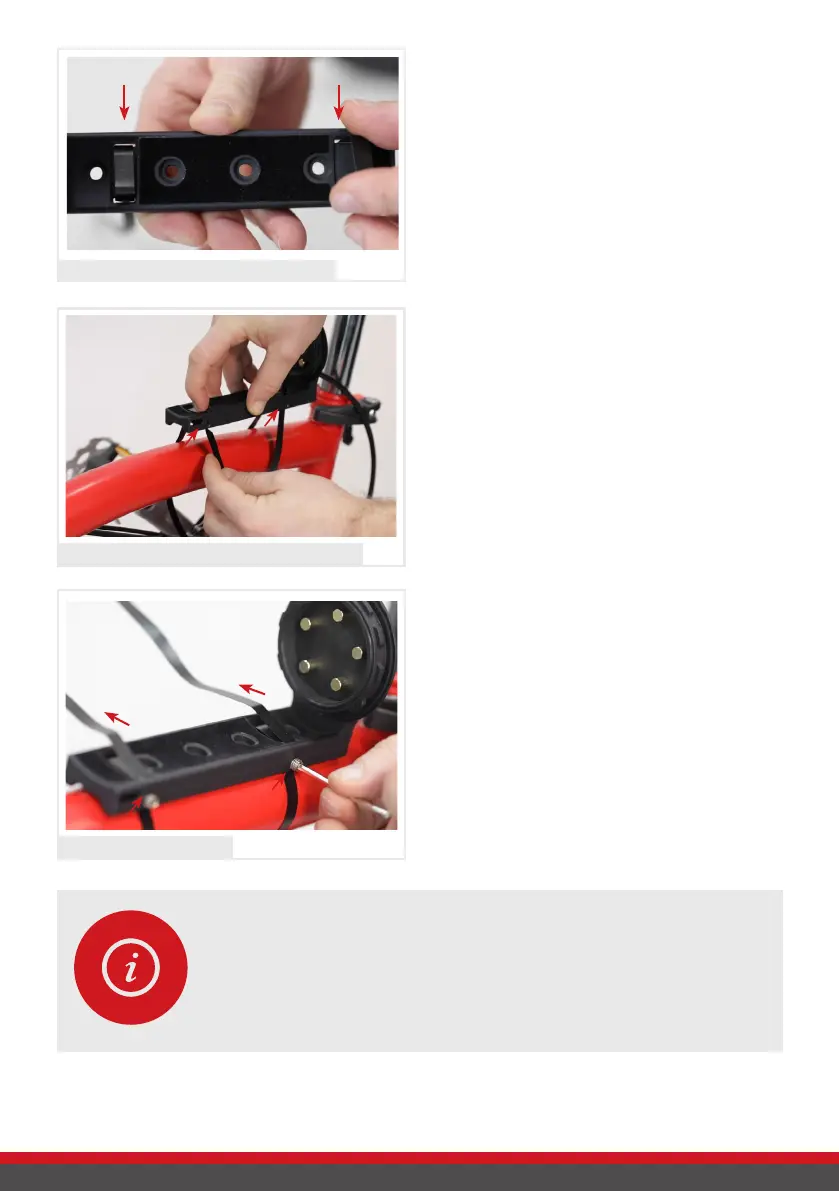

Insert the steel straps to the battery holder
1. Bend the pre-formed tabs of the
steel straps at a 90-degree angle.
2. Insert the steel straps with the flat
end from the front through the bat-
tery holder and place the bent tabs
into the second slot.
3. Press the steel straps flat against the
battery holder and pull the long ends
of the steel straps tight.
Wrap the steel straps around the bicycle frame
4. Wrap the open ends of the steel straps
around the bicycle frame and guide
them through the slot from the back.
Tighten the steel straps
5. Tighten the steel straps in the direc-
tion of the arrow and temporarily
secure them with your thumb.
6. Secure the steel straps with an M6
grub screw and a 3mm Allen key
until the steel strap begins to deform
slightly.
PLEASE NOTE!
Aer cung the steel straps create a sharp edge. To minimise the
risk of injury, do not cut the steel straps too long and ensure that no
sharp, frayed cut edges are le.
