add-e NEXT - D Rive U Nit - M Echanical S Etting; Correct Position of the Drive Unit S

Seite 16

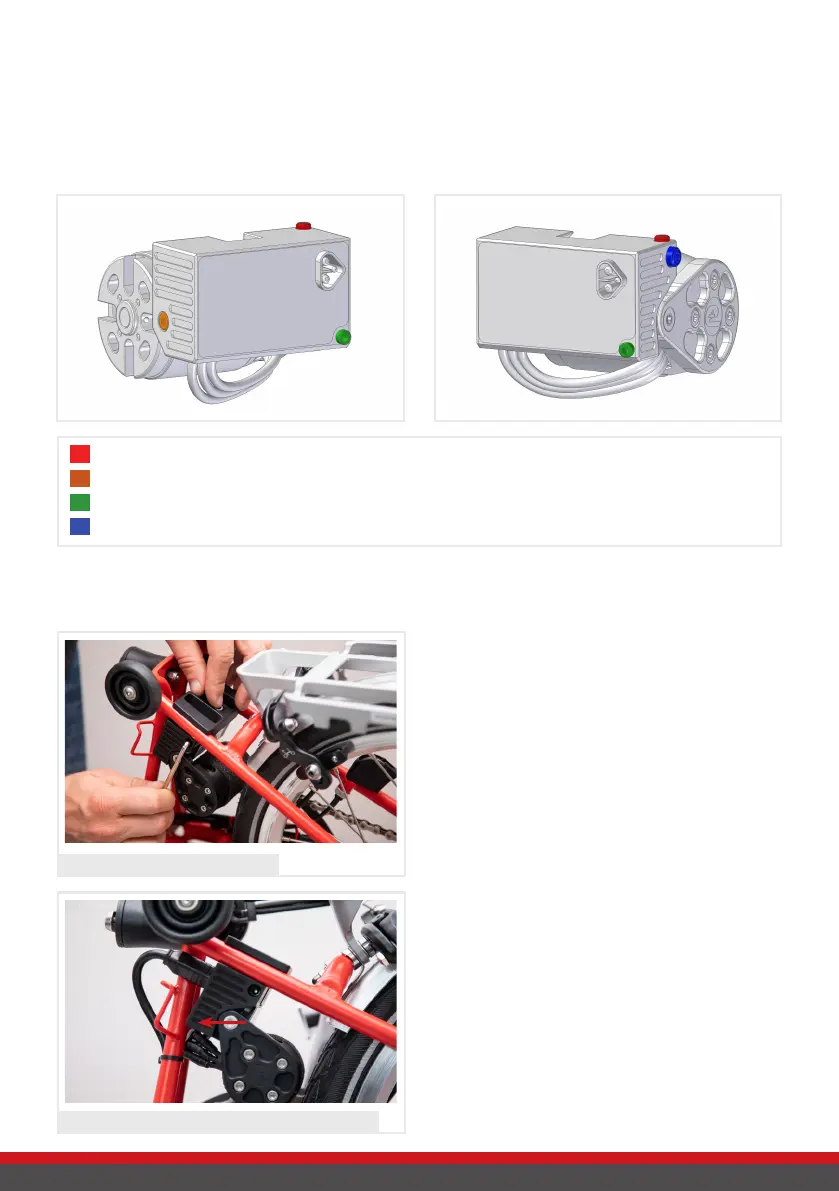

Check the correct position of the drive
unit by loosening the clamping screw (4)
and sliding the drive unit towards the
seat tube.
Loosening the clamping screw (4)
Setting screw for upper stop
Setting screw for freewheel
Setting screw for lower stop
Clamping screw
1
2
3
4
3
4
3
1
2
3
4
4
1
3
The electronics block should rest gently
against the frame struts!
Tighten the clamping screw (4) in this
position.
The electronics block rest genlty against the frame
1a. Correct Position of the Drive Unit at A & C Line Model
The heart of the system is the add-e NEXT drive unit.
The mechanical setting involves adapting the drive unit to the bike, and the ideal
adjustment of the drive unit is important for the optimum function of the drive
itself.
drIve unIT - MeChanICal seTTIng
