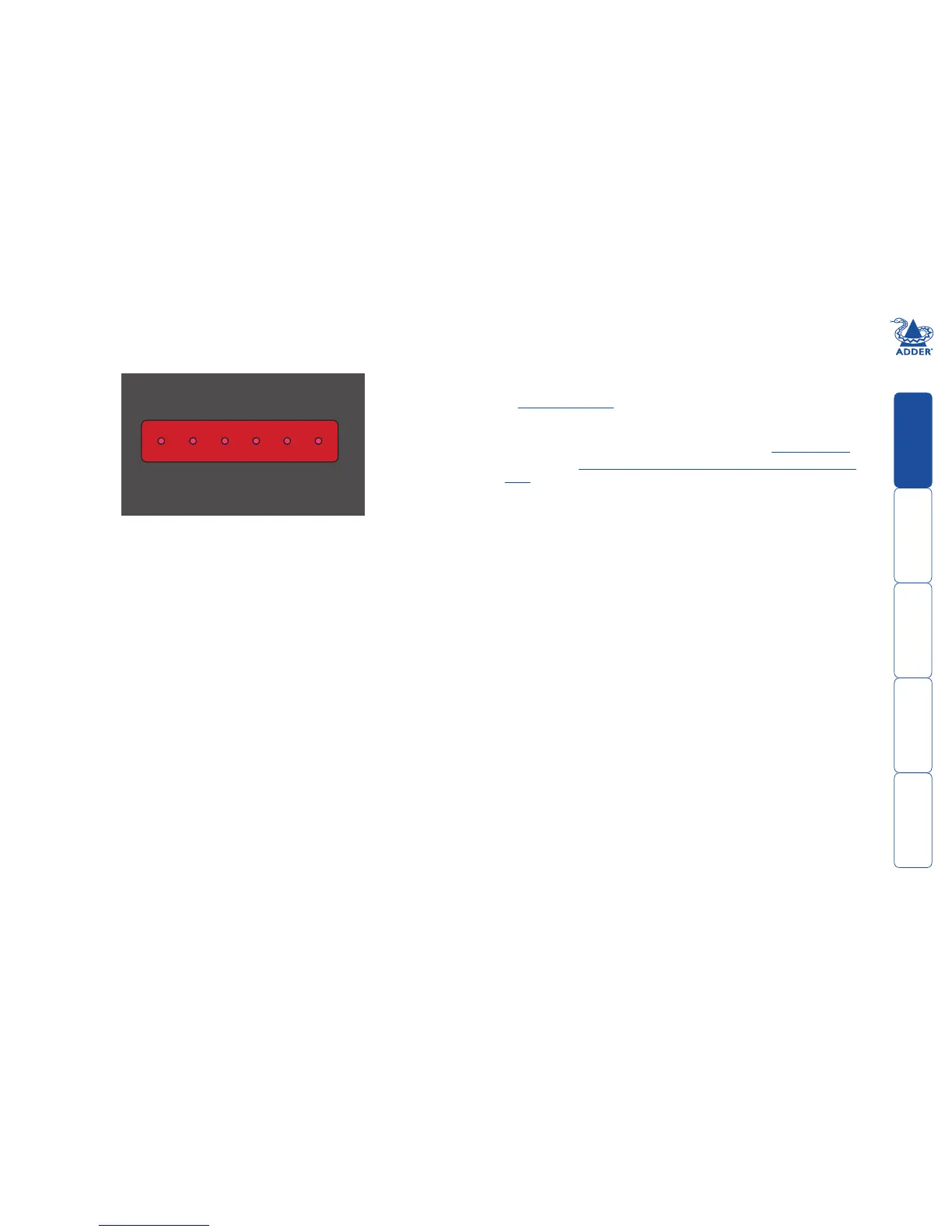

Front panel indicators
To assist with operational checks and troubleshooting, the front panel provides
the following indicators:
• ADM On when an administrator is logged in. Flashes when an
administrator is accessing the system.
• USR On if there are any connections between channels/receivers. Flashes
when a user is accessing the system.
• UNC Unconfigured RX or TX units are online
• ETH1 On when connected, flashes with network activity
• ETH2 On when connected, flashes with network activity
• PWR On when power is applied
Installation requirements
• AIMrequiresthatallAdderLinkInnityunitsthatitcontrolshavermware
version 1.9 or greater.
• Whenconguringtheinstallationformulticasting(andtoimproveoverall
performance), the network switch(es) being used must support a minimum
of IGMP v2 snooping. For faster performance use switches that support
IGMP v3.
• Inordertodisplayvideoresolutionsthatuseahorizontalvideoresolutionof
2048 pixels, the network switch must have support for Jumbo packets.
• PleasealsoseeAppendix A - Tips for success when networking ALIF
units.
