108

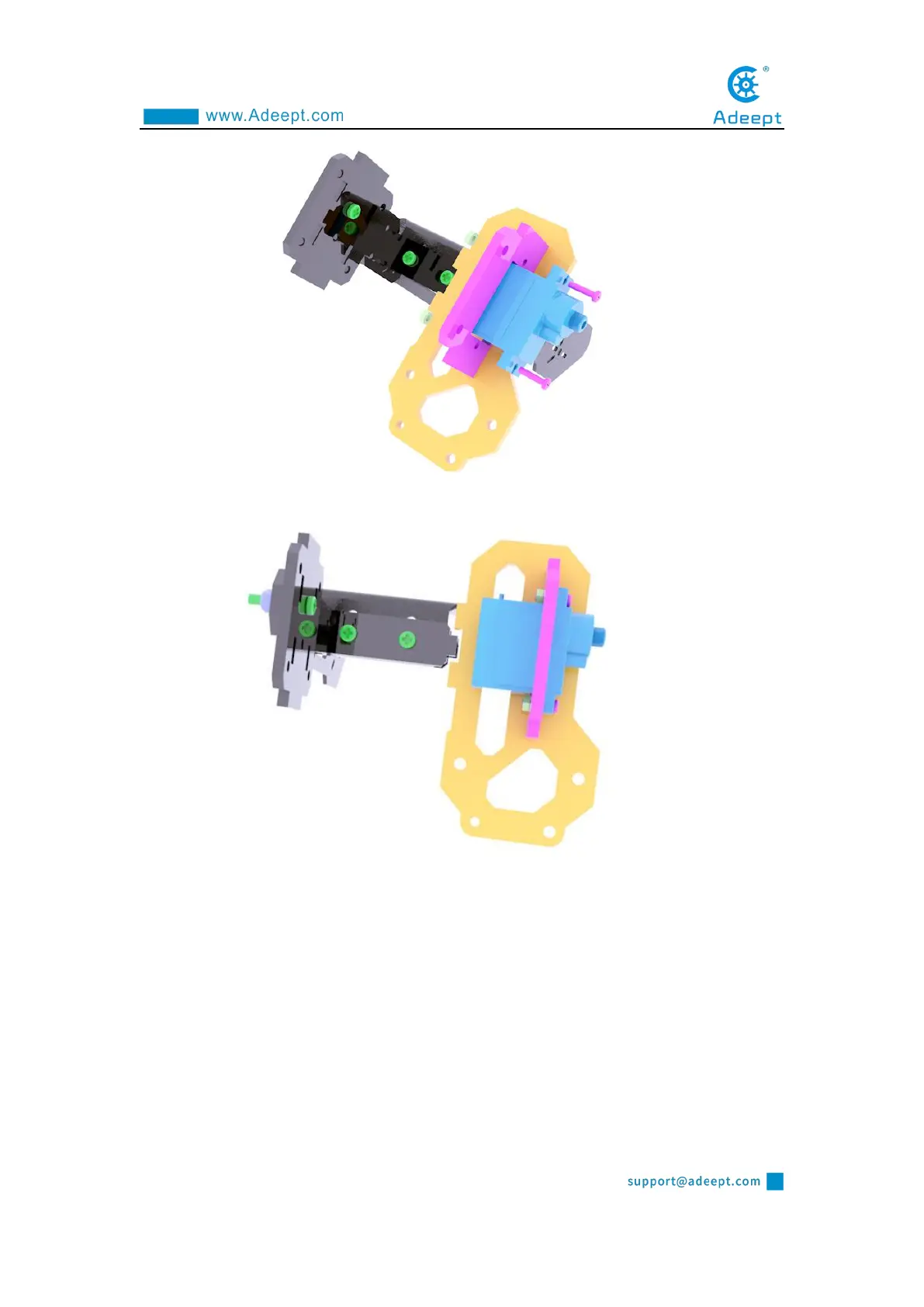

It looks like the picture above after installation.
Prepare the acrylic panel (top panel of GRIPPER) and AD002 servo as shown in the
picture.
Use M2X8 screws and M2 nuts to fix AD002 servo to the upper panel of the arm
chuck.
