ADJ ELEMENT QA - Dimmer Curve Chart

ADJ Products, LLC - www.adj.com - Element QA User Manual Page 25

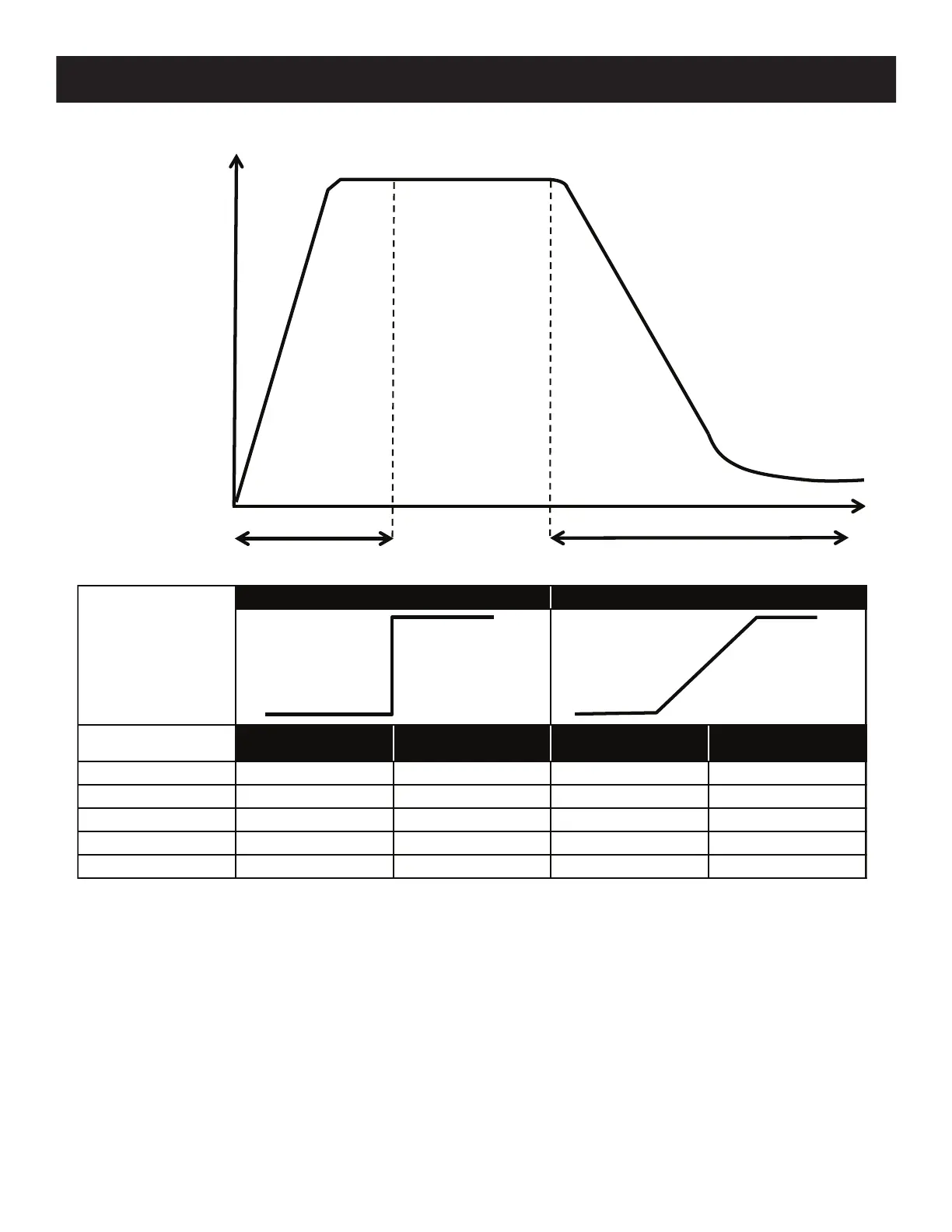

Element QA Dimmer Curve Chart
DIMMER
100%
50%
10%
0%
Time (ms)
0 Sec
255 255
0 0
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Dimming Curve
Ramp Effect
Rise Time Down Time
0 sec Fade Time 1 sec Fade Time
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
