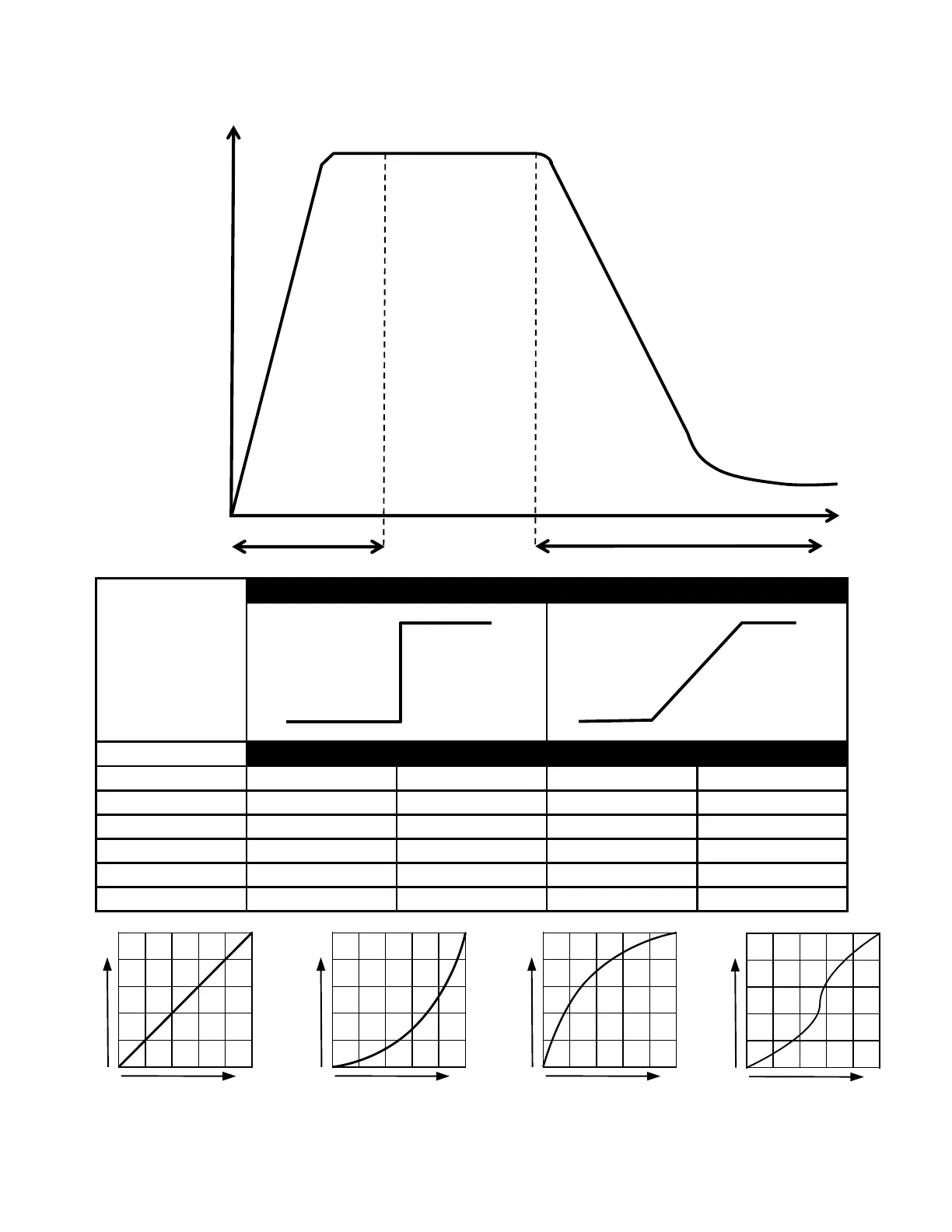

DIMMER CURVES AND DIMMER MODES
DIMMER
100%
50%
10%
0%
Time (ms)
0 Sec Rise Time Down Time
Dimming Curve
Ramp Eect
0 sec Fade Time 1 sec Fade Time
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Standard (default)
0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Stage 2 0 1100 0 1660
0
255
0
255
100%
Output
DMX %
LINEAR
DMX %
0
100%
Output
DMX %
SQUARE
DMX %
0
100%
Output
DMX %
INVERSE SQUARE
DMX %
0
100%
Output
DMX %
S-CURVE
DMX %
0
