ADJ ENTOUR SNOW - Product Layout and Dimensions; Component Identification Diagram; Physical Dimensions and Measurements

ADJ Products, LLC - www.adj.com - Entour Snow Instruction Manual Page 6 ADJ Products, LLC - www.adj.com - Entour Snow Instruction Manual Page 7

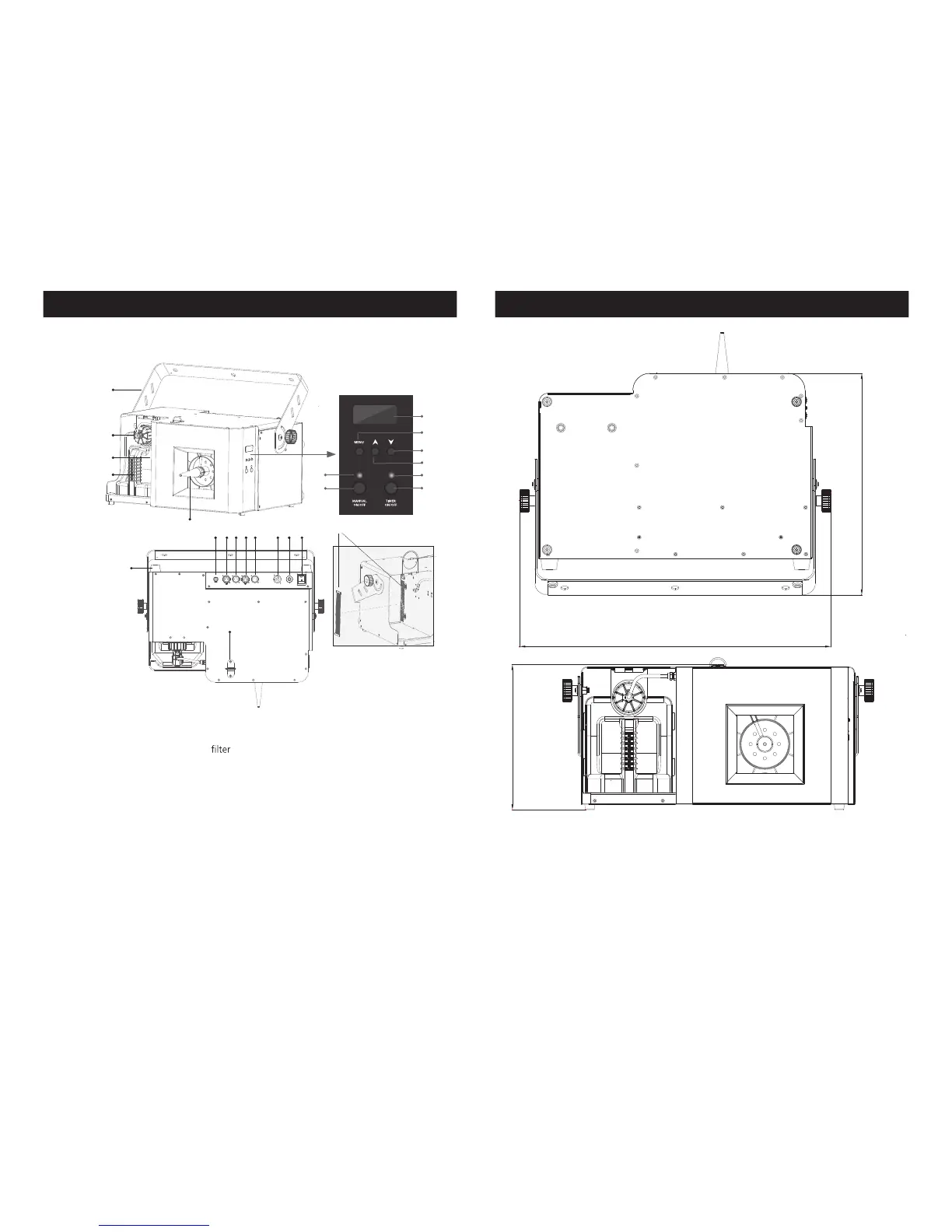

Entour Snow Layout
F
A
D
DN
V
O P Q R S T U
C
B
W
E
G
I
J
K
H
L
M
A. Hanging Bracket with handle
screw (could be done as a tripod)
B. Unique Anti-Spill Tank
C. Quick Connector
D. Inlet with Magnetic air
E. Snow Nozzle with cloth
F. LCD display
G. MENU
H. UP
I. DOWN
J. Manual ON/OFF LED Indicator
K. Manual ON/OFF
L. Timer ON/OFF LED Indicator
M. Timer ON/OFF
N. Control Socket Connection
O. DMX 3 PIN XLR Output
P. DMX 3 PIN XLR Input
Q. DMX 5 PIN XLR Output
R. DMX 5 PIN XLR Input
S. Power Input
T. NFB (No Fuse Breaker)
U. Power Switch
V. Suspension/Safety Ring
W. Pad
Entour Snow Dimensional Drawing
10.11”/257mm
21.65”/550mm
15.39”/391mm
