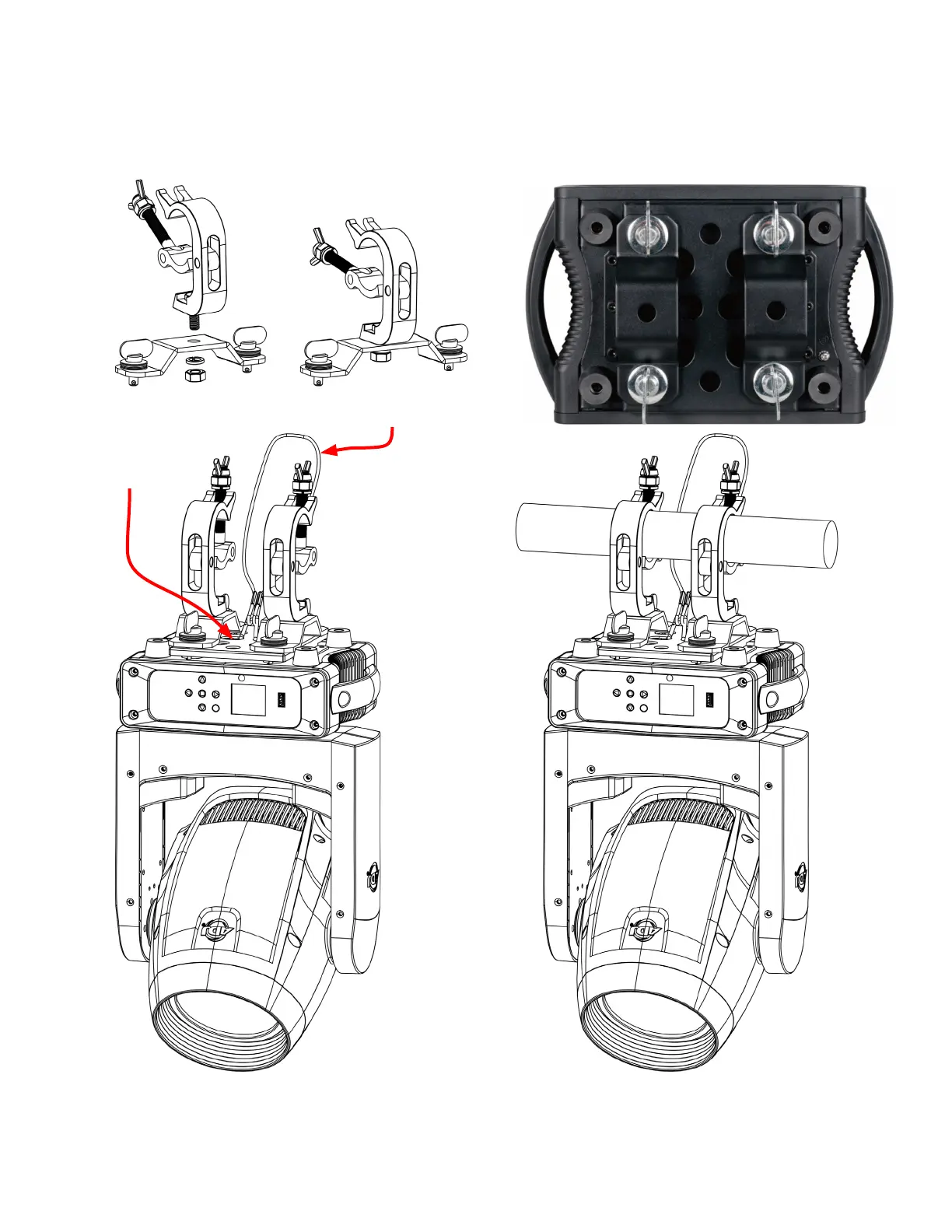

FIXTURE INSTALLATION
Screw one clamp via a M12 screw and nut into the Omega Bracket. Insert the quick-lock fasteners of the
Omega Bracket into the respective holes of the xture base plate. NOTE: The clamp must be attached
to the Omega Bracket before attaching the bracket to the xture. Tighten the quick-lock fasteners
fully clockwise. Pull the safety-cable through the opening located on the bottom of the unit and over the
trussing system or a safe xation spot. Insert the end in the carabiner, and tighten the safety screw.
OMEGA BRACKETS INSTALLATION
Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the
Omega Brackets to the fixture by turning each quick-lock fastener ¼ turn clockwise; making
sure the fastener is completely locked.
4x Omega Bracket Attachment Points
Safety Cable
Attachment Point
Safety Cable
(not included)
12
