eP2 Controller
Operators Manual
Load/Strain Channel
Connections
Analog-Load Input
Analog Excitation:
pins 9 & 10 (+Exc & AGND)
5 Vdc
Analog Inputs: pins 1 & 2 (+/- IN)
Analog Input Range:
up to 2.5 mv/v Tie pin 3 to in 12
up to 4.5 mv/v Tie pin 4 to pin 12
+/- 2.5 V No Connection
User definable Tie <25 ppm/C resistor
between pin 11 & pin 12.
Gain = 1 + 50000/Rg.
Analog shield connects to case.
Encoder-Position Input (optional)
Figure 8.0.2 - Analog Transducer Pin Designation. Encoder Excitation: pins 7 & 8
Encoder Input: pins 14 & 15
Encoder shield connects to case.
Transducer Identification (Contact Factory)
Servo Box Connections
Encoder-Position Input DB 15
Servo +/-: pins 1 & 10
5Vdc: pins 4
Encoder Excitation: pins 7 & 8
Posn Limits: pins 11 & 12
System Enable: pin 13
Encoder Input: pins 14 & 15
Encoder shield connects to case.

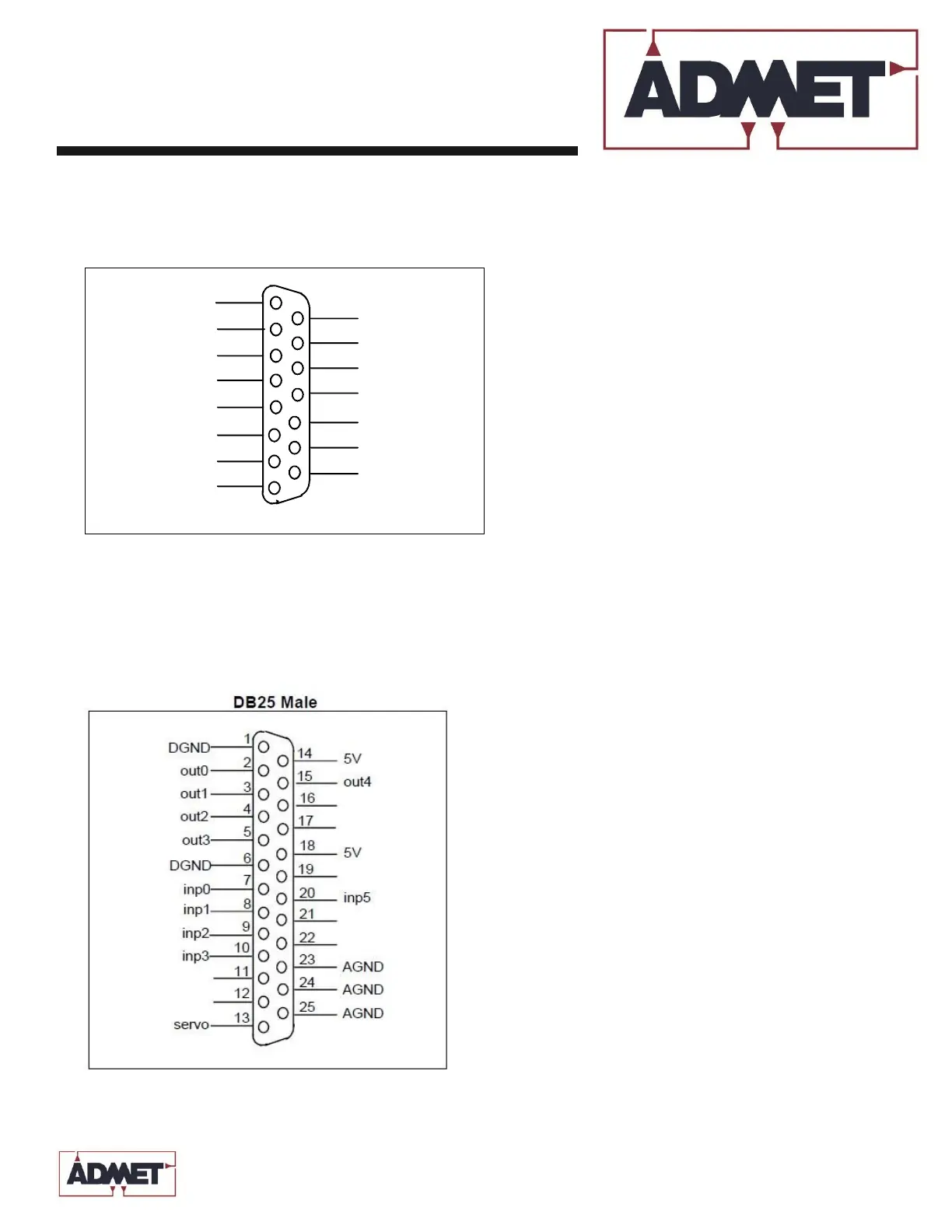

I/O Port DB25
GND: pins 1 & 6 &23 - 25
Pos / Neg Enables: pins 2 & 4
System Enable: pin 3
Dump: pin 5
Posn Limits: pins 7 & 8
Servo Out +/- 10V pin 13
5Vdc: pins 14 & 18
Auto / Manual: pin 20
DB9 Not used
9
1
0
1
1
1
2
1
2
3
4
5
AGND
IN+/SHUNT
GS1
GS2
6
7
8
1
3
1
4
1
5
IN-
TR TYPE
ENC 5V
DGND
+
Exc
AGND
GS3
GS0
SHUNT
ENC A
ENC B
