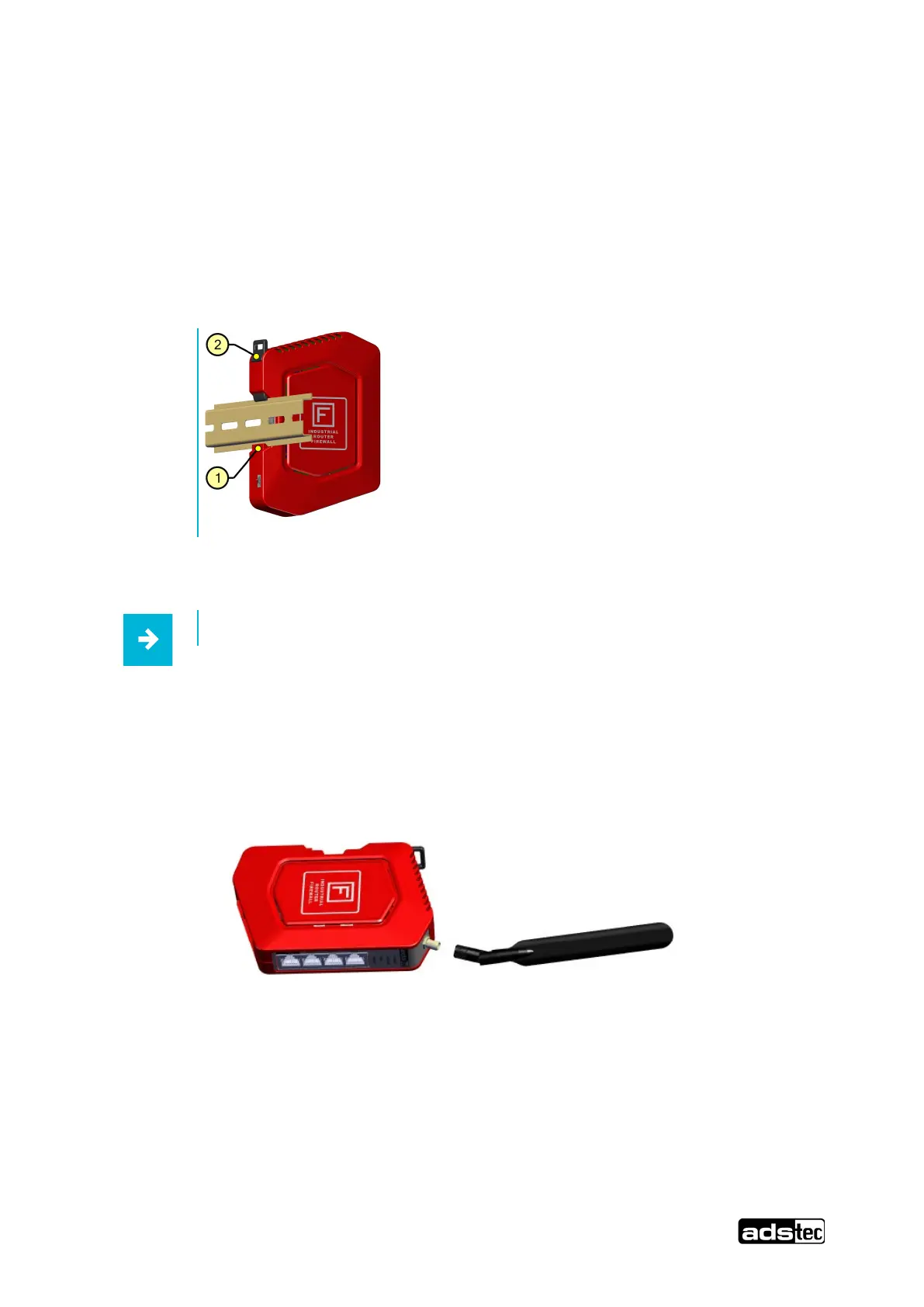

5.2 Top-hat rail mounting
1. Position the IRF on the top-hat rail from below at an angle (1).
2. Pull the top-hat rail locking mechanism (2) upwards using a screwdriver, push the device from above
onto the top-hat rail and remove the screwdriver.
3. The top-hat rail locking mechanism springs back to its original position.
4. Check that the IRF is seated securely on the top-hat rail.
To release the device from the top-hat rail, proceed in the reverse order.
When removing, take care not to damage the top-hat rail adapter of the device.
5.3 Optional: Attaching mobile communications antenna
• Screw the mobile communications antenna to the antenna connection directly or via an SMA
extension cable.
