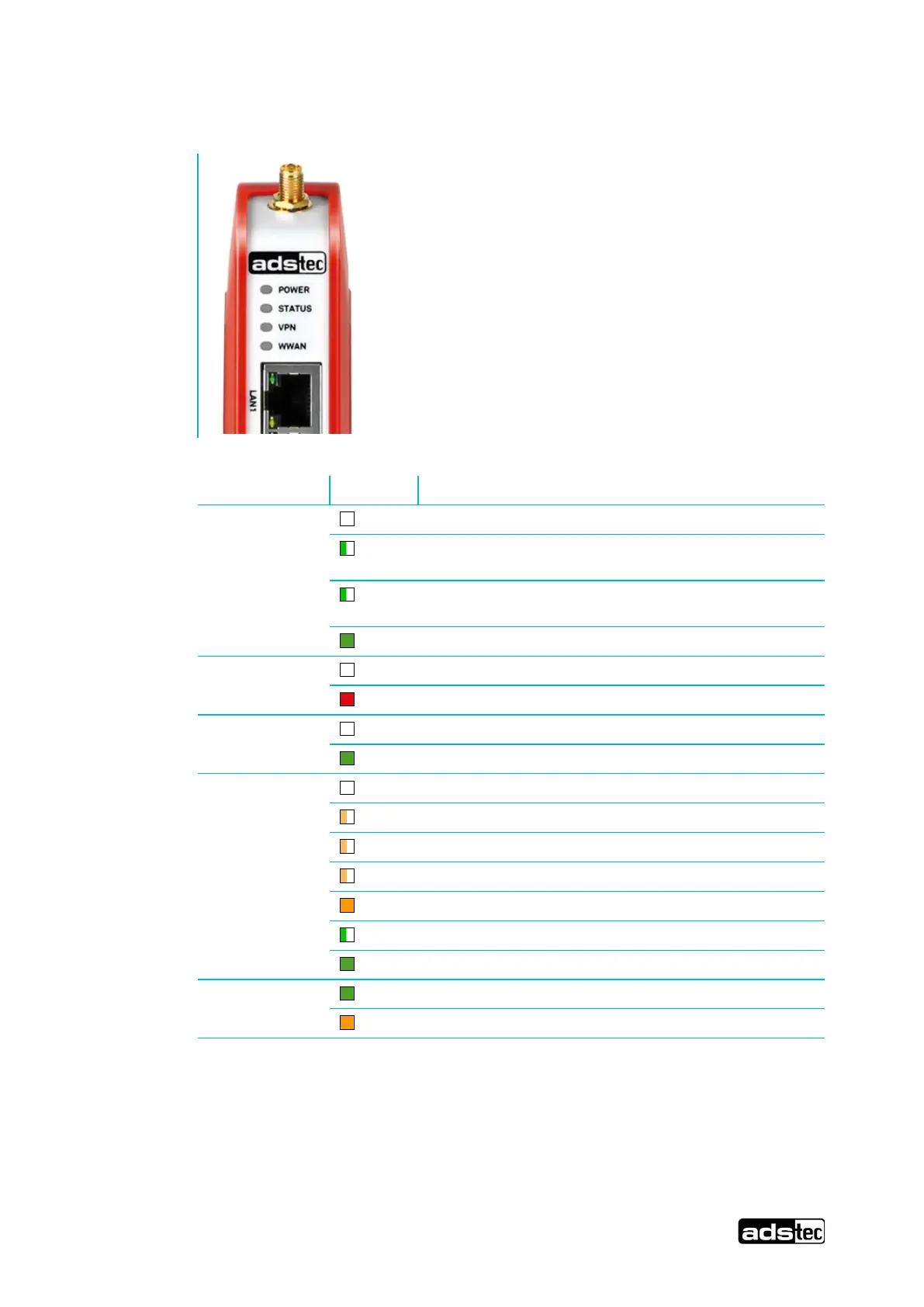

6.1.1 Front LEDs
Signal Action
Power
This device is not supplied with voltage.
Voltage was switched on, device booting.
LED flashes slowly (1 Hz).
Firmware is being updated.
LED flashes rapidly (5 Hz).
The device is ready for operation.
Status
This device is not supplied with voltage.
Error during the boot-up process / recovery image
VPN
No VPN tunnel is active.
The tunnel activated via VPN key is active.
WWAN
No mobile radio connection active.
Network search (1 Hz)
Login declined (2 Hz)
Firmware update of the radio module (5 Hz)
Logged in, offline
Logged in, standby (dial-on-demand)
Logged in, online
LANx / WAN
Link/activity
Speed (down: 100 Mbit/s; up: 10 Mbit/s)
