Total Access 600 Series User Manual © 2002, ADTRAN, Inc.
Total Access 600 Series SHDSL IAD User Interface Guide/64200683L1-31B
Page 48
Configuring Voice Support – Status
Use the 9
2,&(
6
7$786
menu to view and set the parameters shown in Figure 16.

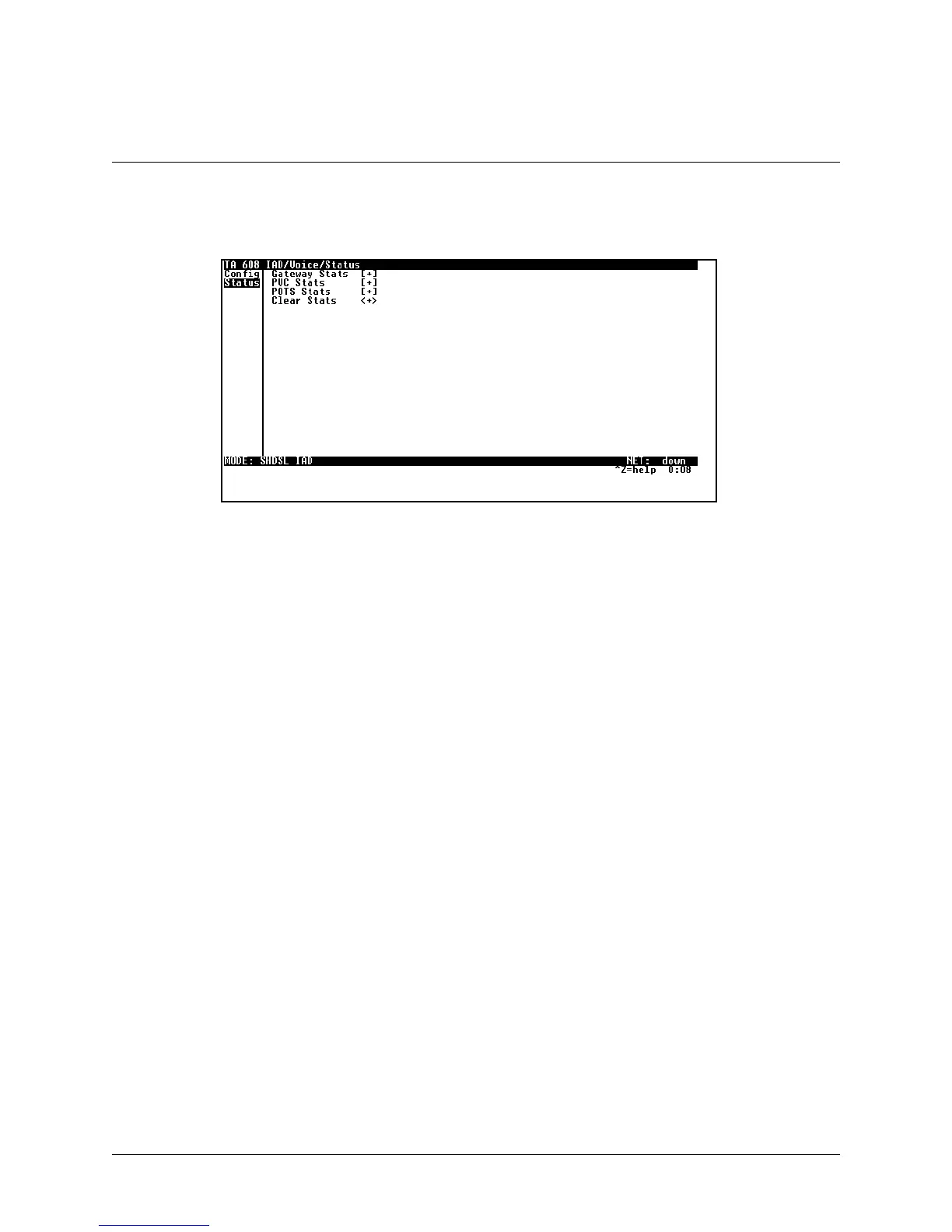

Figure 16. Voice/Status Menu
>Gateway Stats
The *
$7(:$<
6
7$76
menu shows the current state of the communication link between the Total Access 600 and the
Voice Gateway. The Gateway Link is indicated as 8
3
or '
2:1
. A count of management messages is indicated along
with the number of active calls in progress.
>PVC Stats
The 39&6
7$76
menu shows the current state of the virtual circuit used between the Voice Gateway and the Total
Access 600 IAD for voice signaling and voice payload delivery.
>POTS Stats
The 32766
7$76
menu shows real-time indication status of each voice port on the Total Access 600. From this menu,
on a per port basis, the user can determine which ports are active/inactive. Several statistics at this menu are used only
for internal ADTRAN development. Task, Inserts, and Drops indicators are for internal use only.
>Clear Stats
The &
/($5
6
7$76
menu can be used to clear the counters used for Voice Status menus.
