3 Programming and Configuration

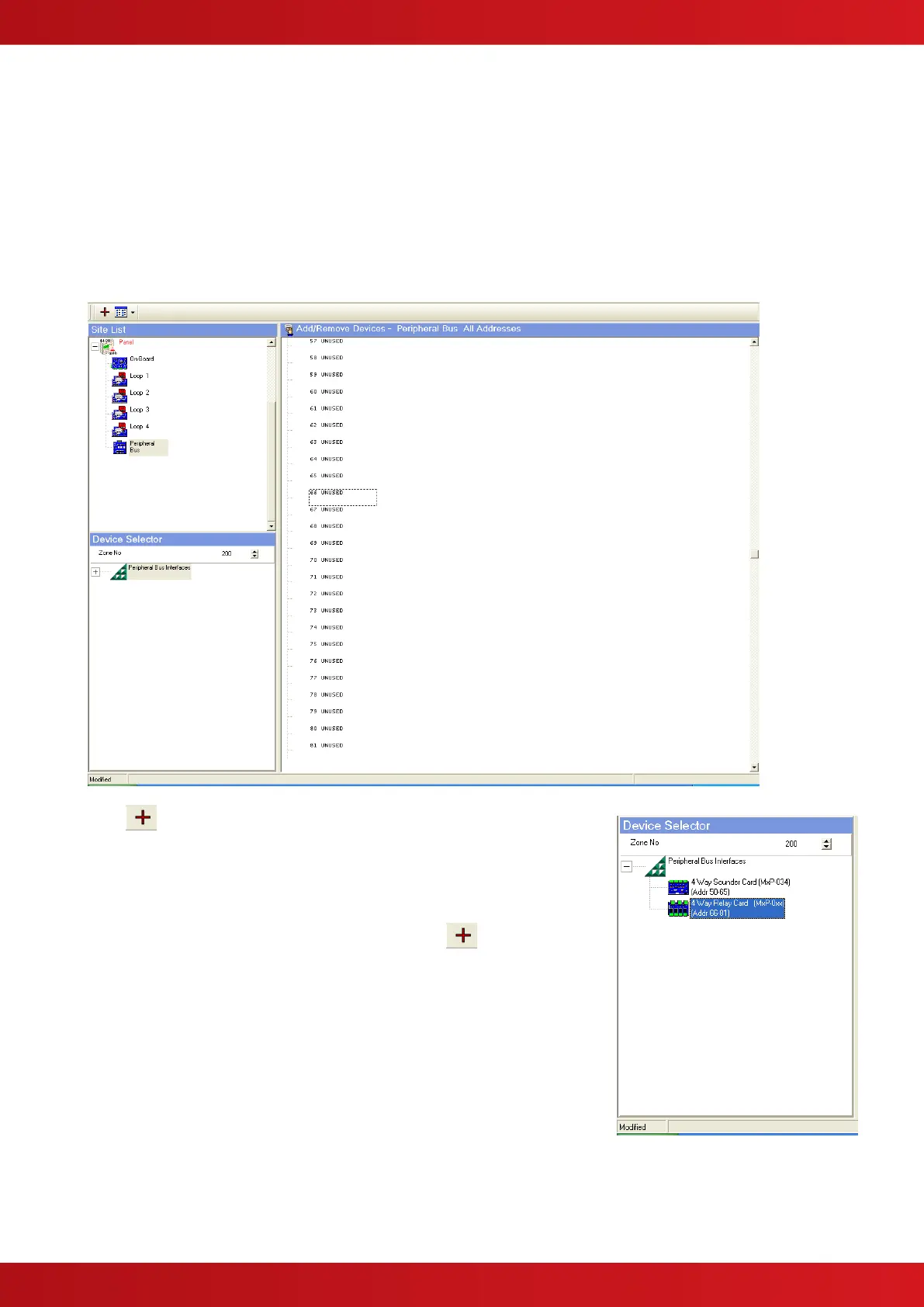

To add a 4-way relay card in the configuration file firstly expand the panel tree and select the “Peripheral Bus”
option.
Note: The peripheral addresses are assigned in blocks. Addresses 50-65 are assigned to the 4-Way Sounder
and addresses 66-81 are assigned to the 4-Way Relay.
3.1 Adding Devices
Click on the device selector and expand the tree and click on the
Mxp-035 option to highlight and select it.
The zone number is pre-assigned to the zone number of the panel. This
can be changed if an alternative zone is required for these circuits.
Select the required address in the list and then click on the tool bar to
add the device at the selected address (or right click and select add).
Continue and add 4-way relay cards at additional addresses if required.
Remember that the DIP Switch on the card(s) will need to be set to match
the addresses chosen in the configuration file.
An example of a panel with five (5) relay cards is shown below.
