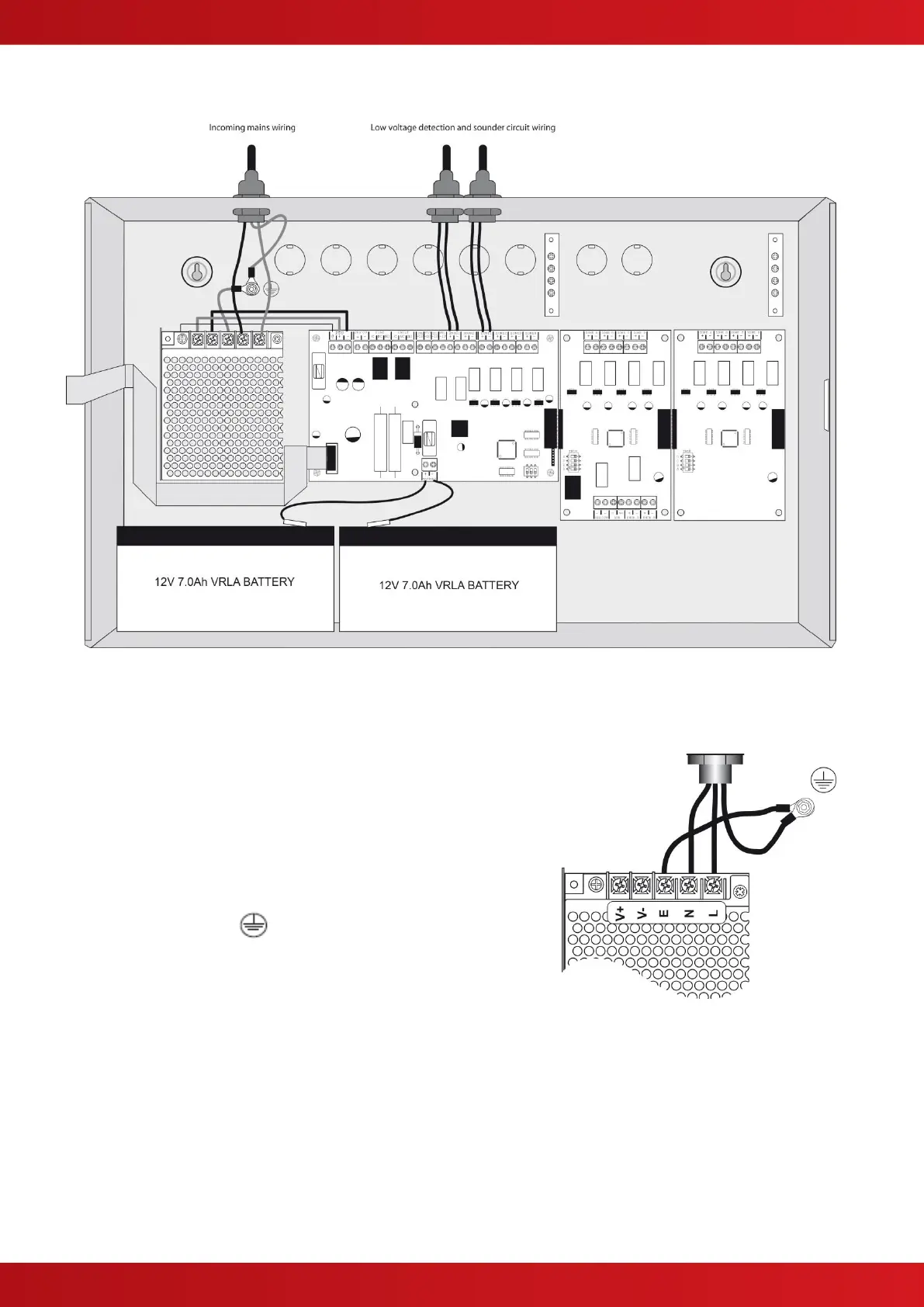

Typical panel layout
Drawing shows typical internal layout of the panel cabinet with two 3.2Ah, 12v batteries fitted
3.5 MAINS CONNECTIONS
Do not connect the mains supply to the panel until you are fully
conversant with the layout and features of the equipment.
A rating plate is attached to the power supply module describing the
nature of the supply permitted.
The incoming mains supply should be brought into the panel via one
of the knockouts provided.
A suitable cable gland must be used to secure the outer sheath of the
cable used. The earth must first be connected to the primary earth
stud (peg) marked with a symbol, using the ring crimp provided.
Sufficient earth lead should be left to allow Live and Neutral connections to be accidentally pulled from the
terminal block while leaving the earth connection intact.
