1.5 ZONE CARD TERMINALS

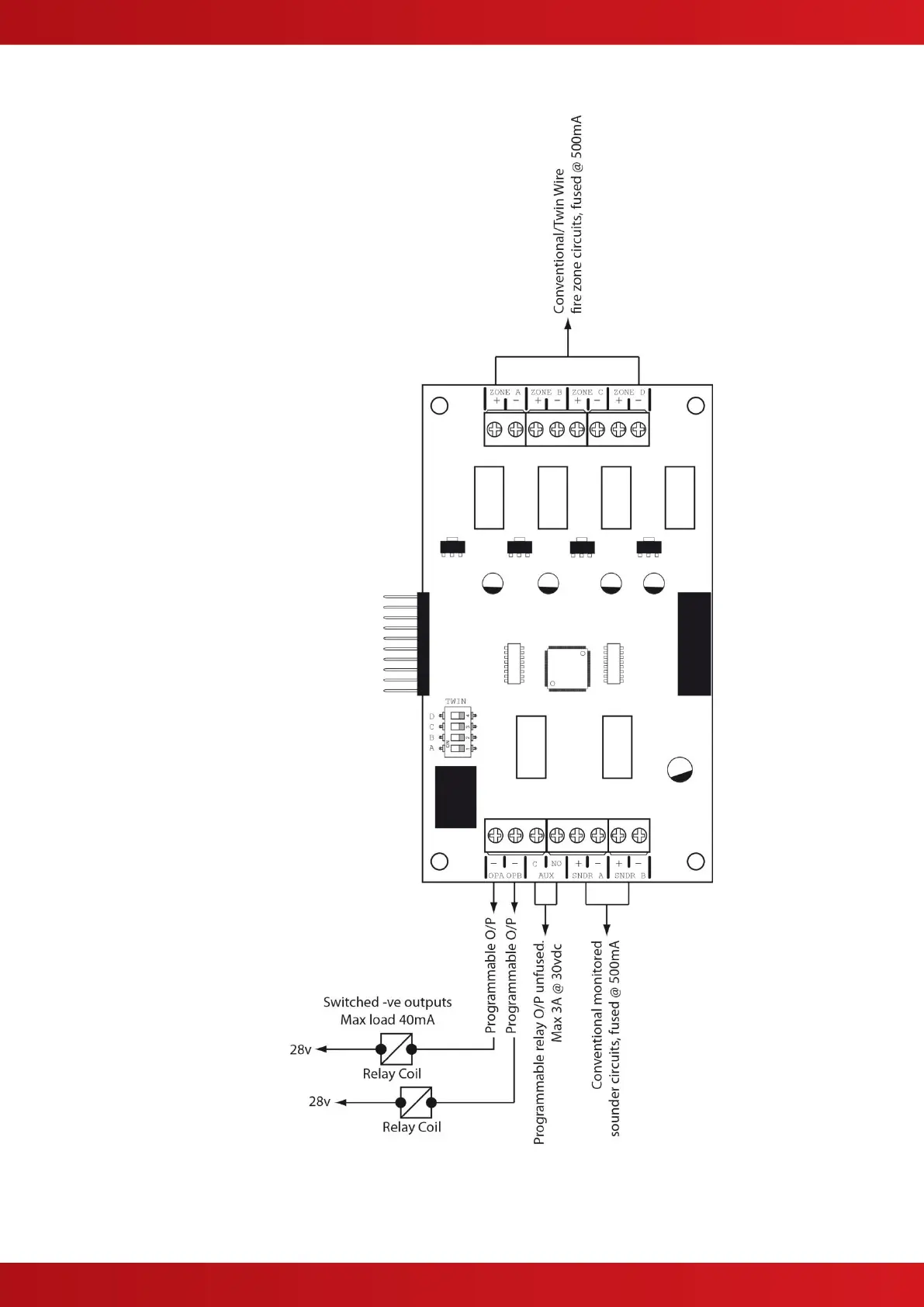

Drawing shows the high spec version of the
zone extension PCB (CZXL-HSZEC).
The std version does not contain the additional
outputs or sounder circuits shown at the
bottom.
