1.3 CIRCUIT BOARDS

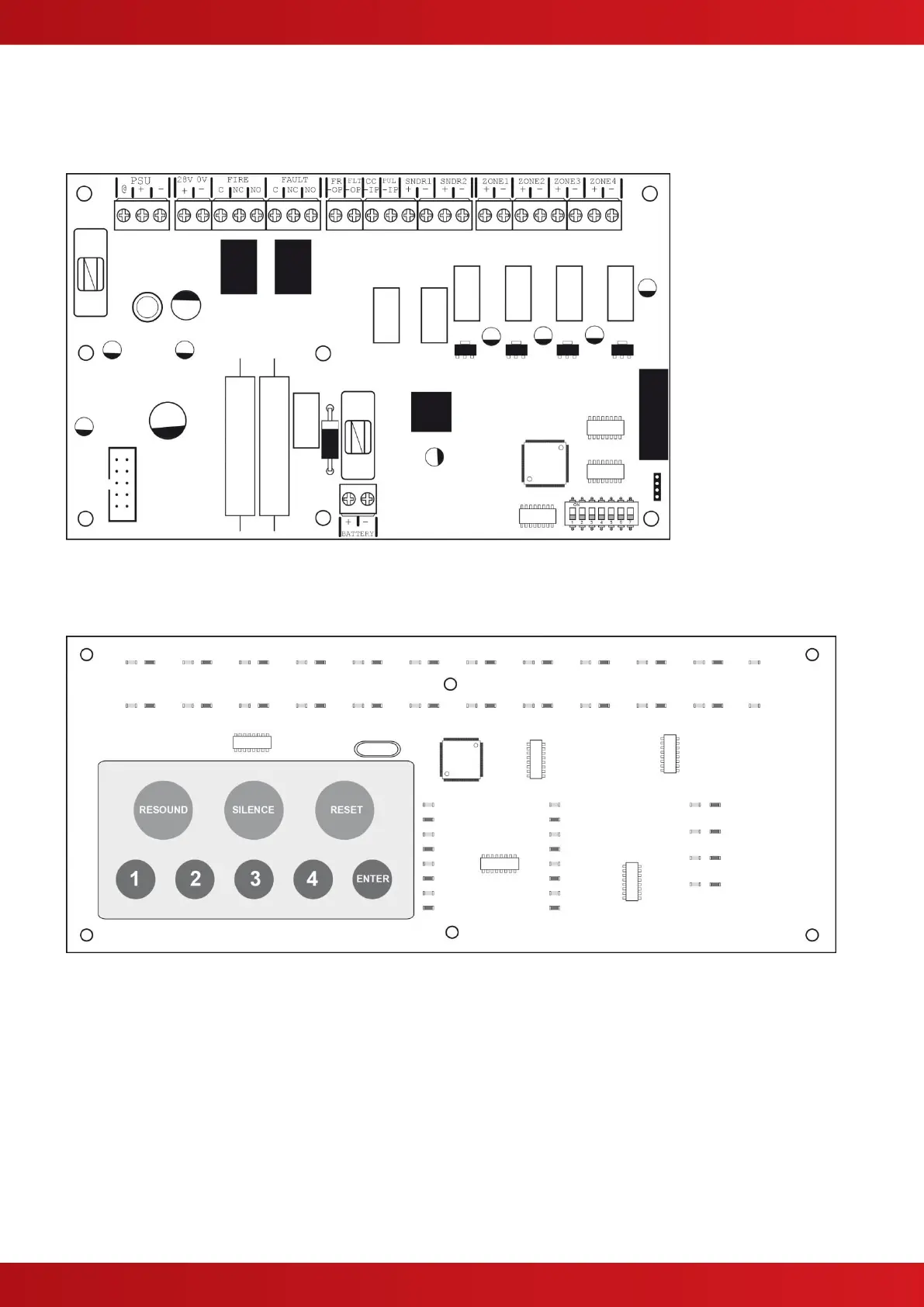

QuickZone XL panels comprise of two main circuit boards plus optional ancillary boards
TPCA01-X4 Master PCB
TPCA03 - LED Display & Controls PCB
