5.1.1 Status LED Indicators
LED On
LED Pulsing
Zones in Fire 1 - 12
N/A
Indicates alarm condition in zone.
Zone Fault/Disabled/Test
1 - 12
Indicates zone circuit is disabled or in
test mode
Indicates a fault in the zone circuit
Supply Healthy:
Indicates mains and/or battery supply is
present
N/A
General Fire:
N/A
Indicates panel is in alarm condition
General Fault:
N/A
Indicates one or more faults are
present
General Disablement:
Indicates one or more circuits have
been disabled
Indicates disablement selection mode
is active
Test Mode:
Indicates one or more circuits are in
test mode
Indicates test mode selection is active
Sounder Status:
Indicates sounder circuits have been
disabled or are in test mode
Indicates a fault on one or more
sounder circuits
Aux Output Status:
Indicates auxiliary outputs have been
disabled
N/A
Power Supply Fault:
N/A
Indicates a power supply or battery
fault
System Fault:
Indicates a system failure, panel not
functional or the internal PCB
configuration has not been set up
correctly (see page 28)
Indicates the panel has recovered from
a system fault
Access Level:
Indicates controls are active (access
level 2)
Indicates panel is in configuration mode
(access level 3)
Delay Status:
Delays are configured
Delay is running

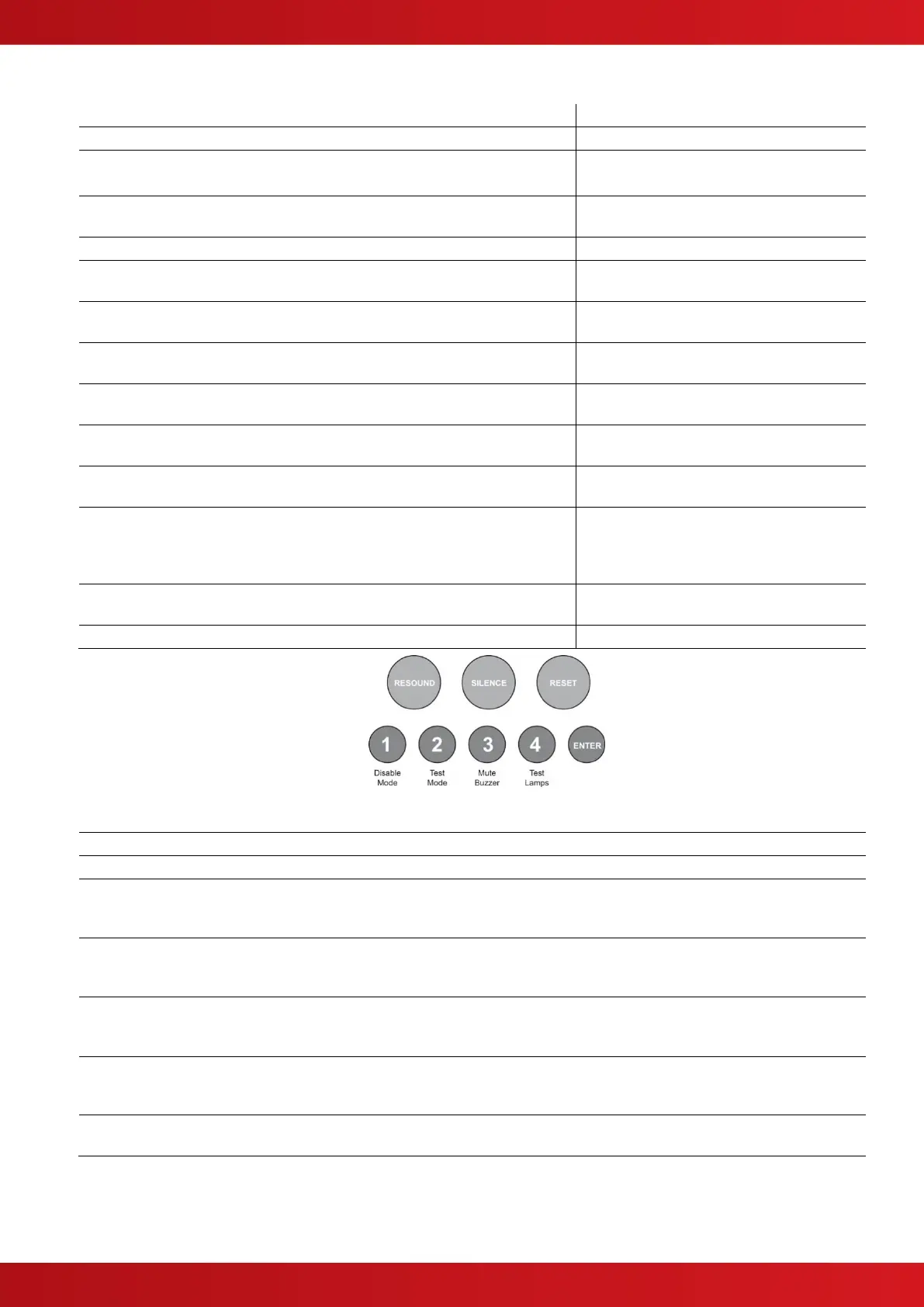

5.1.2 Keypad
RESOUND (red):
Use to re-sound the alarms after they have been silenced. Can also be used to
invoke a full evacuation.
SILENCE (blue):
Use to silence the sounders during an alarm condition.
RESET (green):
Resets the panel back to standby mode.
1: (Disable Mode)
With controls inactive, use to initialise code entry mode for activation of controls.
With controls active, use to disable zones, sounder circuits or aux outputs (see
DISABLE MODE section). Also has the numeric value 1 for code entry.
2: (Test Mode)
With controls inactive, use to initialise code entry mode for activation of controls.
With controls active, use to put zones or sounders circuits into test mode (see
TEST MODE section). Also has the numeric value 2 for code entry.
3: (Mute Buzzer)
Mutes the panel’s internal fire and fault buzzer. (The buzzer will still blip every 5-6
seconds during a fire or fault condition). This function is operational without the
need to activate controls. Also has the numeric value 3 for code entry.
4: (Test Lamps & Buzzer)
Use this button to illuminate all LEDs and sound the internal buzzer to check that
they are working correctly. This function is operational without the need to activate
controls. Also has the numeric value 4 for code entry.
ENTER:
This button is used to confirm code entries. It can also be used for fault diagnosis
(see FAULT DIAGNOSIS section).
Some buttons have other functions within the engineering facilities. These functions are described in the
relevant sections.
