Advanced Quick Zone XL User Manual

31

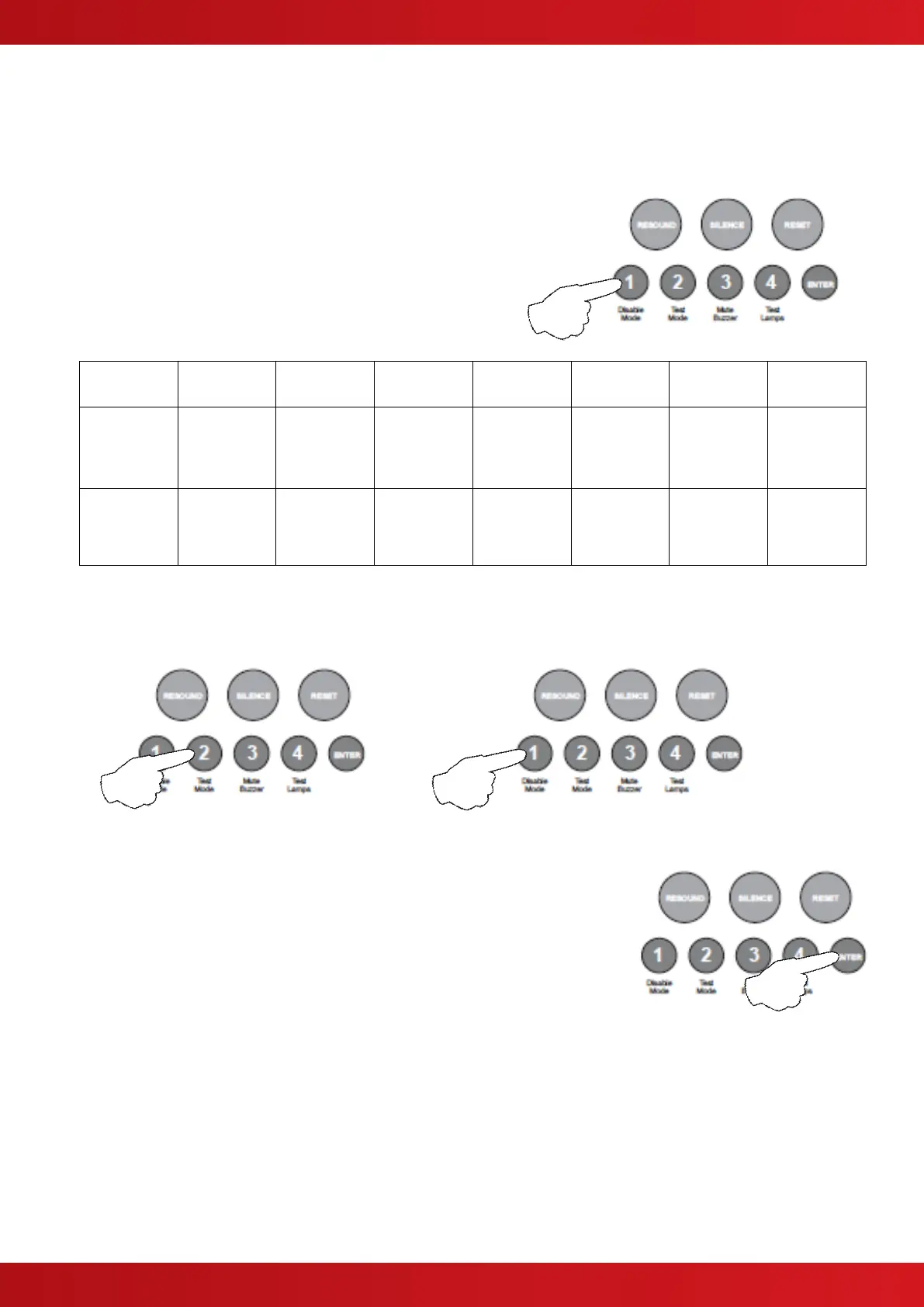

With the required zone for editing LED lit, press the ENTER button to enter ‘editing mode’.
The fire zone 1 LED will now pulse to indicate the editing of attribute 1 (fire latching) for the selected zone.
Use button 1 to scroll to the attribute that requires editing,
indicated by a pulsing fire LED 1 - 7 as per table below.
The setting of the attribute is indicated by the amber, fault /
disabled / test LED, ON or OFF.
Fire LED
(pulsing)
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
Attribute
Fire
latching
Short
circuit as
fire
Intrinsically
safe
operation
Silent
mode
Priority
alarm
Detector
removal
monitoring
Zener
diode
detector
bases
Amber fault
LED
(default
setting)
ON
OFF
OFF
OFF
ON
ON
OFF
Use button 2 to switch the attribute ON or OFF, indicated by the amber, fault / disabled / test LED, then use
button 1 to move to the next attribute if required.
Press the ENTER button to return back to the zone selection, indicated
by a steady zone fire LED
When finished all the zone function programming, enter the next
programming code or disable the controls and return DIL switch 6 to ‘OFF’.
