USER INSTRUCTIONS
If an alarm condition is present YOU MUST FOLLOW YOUR NORMAL FIRE DRILL PROCEDURES.
A responsible person should then:-
1. Check the control panel to see which area or zone has caused the system to go into alarm. This will be
indicated by a pulsing red LED on the front of the control panel.
2. Go to the area which has caused the alarm to check if a fire exists.
3. Only when it is safe to do so should the alarms be silenced. Activate the controls by turning the key
switch or by entering the four digit code (see Activate Controls in the OPERATING section) and press
the (blue) SILENCE ALARMS button (fig 1). To sound the alarms again press the (red) RESOUND
button (fig 2).
4. In the event of a false alarm look for the device that has caused the alarm. A detector will have a red
LED lit, or check to see if a call point glass is broken (if so replace the glass or call an engineer).
5. When fully satisfied that there is no fire, return to the control panel and press the (green) RESET button,
(fig 3). The panel display should return to normal and only the green SUPPLY HEALTHY LED should be
lit on the control panel.
If the system continues to false alarm, call an engineer
Fault Condition
If a buzzer is sounding in the control panel but the sounders or bells are not ringing, then there is either a fault
on the system, or zones / sounders have been disabled. CALL AN ENGINEER
The internal fault buzzer can be silenced by pressing MUTE BUZZER (button 3 on the keypad). DO NOT
RESET THE SYSTEM UNTIL AN ENGINEER HAS INVESTIGATED THE FAULT.

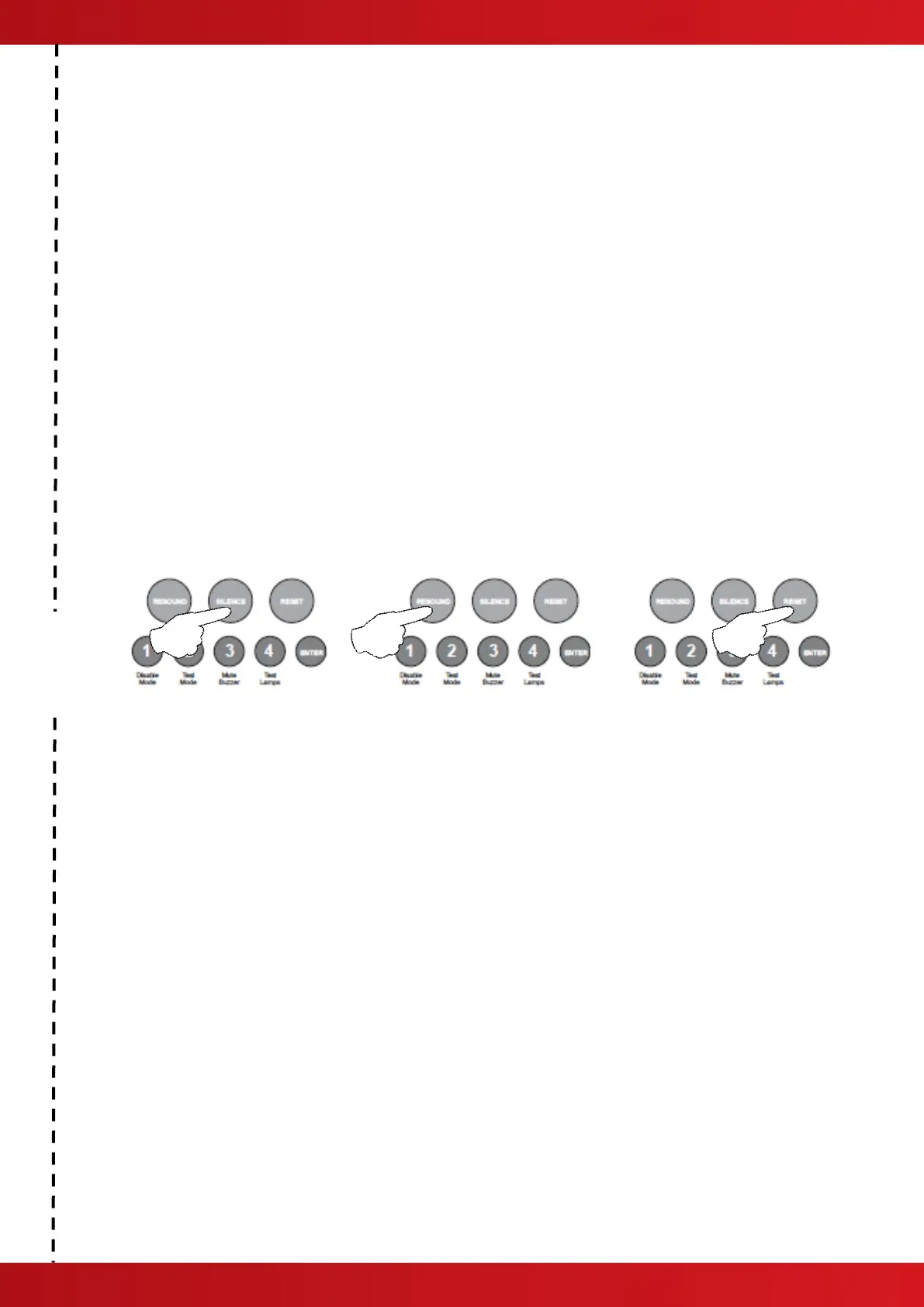

Fig 1
Fig 2
Fig 3
