7 ADAM-5000 Series User Manual
Chapter 1 Overview

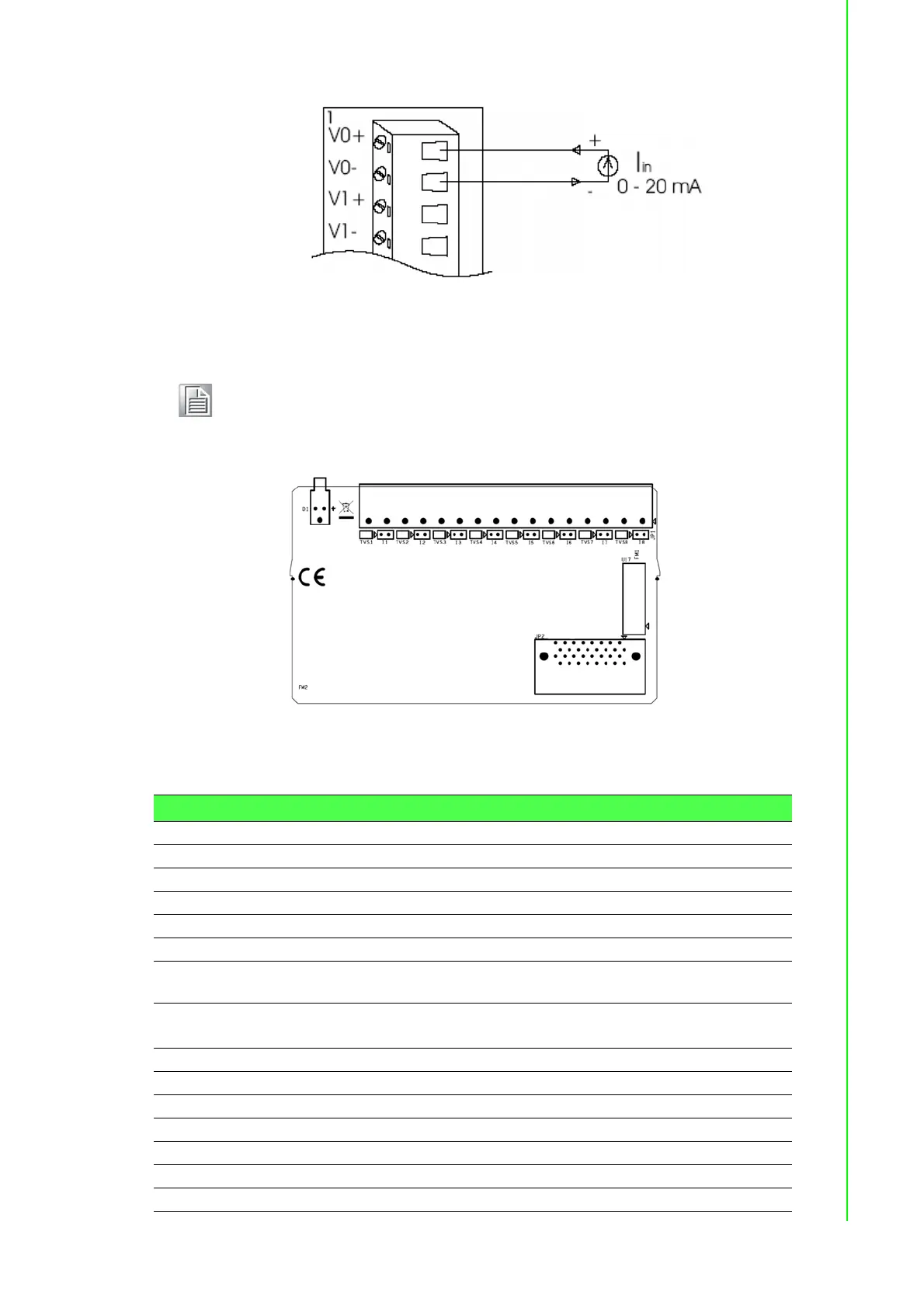

Figure 1.6 Process Current Input
Figure 1.7 Locations of Jumpers
Technical Specifications of ADAM-5017
Note! To keep measurement accuracy please short the channels that
are not in use.
Table 1.4: Technical Specifications of ADAM-5017
Analog Input Channels Eight differential
Input Type mV, V, mA
Input Range ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Isolation Voltage 3000 VDC
Sampling Rate 10 samples/sec (total)
Analog Input Signal Limit 15 V max.
Max. allowable voltage difference
between two connectors in a module
15 V max.
Input Impedance
2M
(voltage input)
120
(current input)
Bandwidth 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
Accuracy ± 0.1% or better
Zero Drift ± 1.5 µV/°C
Span Drift ± 25 PPM/°C
CMR @ 50/60 Hz 92 dB min.
Power Requirements + 10 to + 30 VDC (non-regulated)
Power Consumption 1.2 W
To Next Page
