49 ADAM-5000 Series User Manual
Chapter 5 Relay Output Modules
5.1.2 ADAM-5069 Relay Output Module
The ADAM-5069 relay output module provides 8 relay channels of Form A. Switches
can be used to control the relays. Considered to user friendly, the ADAM-5069 also
built with LED indicator for status reading easily. And it also provides a choice to clear
or keep output status when reset by adjusting a jumper.
Specifications
Number of Output Channel: 8 Form A
Contact Rating: AC: 250V@5A
DC: 30V@5A
Breakdown Voltage: 750 VAC (50/60 Hz)
Insulation Resistance: 1000M£[@500VDC
LED Indicator: On: Active
Off: Non-active
Power Consumption: 0.25W (typical) 2.2W (Max)
Isolation Resistance: 4000 VRMS
Relay response Time: On:5 ms
Off: 5.6 ms
Clear or Keep Relay Status when reset (selectable by jumper)

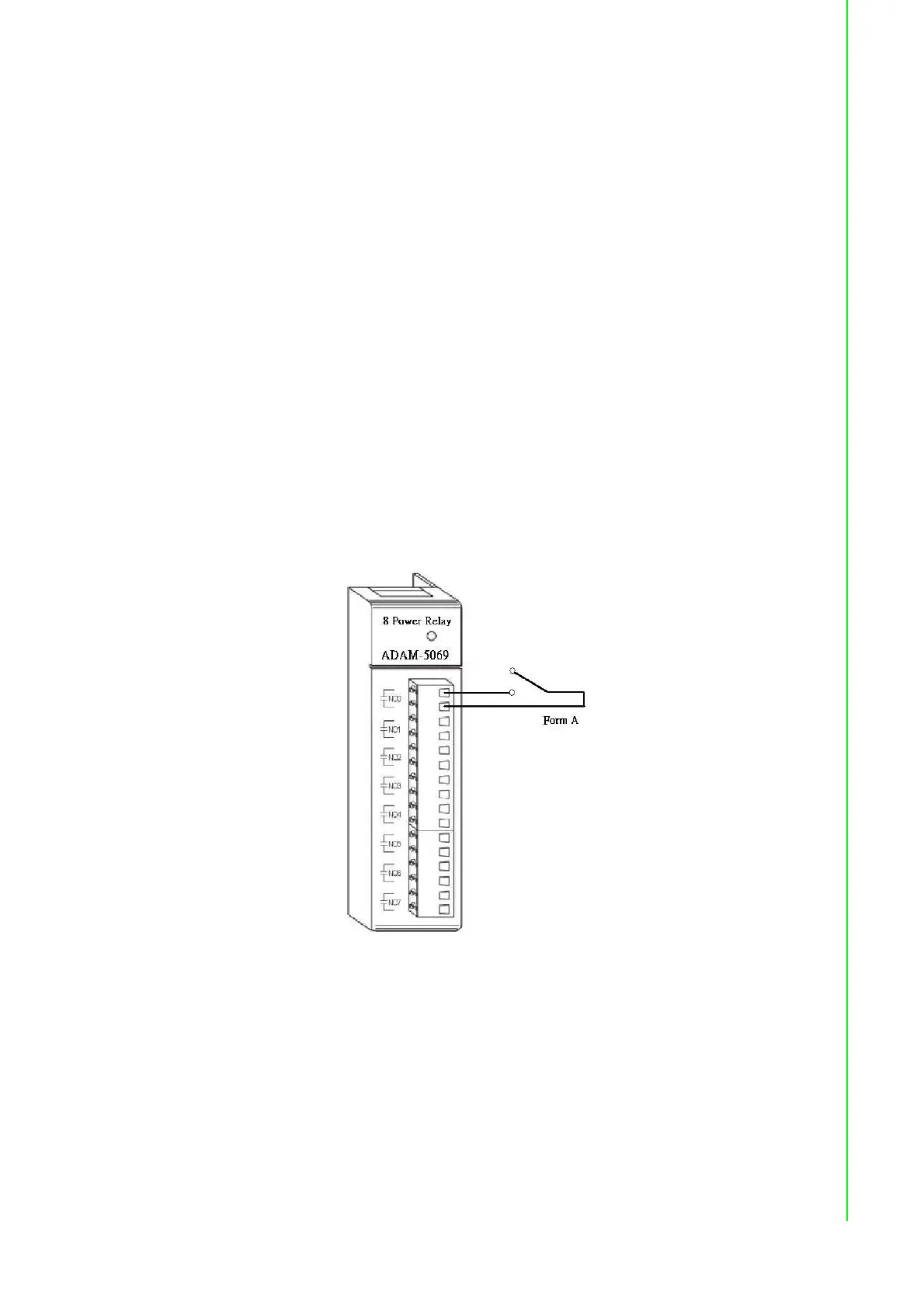

Figure 5.3 ADAM-5069 Module Front View Wiring
