ADAM-5000 Series User Manual 14

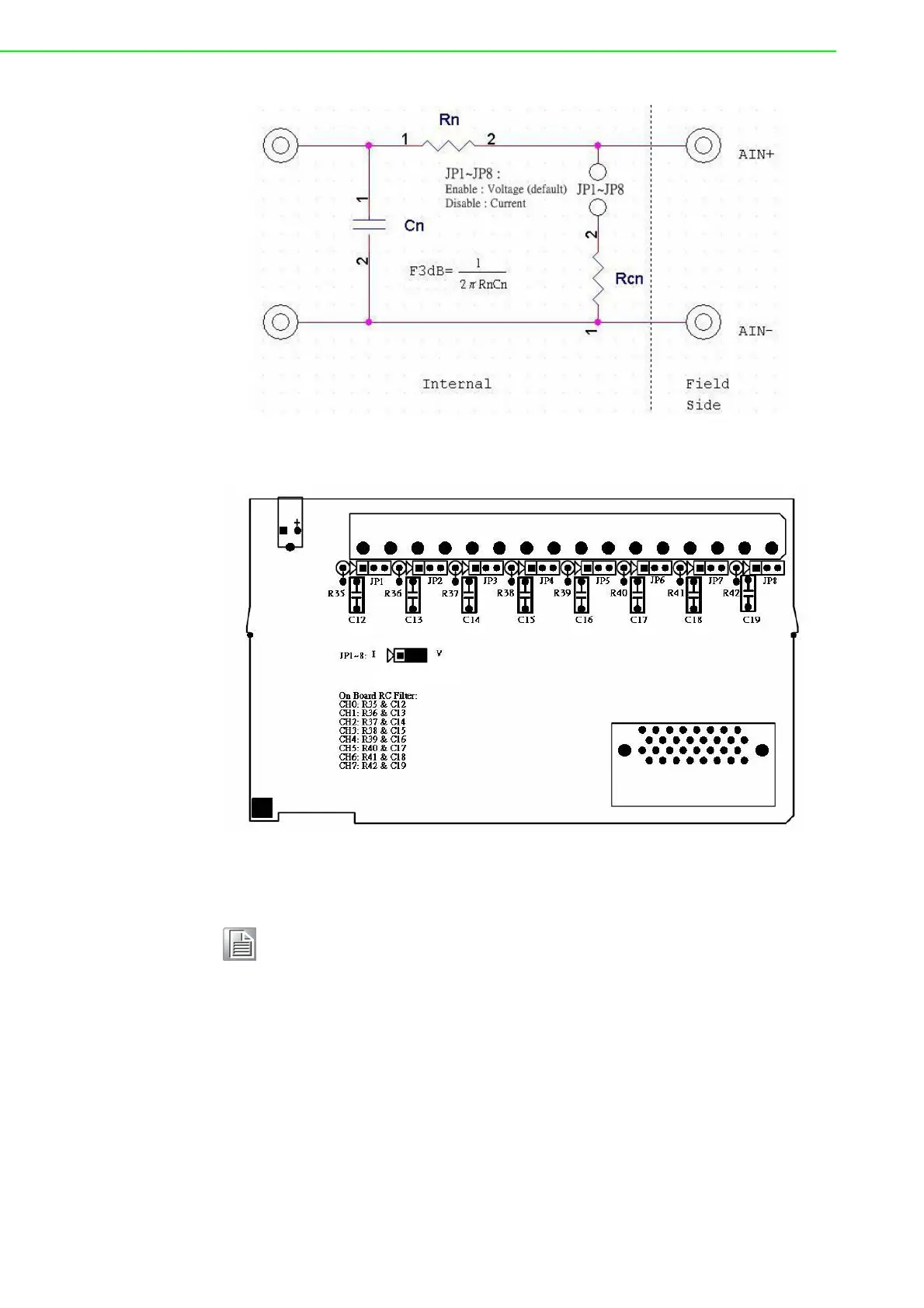

Figure 1.19 Locations of RC Filter Jumper Setting
Figure 1.20 Locations of RC Filter Jumper Setting
Note! To maintain measurement accuracy please short channels not in use.
