33 ADAM-5000 Series User Manual
Chapter 4 Digital Input
/
Output Modules
Application Wiring

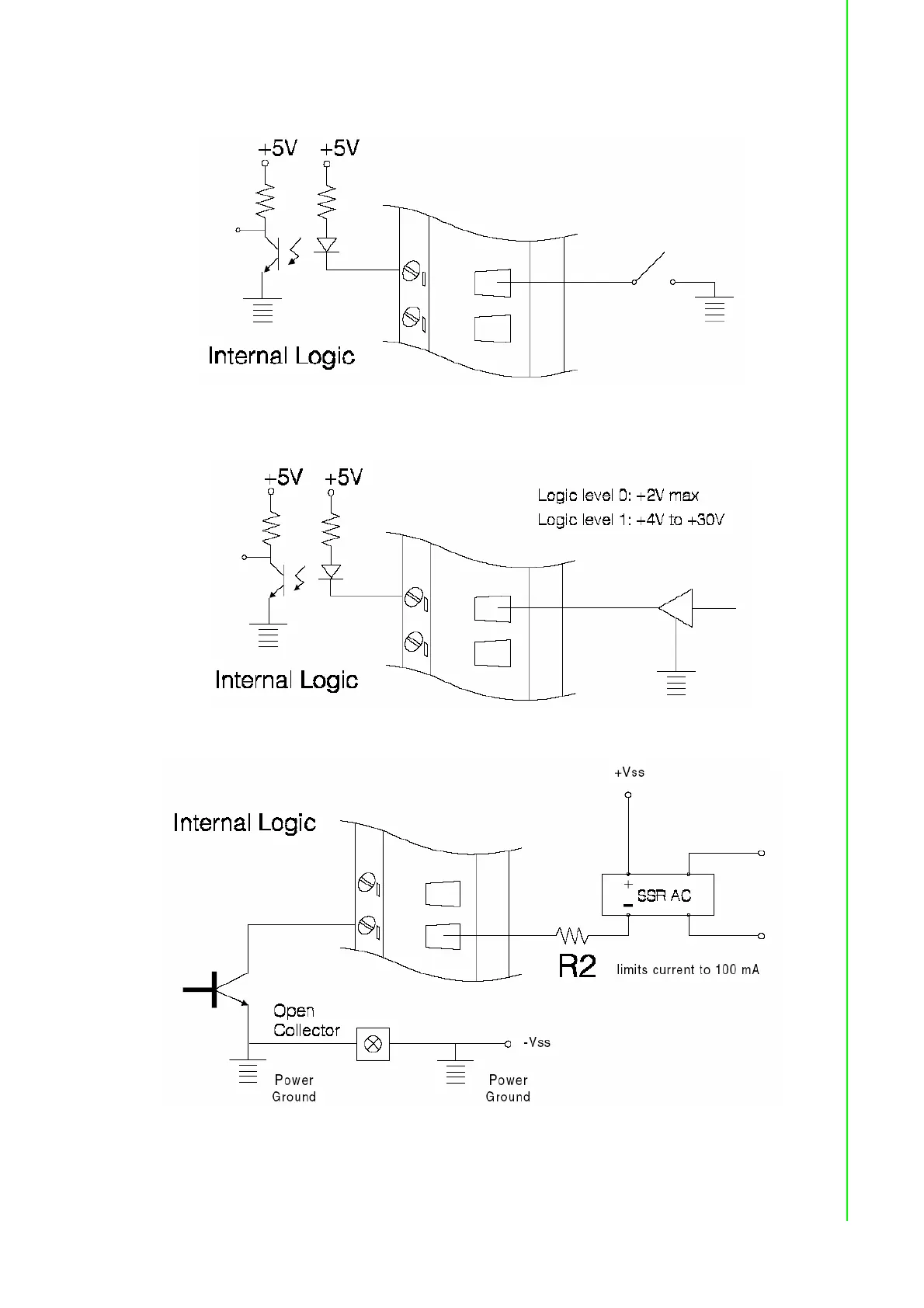

Figure 4.3 Dry Contact Signal Input (ADAM-5050)
Figure 4.4 Wet Contact Signal Input (ADAM-5050)
Figure 4.5 Digital Output with SSR (ADAM-5050/5056)
