9 ARK-1122 User Manual
Chapter 2 Hardware installation
Generally, you simply need a standard cable to make most connections.

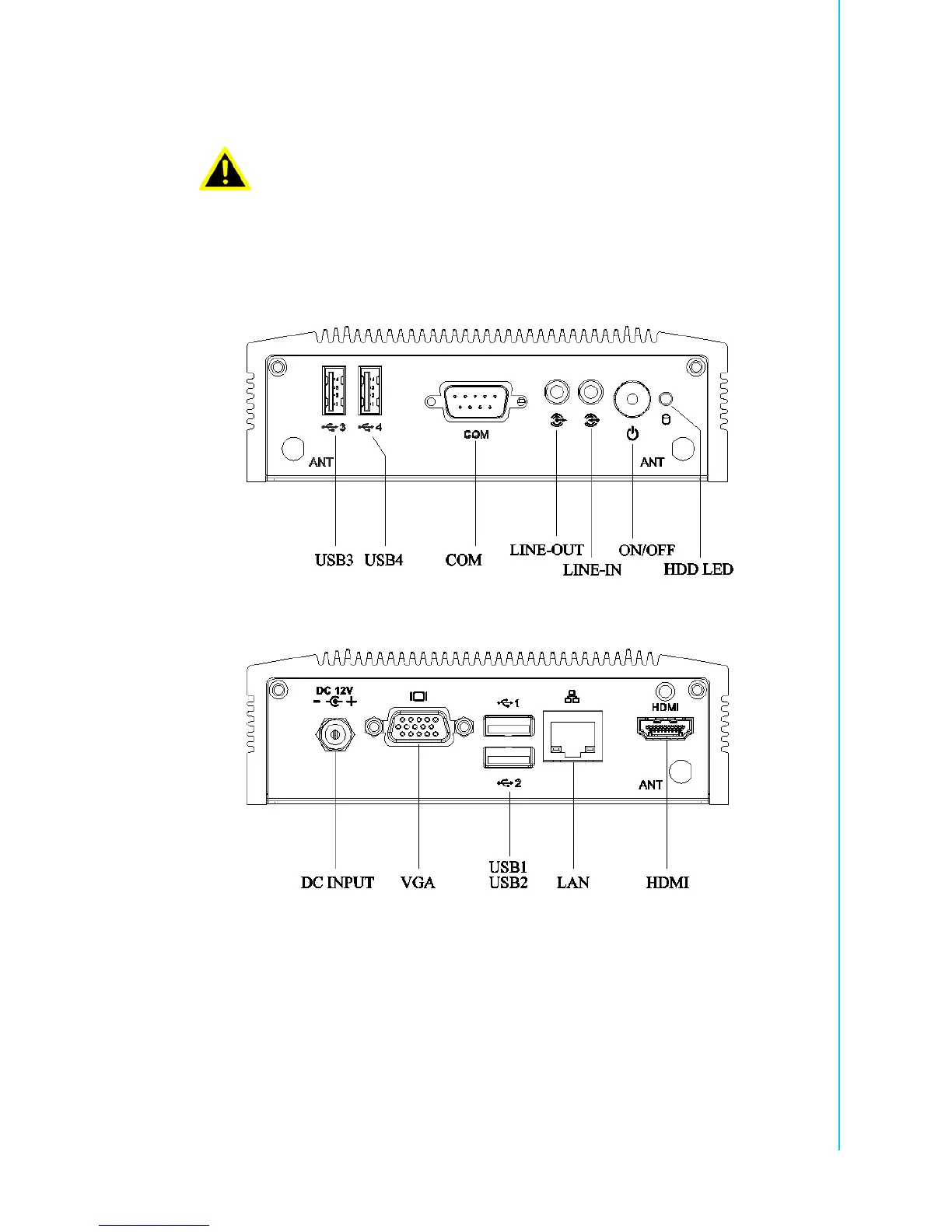

2.3 ARK-1122 I/O Indication
ARK-1122H
Figure 2.1 ARK-1122H front view
Figure 2.2 ARK-1122H rear view
Warning! To avoid damaging the computer, always turn off the power supply
before setting jumpers or clearing CMOS. Before turning on the power
supply, make sure CMOS jumper is back to 3.0 V Battery On.
