25 ARK-1122 User Manual
Chapter 2 Hardware installation

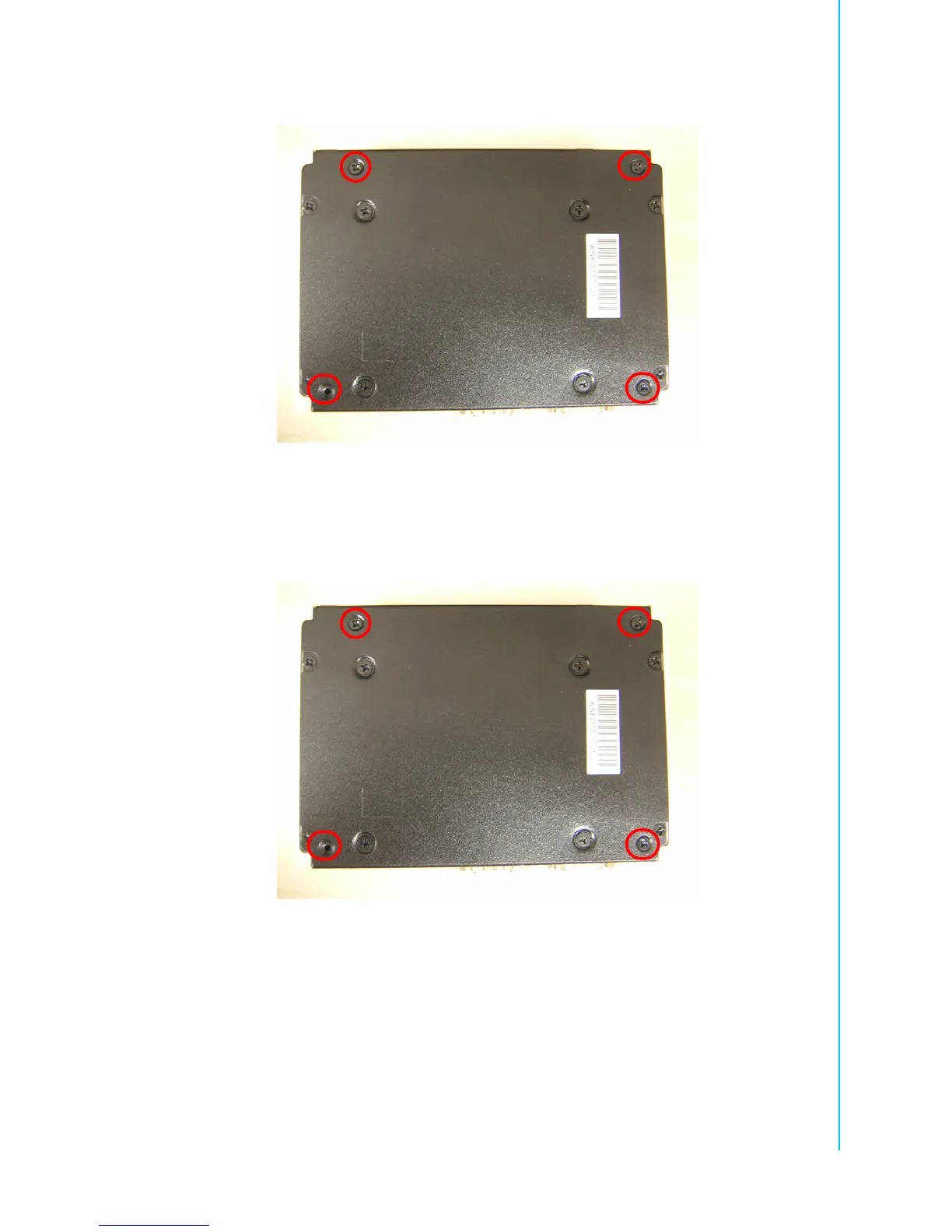

5. Secure the bottom cover in its original position.
2.7.2 mSATA Storage Installation
** Below installation is for ARK-1122H & ARK-1122C only. For ARK-1122F, we
suggest to install by CTOS due to complex installation
1. Unscrew the bottom cover screws.
