3.2.2.6 Super IO Configuration

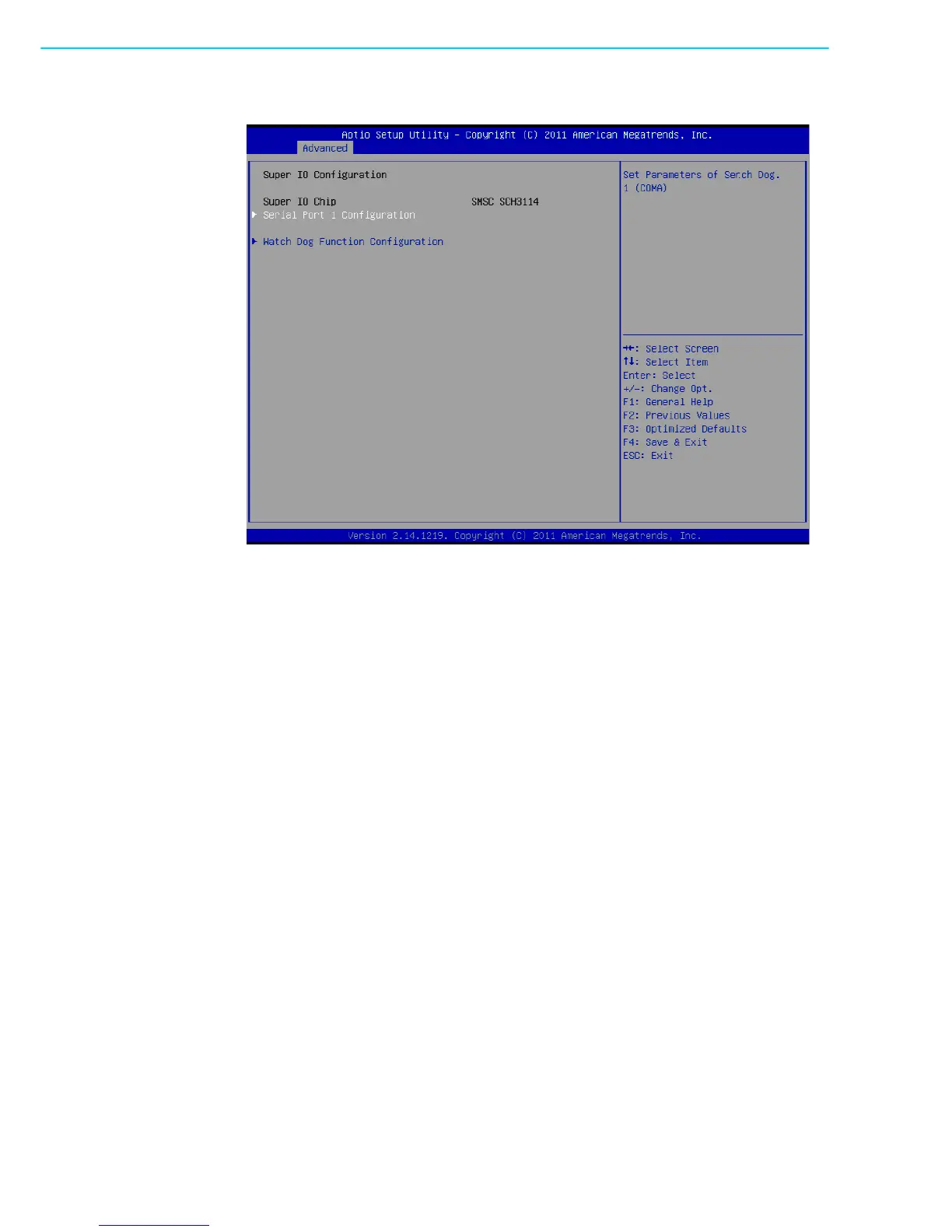

Figure 3.9 Super IO Configuration
 Serial Port 1 configuration
This item allows you to select serial port1 configuration.
 Serial Port 2 - 4 configuration (ARK-1122C only)
This item allows you to select serial port 2 ~ 4 configuration. Serial port3 and
port4 can be set as RS-232/RS-422/RS-485. The default setting is RS-232.
 WatchDog function
This item allows you to enable WatchDog function, in minutes or seconds.
