15 ARK-1122 User Manual
Chapter 2 Hardware installation
2.4.8 HDMI Connector
An integrated, 19-pin receptacle connector HDMI Type A Interface is provided. The
HDMI link supports resolutions up to 1920x1200 @ 60 Hz.

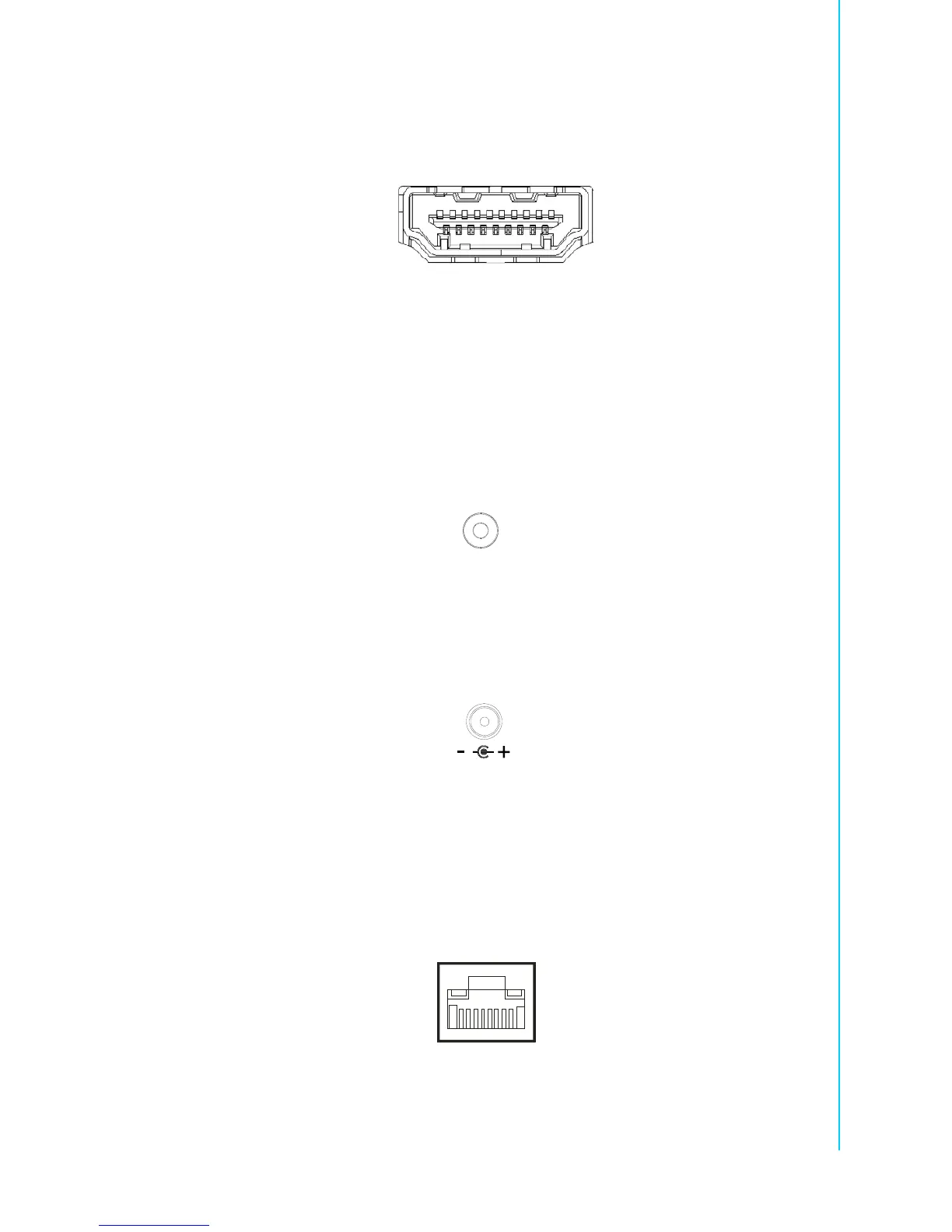

Figure 2.14 HDMI Connector
2.5 ARK-1122C External I/O Connectors
2.5.1 Power ON/OFF Button
ARK-1122C comes with a Power On/Off button with LED indicators on the front side
to show its On status (Green LED) and Off/Suspend status (Orange LED). Dual func-
tions of Soft Power -On/Off (Instant off or Delay 4 Seconds), and Suspend are sup-
ported.
Figure 2.15 Power ON/OFF Button
2.5.2 Power Input Connector
ARK-1122C comes with a DC-Jack header that carries 12 VDC external power input.
The bracket makes the power connector very secure.
Figure 2.16 Power Input Connector
2.5.3 Ethernet Connector (LAN)
ARK-1122C provides one RJ45 LAN interface connector which is fully compliant with
IEEE 802.3u 10/100/1000 Mbps CSMA/CD standards. It is equipped with 82567V
and support Wake on LAN. The Ethernet port uses a standard RJ-45 jack connector
with LED indicators on the front side to show Active/Link status and Speed status.
Figure 2.17 Ethernet Connector
