ARK-1122 User Manual 22
2.6.8 HDMI Connector
An integrated, 19-pin receptacle connector HDMI Type A Interface is provided. The
HDMI link supports resolutions up to 1920 x 1200 @ 60 Hz.

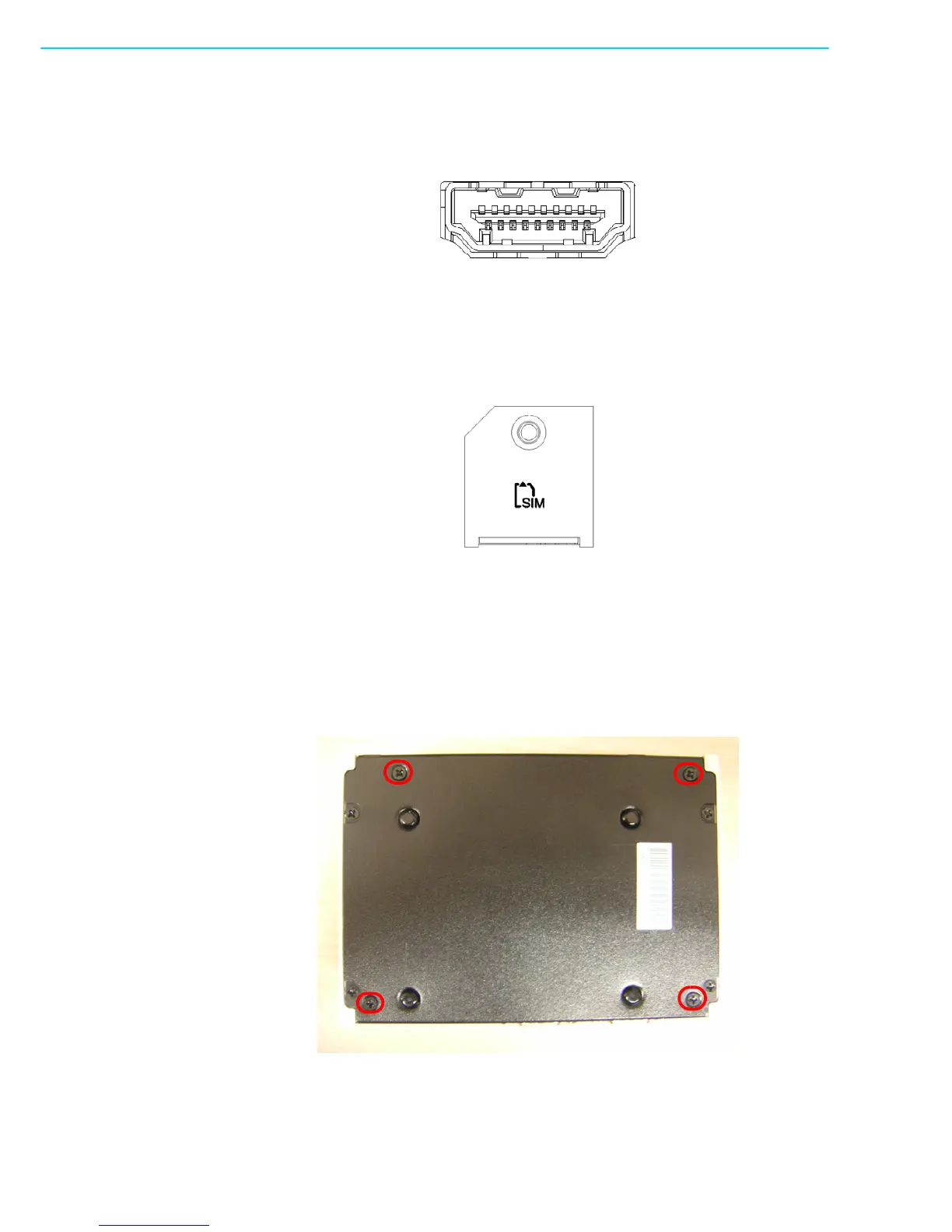

Figure 2.29 HDMI Connector
2.6.9 SIM Card Holder
ARK-1122F provides a SIM card Holder for internet connection.
Figure 2.30 SIM Card Holder
2.7 Peripheral Installation
2.7.1 HDD Installation (ARK-1122H only)
1. Unscrew the bottom cover screws. (marked with "HDD")
