23 ARK-1122 User Manual
Chapter 2 Hardware installation

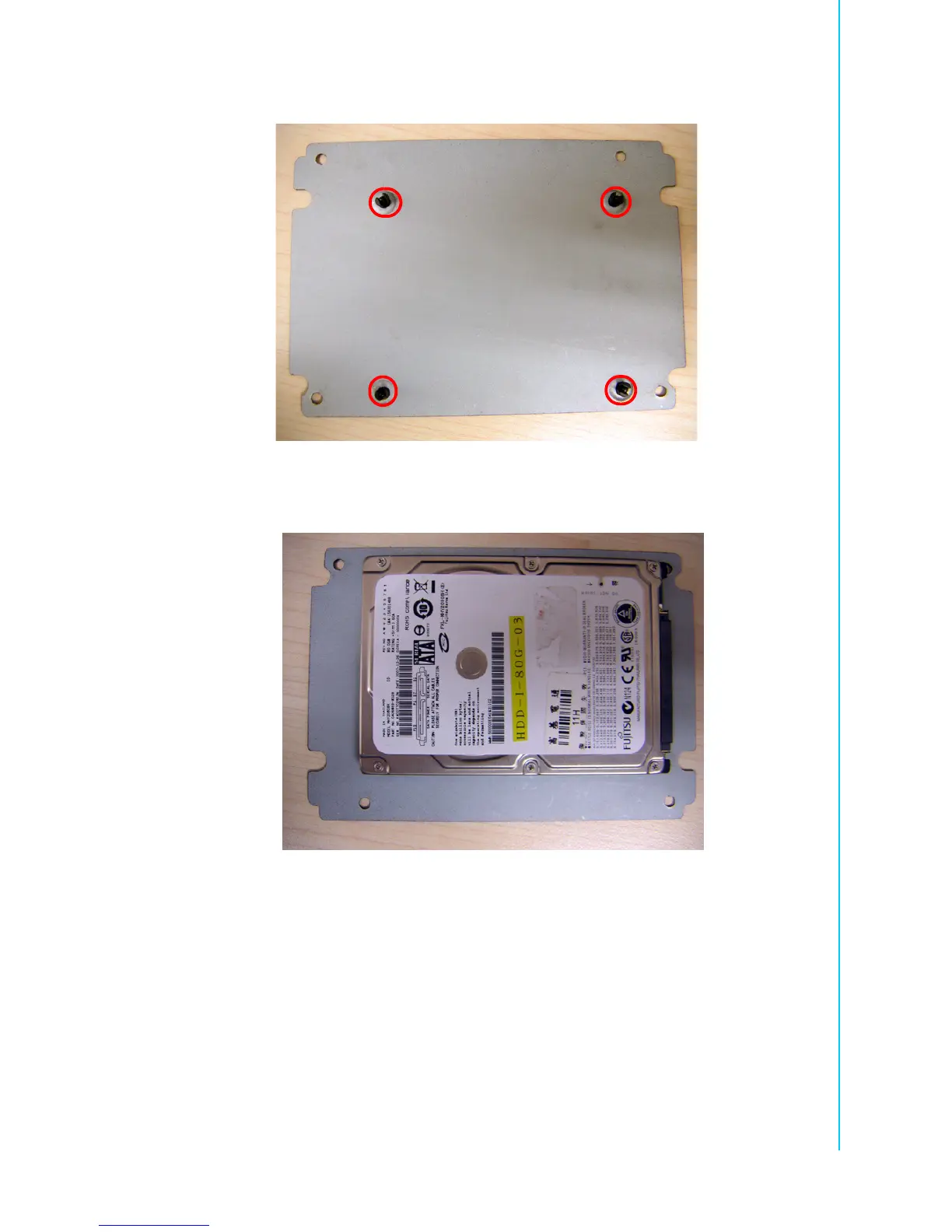

2. Remove the four SNAP RIVETs from the bottom cover.
3. Secure 2.5" SATA HDD onto the bottom cover. The screws are in the accessory
box.
