EKI-1521/1522/1524 User Manual 16
2.3.1.1 Panel/Wall Mounting
The EKI-1521/1522/1524 can be attached to a wall using the included metal brack-
ets. Each bracket comes with four screws; and then you can install the device firmly
via the components, please see the figure as below.

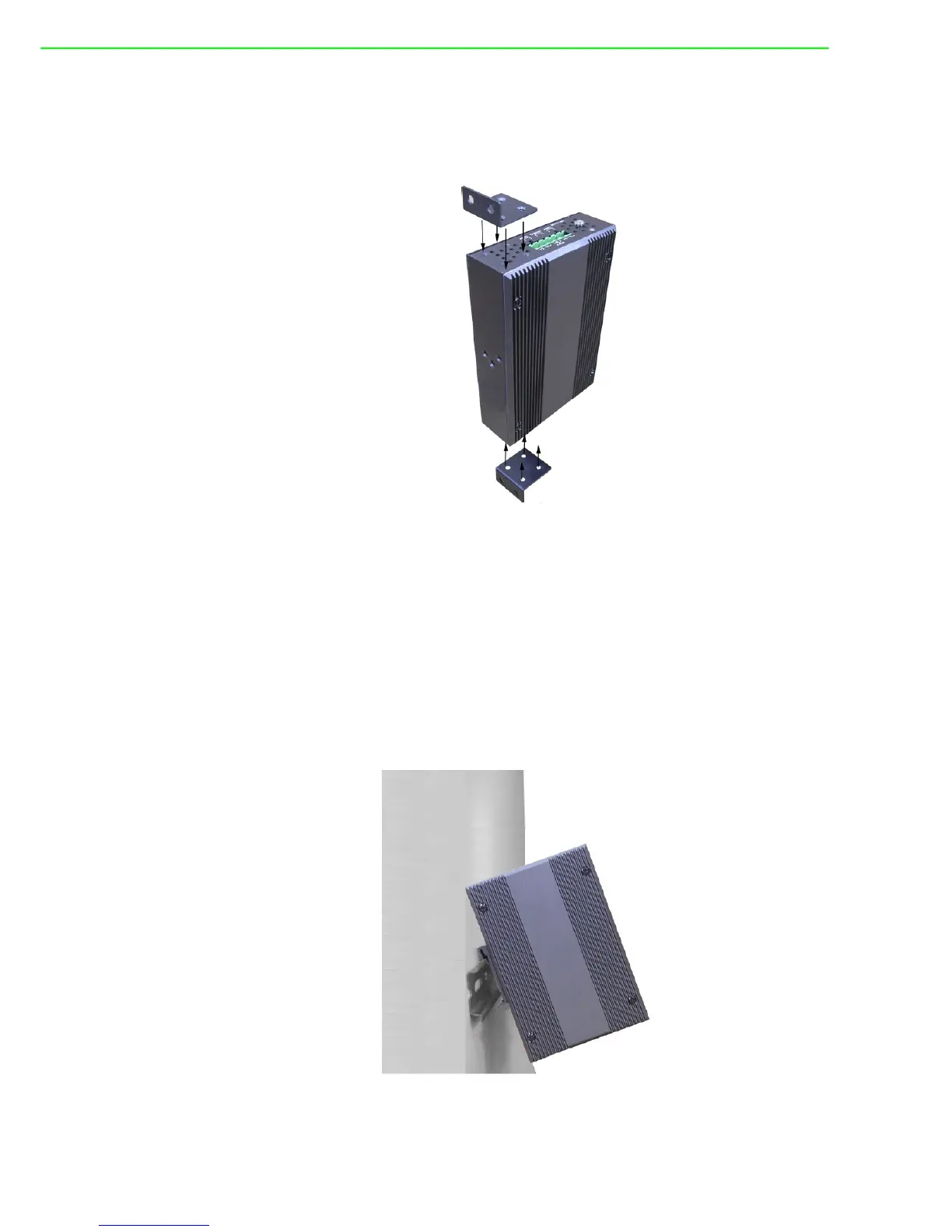

Figure 2.15 Combine the Metal Mounting Kit
2.3.1.2 DIN Rail Mounting
You can mount the EKI-1521/1522/1524 on a standard DIN-rail. The DIN-rail kit is
screwed on the serial device server when out of factory. If the DIN-rail kit is not
screwed on the serial device server, please screw the DIN-rail kit on the serial device
server first.
First, hang the EKI-1521/1522/1524 to the DIN-rail with angle of inclination. See
below figure.
Figure 2.16 DIN-rail Step 1
