Chapter 3 Configuration
3.3 Network Settings
This section explains how to configure the EKI-1500 series network using this utility
so that it can communicate over a network with serial devices.

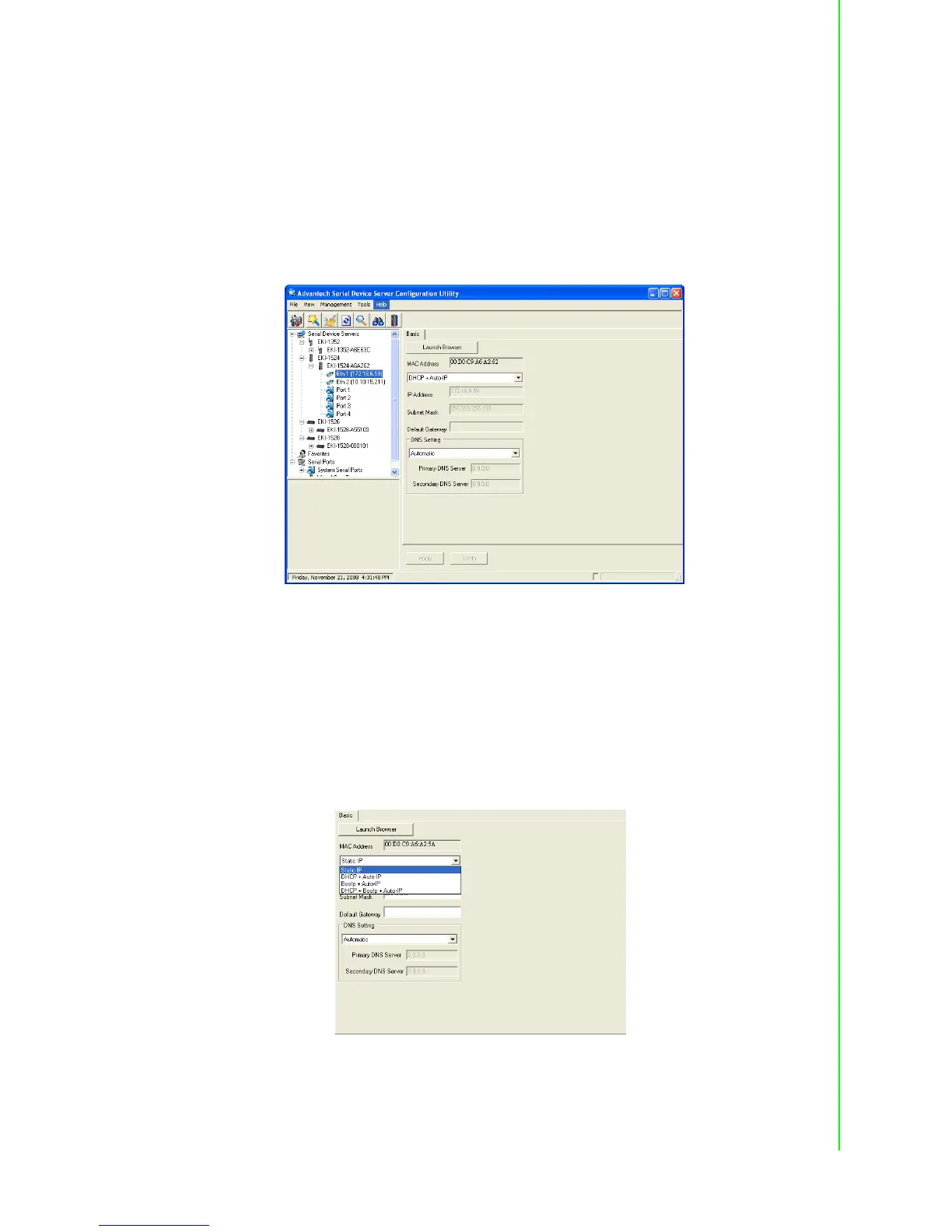

Click on the “+” before the model name (e.g. EKI-1524), and the utility will expand the
tree structure to show the individual device name. And click on the “+” before the
device name, and the utility will expand the interfaces on this device server. Select
the Ethernet interface. (Select Eth1 or Eth2, these are two individual Ethernet ports)
MAC address:
The MAC address is for the local system to identify and locate each serial device
servers. This MAC address is already set before delivery from factory, hence no need
for further configuration.
IP address, Subnet Mask, Default Gateway:
You can choose from four possible IP Configuration modes --- Static, DHCP,
BOOTP, and DHCP/BOOTP.
Static IP
User defined IP address, Subnet Mask, and Default Gateway.
