3 ICAM-500 User Manual
Chapter 1 Product Overview
– 12 mm variable focal length:
FOV 40 x 29.3 mm @ 100 mm working distance
FOV 364.5 x 263.7 @ 900 mm working distance
– 16mm variable focal length:
FOV 33.9 x 25.3 mm @ 100 mm working distance
FOV 305.4 x 228.2 @ 900 mm working distance
– LED illumination
8 x PWM white/red LEDs, programmable
Synchronization:
– Hardware Trigger / software Trigger / free-run
HW ISP
– Color debayering, sharpness, white balance, CCM correction, dark noise cor-
rection (Default enable), Sharpness and brightness
I/O
– 1x USB 3.0, Type-C connector (Only works for Keyboard & mouse. Connect
to USB storage will increase power consumption and heat the system)
– 1x Micro USB for OTG (Only works in engineering mode)
– 1 x Micro SD card slot
– 1x RS485
– 2 x digital Input
– 2 x digital Outputt
LAN
– 1x 10/100/1000 Base-T
Display
– 1x HDMI 2.0
Power Requirements
– 24V
DC
+ 10% Max: 17W, typical 15W

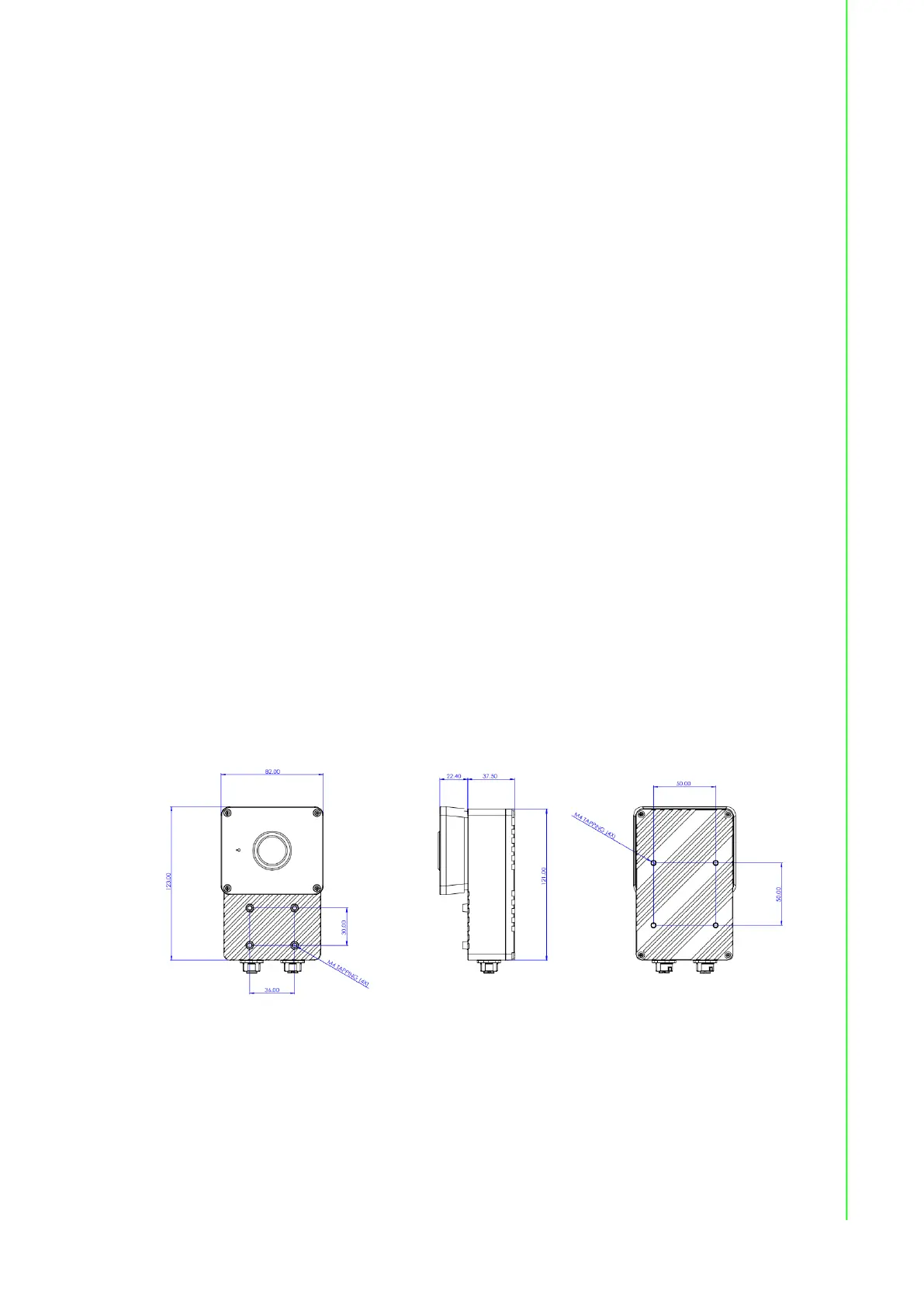

Dimension
– 82mm (W) x 123mm (H) x 59.9mm (D)
Software package
– O.S: Linux Ubuntu 18.04, Jetpack 4.4, Jetpack 4.4 (Mono), Jetpack
4.5.1(Color
– SDK/Utility: CAMNavi SDK, Web based camera utility, IP configure tool,
NVIDIA DeepStream SDK & example
