This chapter describes connection, configuration and start acquisition from ICAM-
500 via host PC.
4.1 Connection an Ethernet Cable

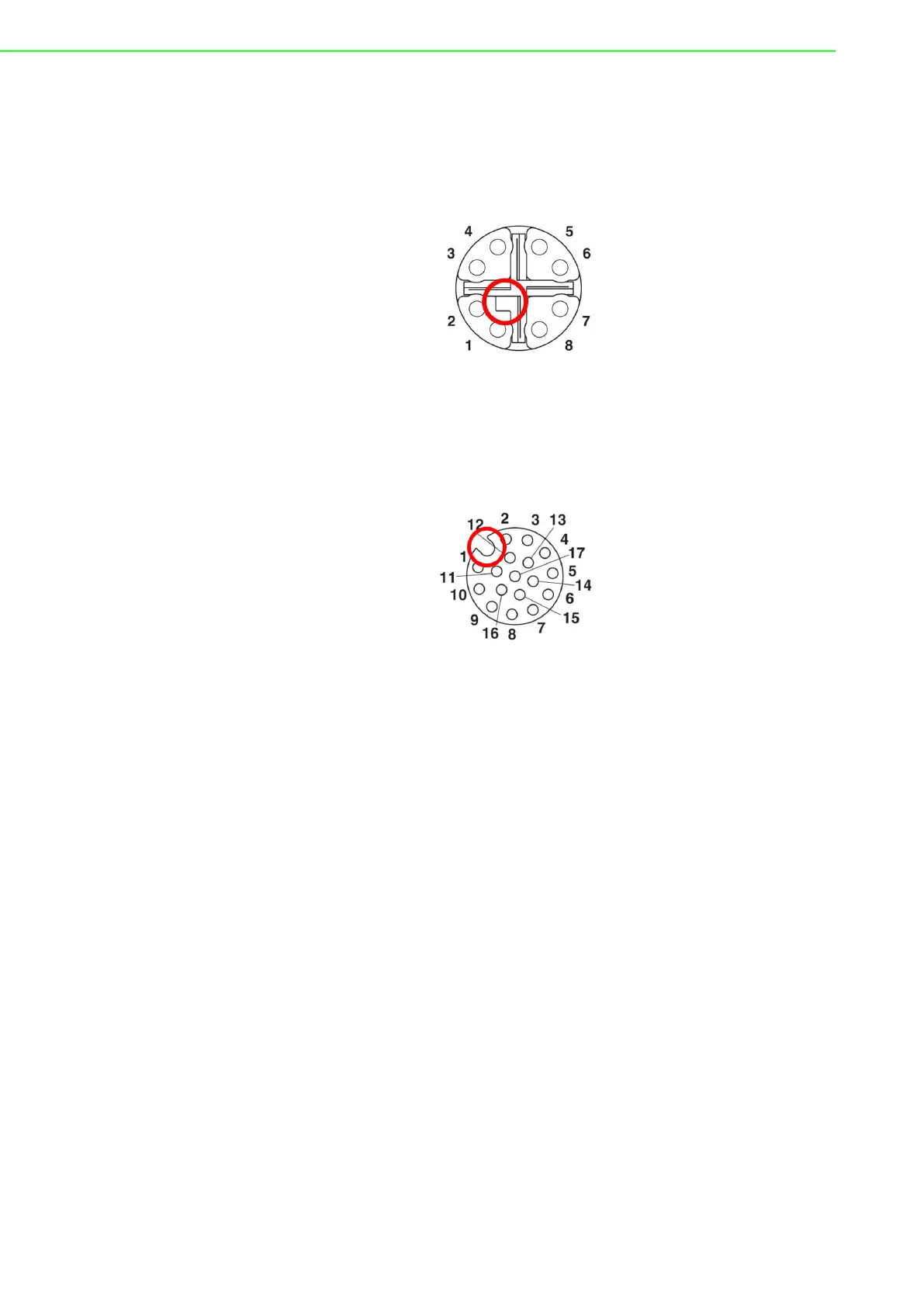

Align the alignment pin (Cable side) with the alignment channel (Device side)
Inset the cable connector and tighten the threaded collar to fix the connection.
4.2 Connect a Power and D I/O Cable
Align the alignment pin (Cable side) with the alignment channel (Device side)
Inset the cable connector and tighten the threaded collar to fix the connection.
Please plugin the power source after the M12 connector feast on the ICAM-500
otherwise that will damage the ICAM-500.
4.3 Discover the ICAM-500
Start to configure the ICAM-500 via Ethernet after installed the ICAM-500. ICAM-500
set DHCP as default, use the IP discover utility of ICAM-500 and connected it via
web browser with the IP address shows on the IP discover in windows 10 OS host
PC. The default IP address of ICAM-500 is 192.168.0.100.
There are two way to access ICAM-500 in the same network domain.
1. Use LINUX command line in LINUX OS host PC.
2. Use IP discover utility in Windows 10 OS host PC
Follow the instruction to access ICAM-500 with host Linux OS PC.
ipcfg configure iCam-500 network settings in Linux command line.
Command location:
/opt/advantech/sdk/bin/ipcfg
Command Parameters:
Help
Show command parameters.
ipcfg –help
