29 ICAM-500 User Manual
Chapter 4 Getting Started

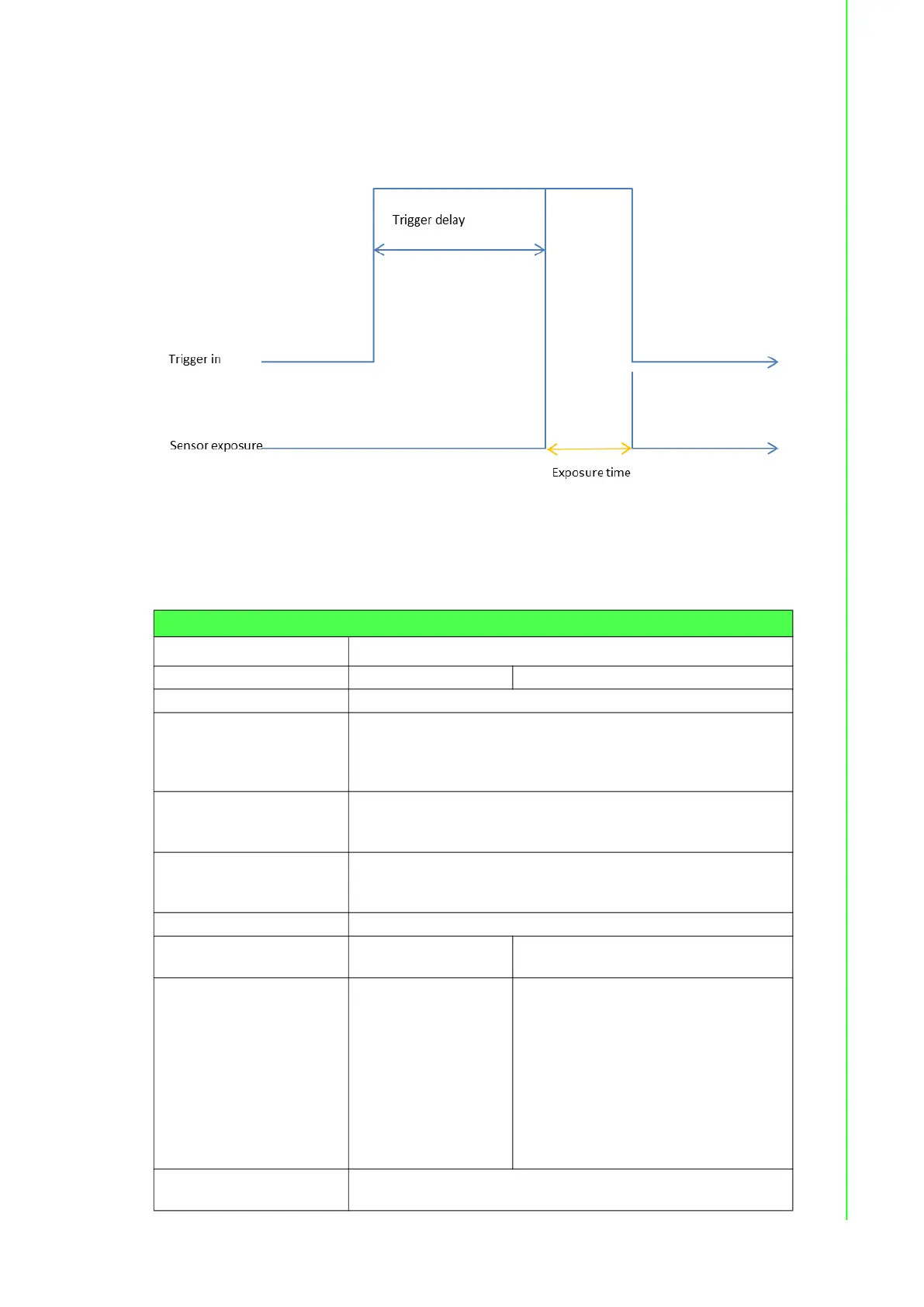

4.5.9 Trigger delay (Pin 16)
The Trigger delay allows user to add a delay between the receipt of a hardware trig-
ger signal and the moment the trigger becomes active.
4.6 ICAM-500 camera parameters and SDK
All the information of the APIs and example please refer to the programming guide.
Table 4.1: Camera parameters
Function Name Parameters
Mono Color
Camera Acq. Settings
Trigger Mode Settings
H/W Trigger Mode
S/W Trigger Mode
Continuous Mode
Frame rate
Focus Settings
Focus Step Distance
Zoom + / -
Reset to zero position
Lighting Settings
LED Control and the LED
mode
Flash LED
Mode (0~7) Gain (0~25)
ISP Settings
Pixel Format GRAY 8
YUV
RGBA
Image Adjustments
Brightness (0-255)
Sharpness (0-100)
Gama (0-400)
Mirror X
Color HUE (0~255)
Color Saturation (0~255)
CCM
Gain00, Gain10 and Gain20 R channel.
(-4096~4096)
Gain01, Gain11 and Gain21 G channel.
(-4096~4096)
Gain02, Gain12 and Gain22 B channel.
(-4096~4096)
White balance(1~16376)
Auto Exposure Mode
Exposure time
Range [1,10000]//*100 us
