ICAM-500 User Manual 10

3.1 Introduction

The electrical installation of the ICAM-500 must be carried out by a qualified electri-

cian. Disconnect all electrical components from the power supply when installing the

ICAM-500.

The following sections show the external connectors and pins assignment for appli-

cations.

3.2 External Connector

3.2.1 ICAM-500 Series External I/O Connector

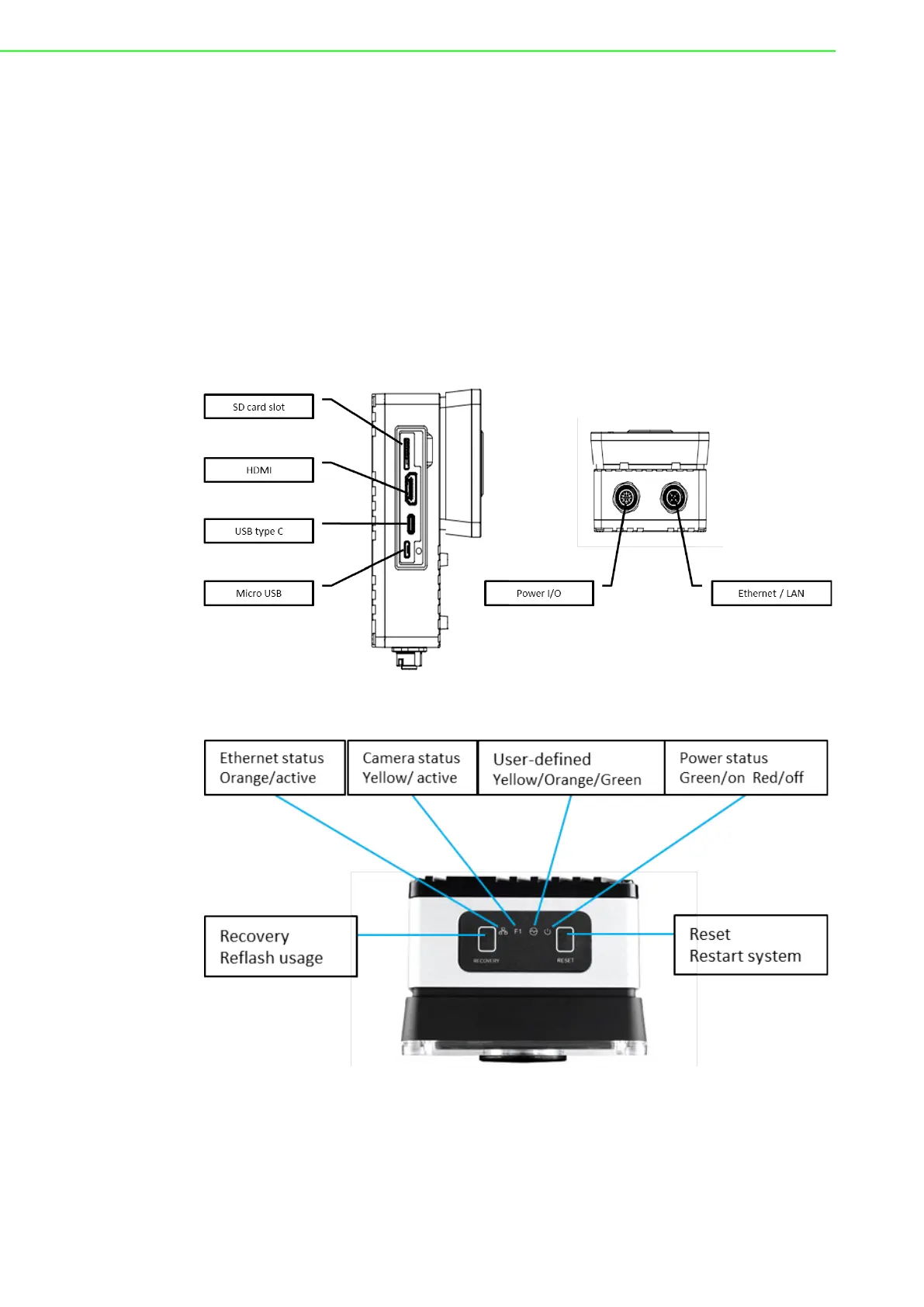

Figure 3.1 ICAM-500 series External I/O Connector
