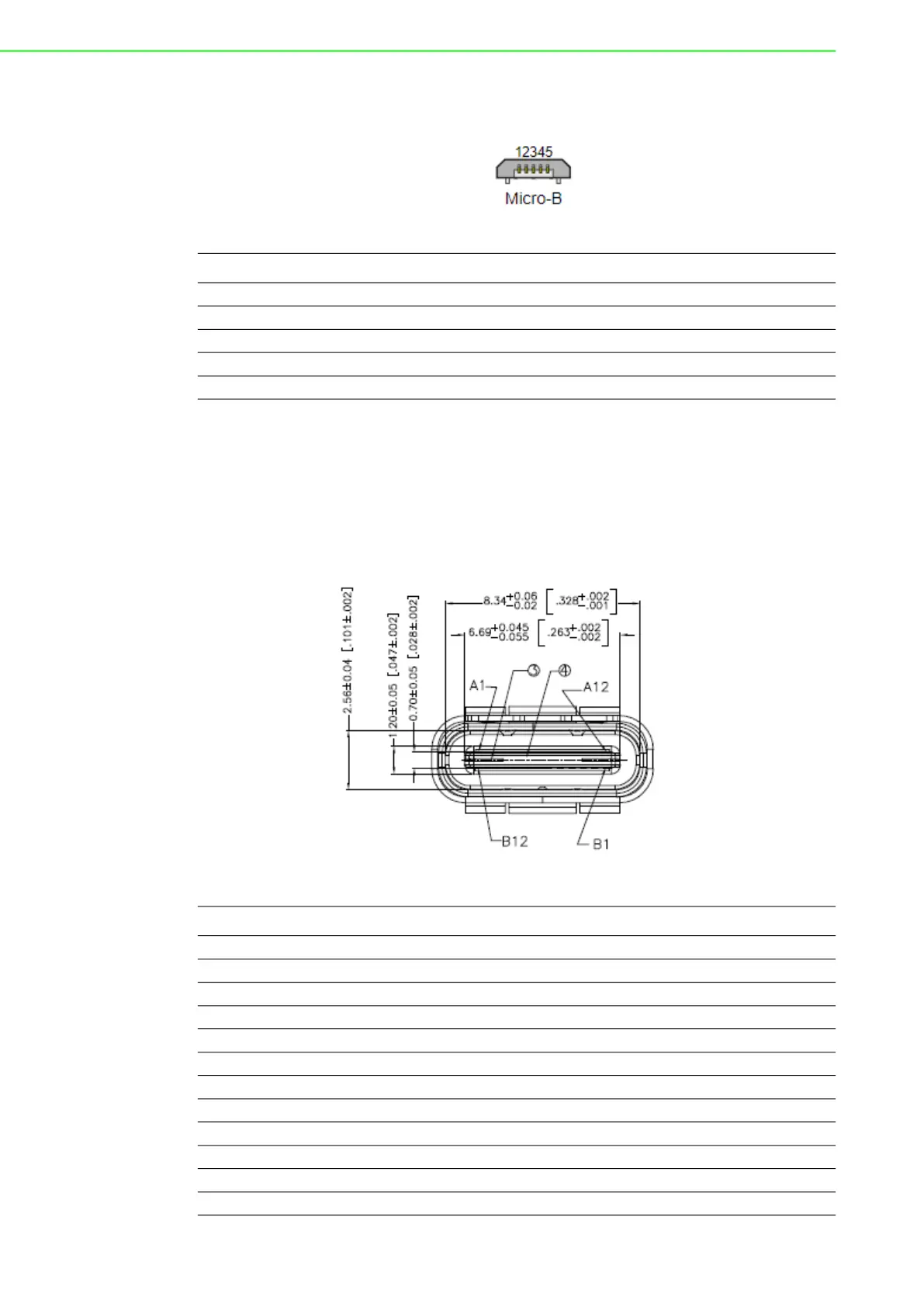

ICAM-500 User Manual 14
3.2.4 Micro USB
3.2.5 USB 3.1
USB type C connector
ICAM-500 provides 1 USB type C interface connector which only for keyboard and
mouse usage. Connect to USB storage will increase the power consumption and will
heat the system. Please refer to the table below for pin assignments.
Pin Signal
1 Vbus (4.4-5.25V)
2 D-
3 D+
4 ID
5 GND
Pin No. Signal Pin No. Signal
A1 GND B1 GND
A2 SSTXp1 B2 SSTXp1
A3 SSTXn1 B3 SSTXn1
A4 VBUS B4 VBUS
A5 CC1 B5 SBU2
A6 Dp1 B6 Dn2
A7 Dn1 B7 Dp2
A8 SBU1 B8 CC2
A9 VBUS B9 VBUS
A10 SSRXn2 B10 SSTXn2
A11 SSRXp2 B11 SSTXp2
A12 GND B12 GND
