ICAM-520/500 User Manual 2
1.1 Introduction
Advantech ICAM-500 series is a highly integrated Industrial AI Camera equipped
with programmable variable focus lenses, LED illumination, SONY industrial grade
image sensor, multiple core ARM processors and NVIDIA AI system on module.
Equipped with varifocal lens and LED illumination, Advantech ICAM-500 reduces
installation and maintenance effort significantly. Featuring CAMNavi SDK, Google
Chromium web browser utility and NVIDIA Deepstream SDK, ICAM-500 series accel-
erates the development and deployment of cloud-to-edge vision AI applications. The
CAMNavi SDK uses Python language by default and is better adapted to image
acquisition and AI algorithm integration. Meanwhile the HTML 5 web based utility can
be used to setup the cameras and network configuration to lower the installation
effort. The preloaded, optimized Jetpack board support package seamlessly con-
nects to AI cloud services. Advantech ICAM-500 series is an all-in-one, compact and
rugged industrial AI camera and is ideal for a variety of Edge AI vision applications.
1.2 Product Features
1.6MP 60 FPS, SONY industrial grade sensor
Programmable Variable focus lens
Advanced LEDs illumination
NVIDIA Jetson AI system on module
HW ISP no GPU/CPU workload
1.3 Product Features
Sensor: SONY IMX296, 1.6MP@60fps, 1/2.9”, pixel size (3.45 x 3.45 μm)
global shutter, monochrome / color

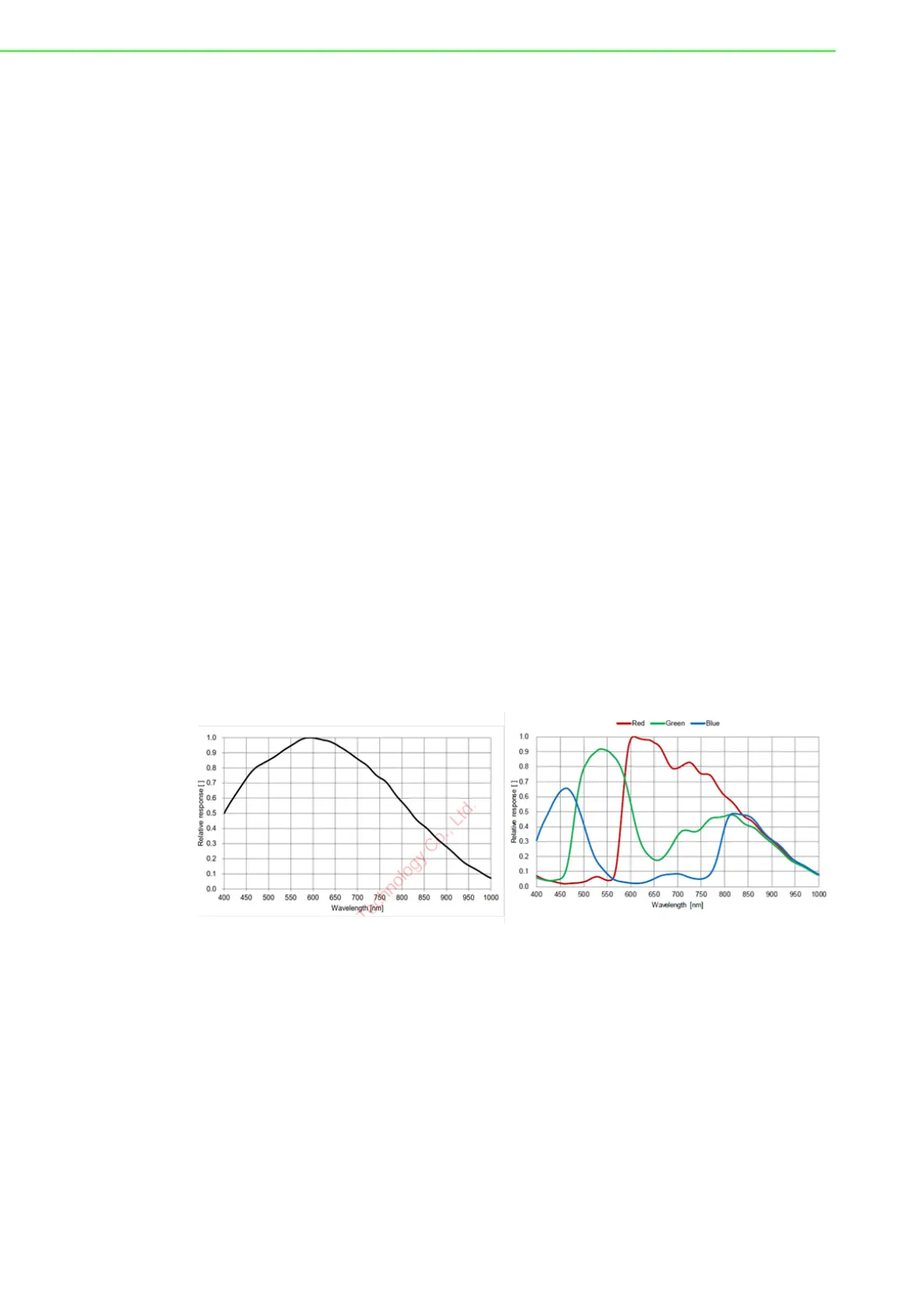

Figure 1.1 Spectrum response (nm)
Processor system
– ICAM-520:
NVIDIA Xavier NX 6-core NVIDA Camel ARM® v8.2 64-bit
CPU 6MB L2 + 4MB l3 (Max. operating frequency: 1.9GHz
GPU: 384-core NVIDIA Volta GPU with 48 Tensor
– ICAM-500
NVIDIA Jetson Nano
CPU: Quad Core ARM Cortex A57 (Max. operating frequency: 1.43GHz)
GPU: Maxwell GPU, 128 CUDA core, performance up to 512 GFLOPS
(FP16)
