25 ICAM-500 User Manual
Chapter 4 Getting Started
2. Find corresponding R/G/B channel in Balance Ratio Selector. Here we take
Green as an example.
3. Find camera’s R/G/B value.
4. Take Green as correction standard, and manually adjust other two channels (R
channel and B channel) to let these three channels have same value.
**** Here we take Green as an example. For specific Balance Ratio Selector value,
please refer to the actual condition. In order to avoid repeated correction after reboot-
ing the camera, it is recommended to save white balance parameter to User Set after
white balance correction. You can refer to the Section Save and Load User Set for
details. If the light source and color temperature in environment change, you need to
correct white balance again.

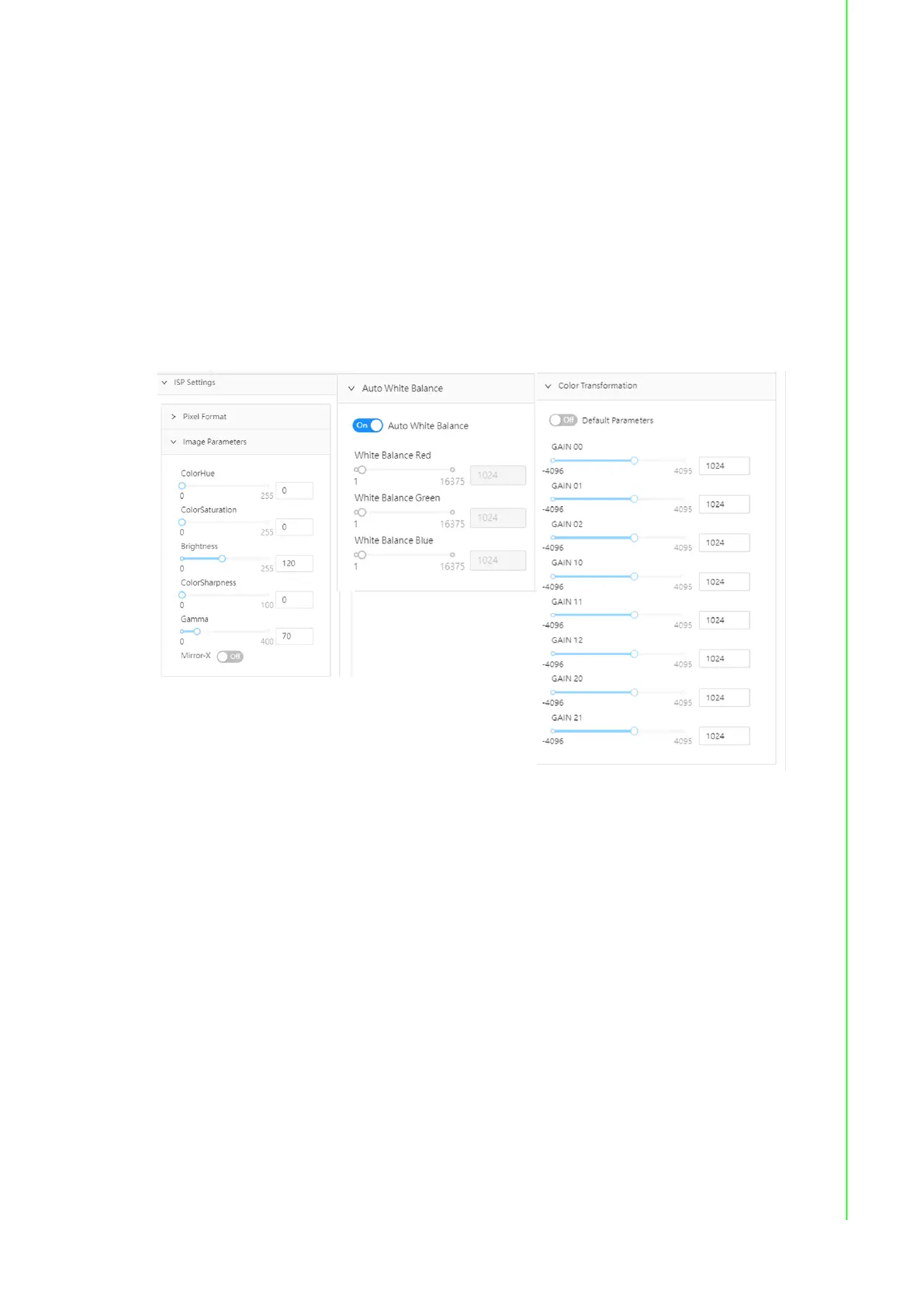

Figure 4.10 ISP Setting of Color Version
