Expansion IO
Advantech LNC Technology Co., Ltd. 25
Advantech-LNC

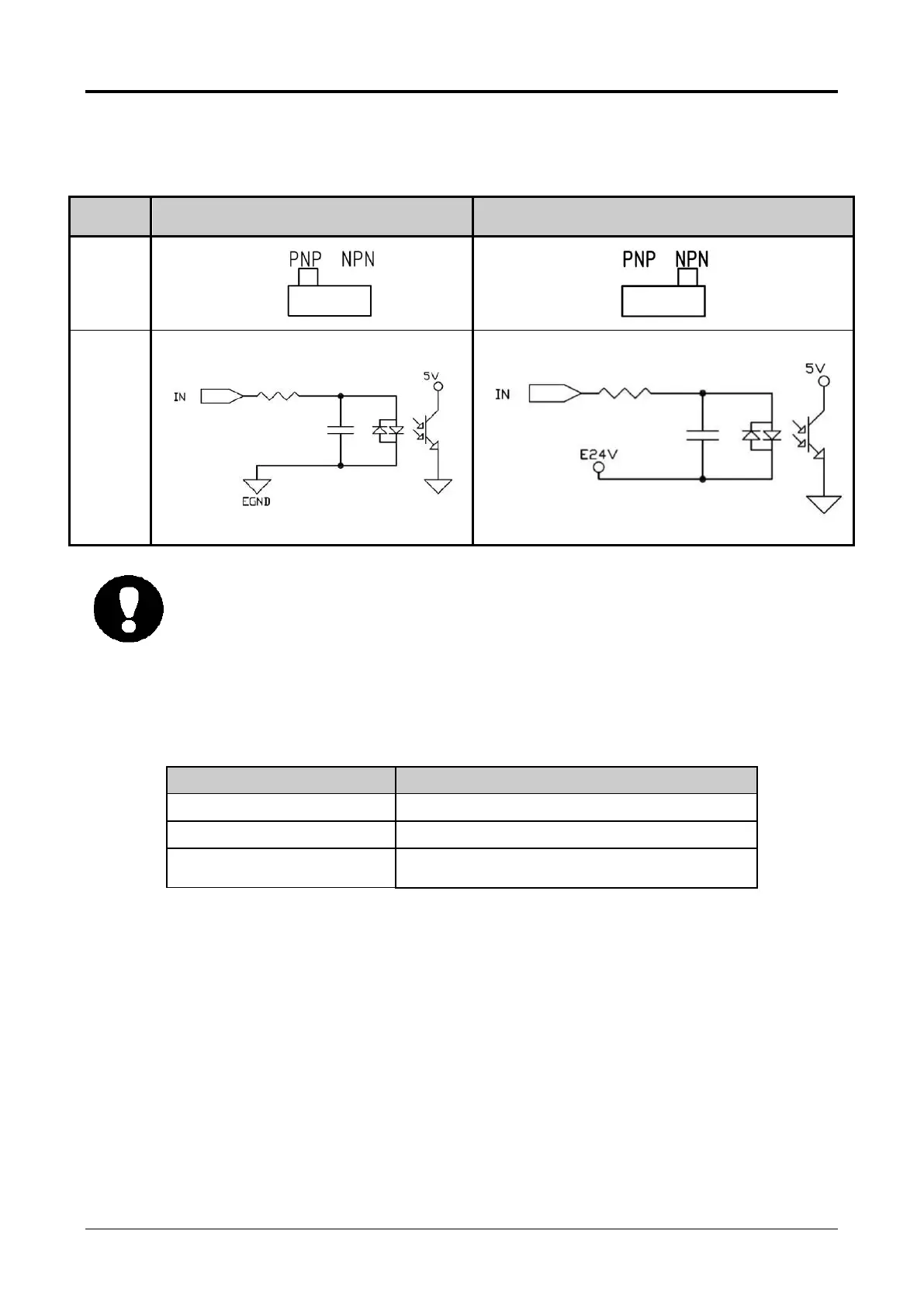

(3) Digital Input (DI) and mode switch
◎ Description: Provide 22 DI (with LED indicators) and mode setting.
Setting
PNP mode
NPN mode
Slide
switch
DI
Circuits
 In order to prevent the destruction of electronic components, please turn off E24V power when
setting DI mode.
(4) Digital Output (DO)
◎ Description: 16 DO with LED indicators.
◎ Output specifications:
Parameter
Values
Output Current
Max. 1.5A/Point
Output Type
Sink Type
Response Time
≦2.58ms
(depends on communication speed)
