Advantech LNC-5800D User Manual

Expansion IO
26 Advantech LNC Technology Co., Ltd.
Advantech-LNC

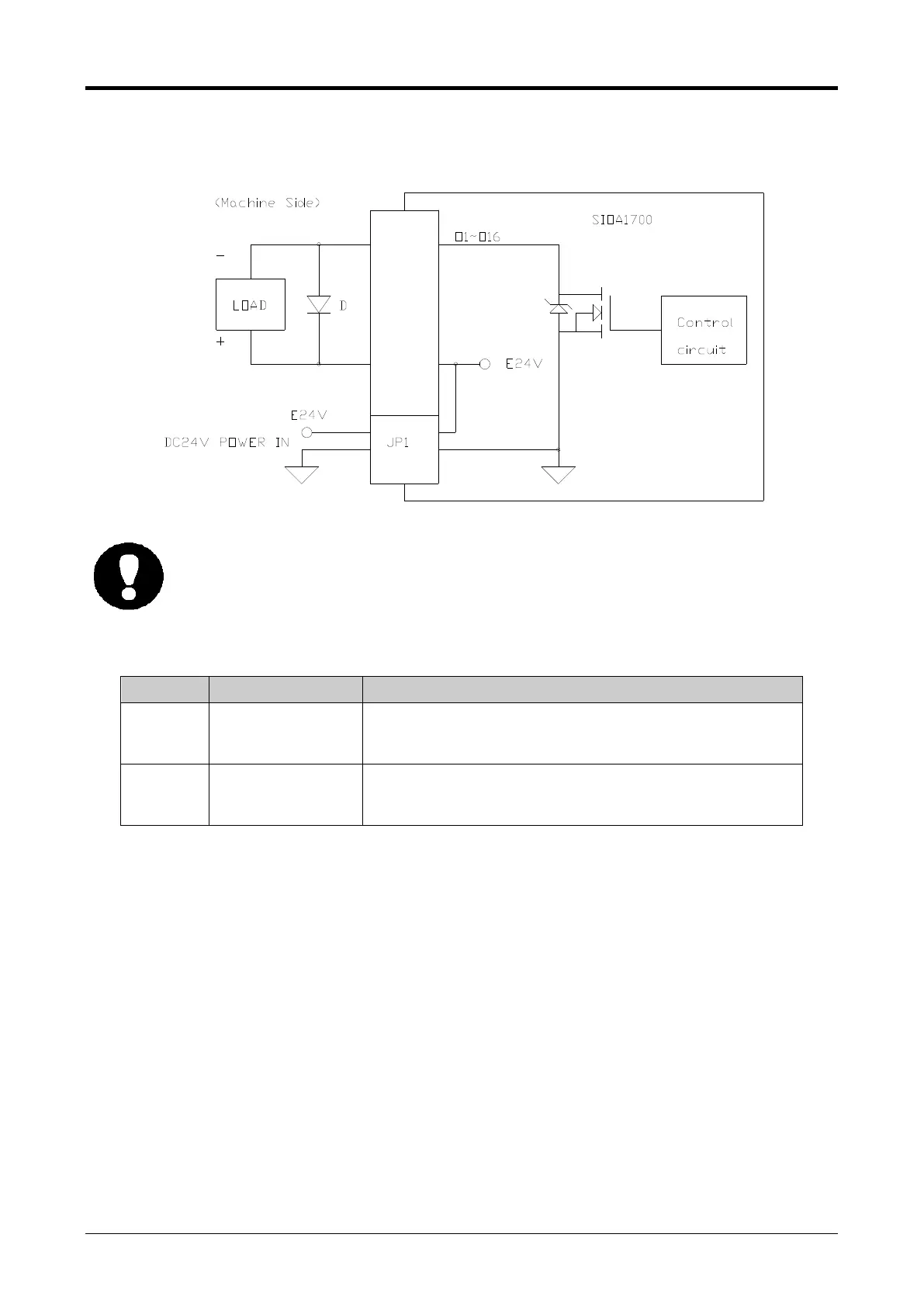

◎ Wiring example:
 Always place a D diode(e.g. 1N4001 diode or equivalent) in parallel to load when driving an
inductive load such as a relay.
 Always place a protection resistor in series to load when driving a capacitive load such as a lamp.
(5) Status LEDs：
◎ Description: Communication status .
Location
Definition
Description
D148
Link
Color：Green
Power ON Status：LED Turns On
Receive CIO Command：LED Blinking
D149
Working
Color：Red
Power ON Status：LED Turns Off
Receive CIO Command assigned to this Unit：LED Blinking
