3.2.2.9 Super IO Configuration
MIC-770 V2 supports 2 x RS-232/422/485 on the front side. MIC-770 has 4
more RS-232 (Serial Port 3, 4, 5, 6) via 2x DB9 cables in accessory box.

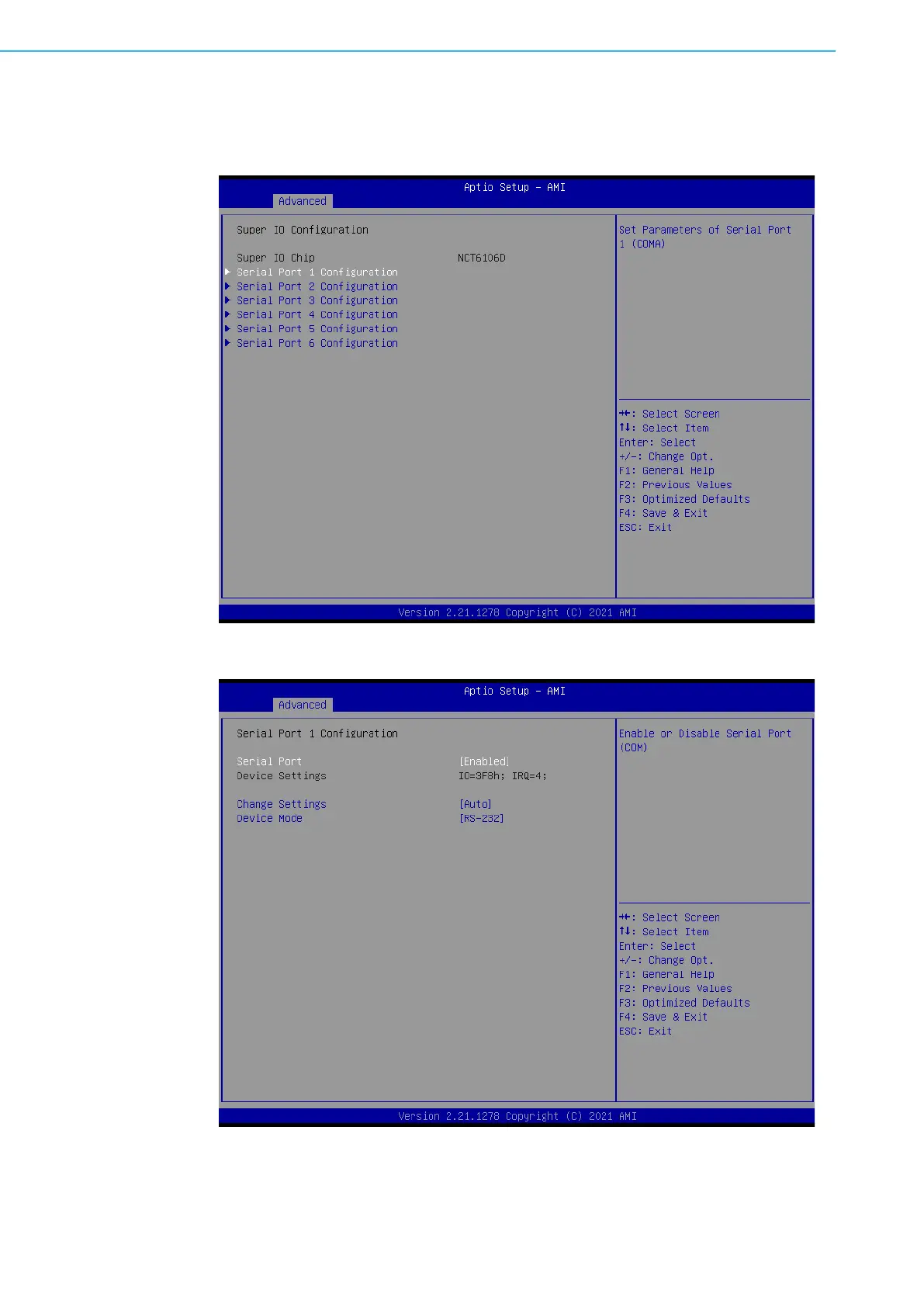

Figure 3.20 Super IO Configuration
Figure 3.21 Serial Port 1 Configuration
